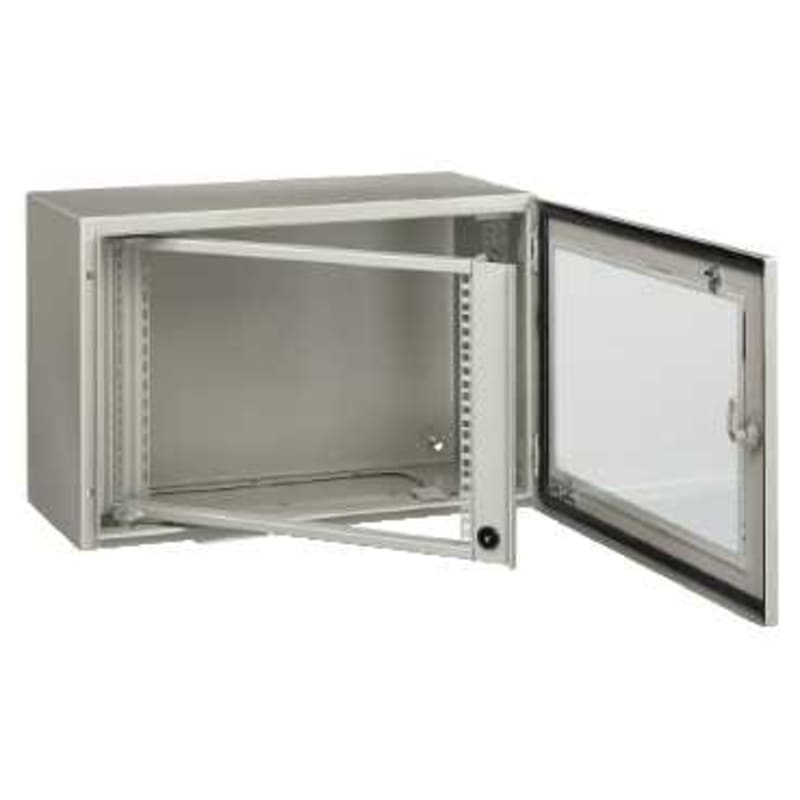

Schneider Electric 19" fixed chassis 12U PanelSeT NSYVDM12UF
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYVDM12UF 19" fixed chassis 12U Spacial".
Technical Specifications
- Manufacturer part number (MPN)
- NSYVDM12UF
- EAN / GTIN
- 3606480174773
- Sales unit
- pcs
- Rack units
- 12U
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Electronic application; Multi-purpose
- For enclosure nominal dimensions
- - H: 600 mm W: 600 mm D: 200 mm; - H: 600 mm W: 600 mm D: 250 mm; - H: 600 mm W: 600 mm D: 300 mm; - H: 600 mm W: 600 mm D: 400 mm
- Rack type
- Fixed
- Mounting location
- Step slide; Front of enclosure
- Range compatibility
- PanelSeT PanelSeT S3D; PanelSeT PanelSeT S3X; PanelSeT PanelSeT VDM; PanelSeT PanelSeT CRN
- Device composition
- fixing elements; 2 19" uprights
- Number of units 19"
- 12
- Material
- Galvanised steel
- Enclosure/cubicle description
- Wall-mounted enclosure
- fixing mode
- By fixing element
- Adjustment
- Adjustable in depth, pitch 12.5 mm, on the step slide
- Colour
- Grey (RAL 7035)
- Permanent permissible load
- 3 kg per unit
- Height
- Nominal: 600 mm
- Width
- Nominal: 600 mm
- Depth
- 700 mm
- thickness
- 2 mm
- Product weight
- 4.36 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Country of origin
- ES
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 600 mm
- Suitable for enclosure building depth
- 200 mm
- Max. load capacity
- 3 kg
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606480174773
- SAP 1000110799
- Code 8608244
Product Documentation
