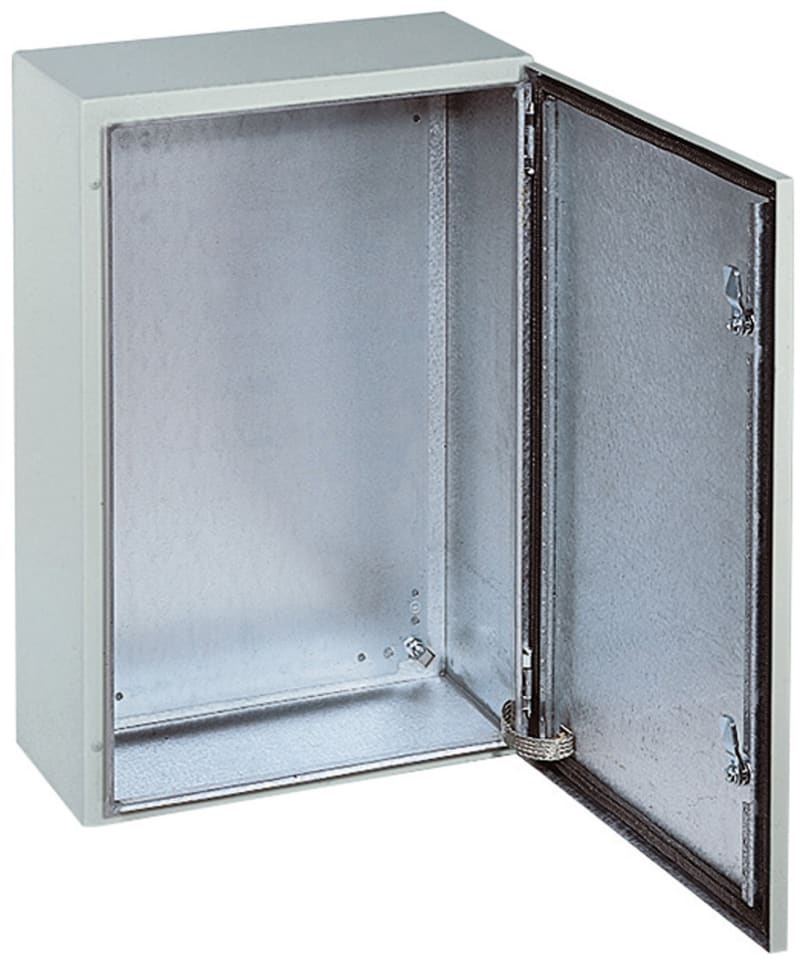

Schneider Electric PanelSeT S3HF H400XW300XD200 EMC-immunity IP55 RAL7035 NSYS3HF4320P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3HF4320P EMC CABINET 400X300X200.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3HF4320P
- EAN / GTIN
- 3606480212840
- Sales unit
- pcs
- Dimensions
- 400×300×200
- Range
- PanelSeT
- Product name
- PanelSeT S3HF
- Application
- Industrial application
- Category
- Compact enclosure
- Enclosure nominal height
- 400 mm
- Enclosure nominal width
- 300 mm
- Enclosure nominal depth
- 200 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door with lock; 1 mounting plate
- body type
- Single piece body
- Number of doors
- Front face: 1 door(s)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Body: aluzinc
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 60529
- Product weight
- 7 kg
- Electromagnetic compatibility
- EMC immunity
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP55
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Width
- 300 mm
- Height
- 400 mm
- Depth
- 200 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480212840
- SAP 1000151129
- Code 8117861
