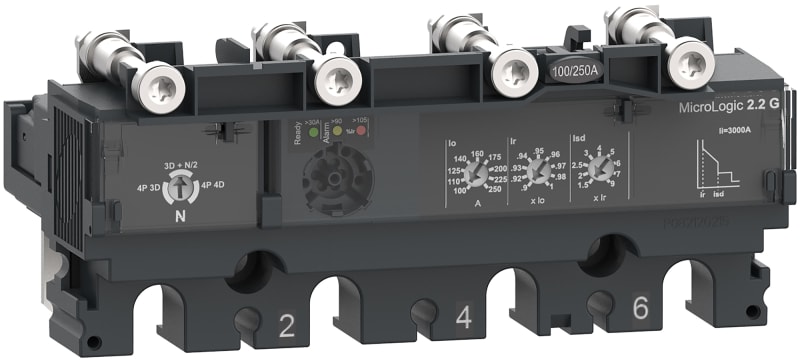

Schneider Electric Trip unit MicroLogic 2.2G, ComPacT NSX160/250, 4 poles, electronic basic protections, generator protection, 160A rating C1642G160
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C1642G160 Electronic generator protection for ComPacT NSX circuit breaker-Micrologic 2.2 G 4P 160A.
Technical Specifications
- Manufacturer part number (MPN)
- C1642G160
- EAN / GTIN
- 3606482000797
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Rated current
- 160 A
- Number of poles
- 4P
- Range
- ComPacT
- Range of product
- ComPacT NSX100...250
- Product or component type
- Trip unit
- Trip unit name
- MicroLogic 2.2 G
- Trip unit technology
- Electronic
- Range compatibility
- ComPacT NSX160; ComPacT NSX250
- Device application
- Generator
- Poles description
- 4P
- Protected poles description
- 3D + N/2; 4D; 3D
- Neutral position
- Left
- Trip unit protection functions
- LSoI
- Protection type
- L : for overload protection (long time); So : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection
- Trip unit rating
- 160 A at 40 °C
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Network type
- AC
- Network frequency
- 50/60 Hz
- Circuit breaker mounting mode
- Fixed
- Long-time pick-up adjustment type Ir (thermal protection)
- Adjustable 9 settings
- [Ir] long-time protection pick-up adjustment range
- 63...160 A
- Long-time protection delay adjustment type tr
- Fixed
- [tr] long-time protection delay adjustment range
- 15 s at 1.5 x Ir; 0.35 s at 7.2 x Ir; 0.5 s at 6 x Ir
- Neutral protection settings
- 0.5 x Ir (3D + N/2); 1 x Ir (4D); No protection (3D)
- Thermal memory
- 20 minutes before and after tripping
- Short-time protection pick-up adjustment type Isd
- Adjustable
- [Isd] Short-time protection pick-up adjustment range
- 1.5...9 x Ir
- Short-time protection delay adjustment type tsd
- Fixed
- Instantaneous protection pick-up adjustment type Ii
- Fixed
- [Ii] instantaneous protection pick-up adjustment range
- 2400 A
- Earth-leakage protection
- Without
- Zone selective interlocking ZSI
- Without
- Local signalling
- Flashing LED (green) for ready to operate; LED 105 % Ir (red) for overload; LED 90 % Ir (orange) for overload
- Standards
- EN/IEC 60947-2
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60947-1
- IP degree of protection
- IP40 conforming to IEC 60529
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
