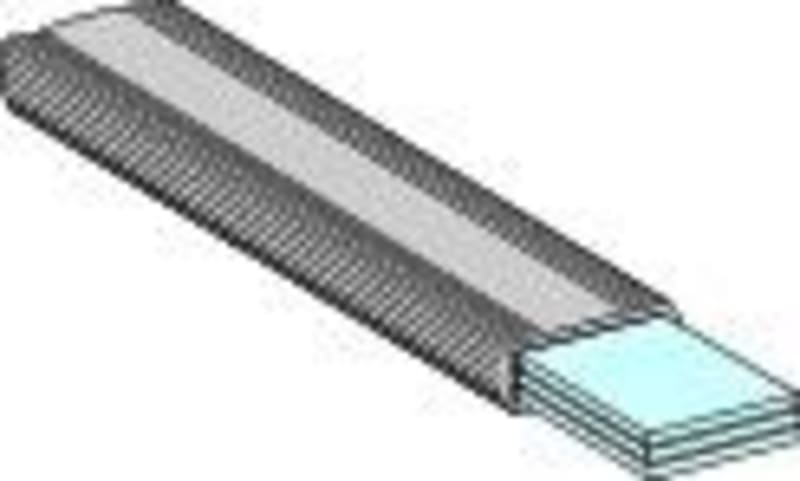

Schneider Electric Insulated flexible bar, 250 A, size 20 x 3 mm, length 1800 mm LVS04743
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04743 Flexisbel rail insulated 250A 20X3mm length 1800mm PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04743
- EAN / GTIN
- 3606481868244
- Sales unit
- pcs
- Rated current
- 250 A
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Insulated flexible bar
- product name
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma iPM L enclosure; PrismaSeT Prisma iPM M enclosure; Linergy Linergy FM device feeder
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy FM distribution block
- installation description
- Cubicle; Floor-standing enclosure; Wall-mounted enclosure
- Installed device
- ComPact: NSX160; ComPact: NSX250; ComPact: INS250; ComPact: INV250; EasyPact: CVS160...250; Linergy FM 200 A
- [Ie] rated operational current
- 250 A
- Busbar cross section
- 20 x 3 mm
- Length
- 1800 mm
- Product weight
- 1.68 kg
- Quantity per set
- Set of 1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 11.500 cm
- Package 1 Length
- 193.000 cm
- Package 1 Weight
- 1.561 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 130
- Package 2 Height
- 34.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 227.930 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 20 mm
- Height
- 3 mm
- Flexible
- Yes
- Rated current In
- 250 A
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 3606481868244
- SAP 1200547141
- Code 82879486
