DIN Rail 35X7,5 F/ KAPS, 200
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYAMRD20357SB DIN rail 35x7,5 f/ kaps, 200.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAMRD20357SB
- EAN / GTIN
- 3606480520709
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Anwendung
- Multi-purpose
- Range
- PanelSeT
- Product or component type
- Rail
- Accessory / separate part category
- Mounting accessory
- Type of rail
- Symmetrical DIN
- Enclosure nominal dimensions
- -
- Mounting support
- Self-tapping screw
- Range compatibility
- PanelSeT SBM
- Device composition
- 1 rail
- Quantity per set
- Set of 10
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By screw - screw type Ø5 mm self-tapping screws - rear of enclosure location
- Height
- 35 mm
- Width
- Nominal: 185 mm; Fixing centers: 164 mm
- Depth
- 7.5 mm
- thickness
- 1 mm
- Product weight
- 0.062 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.750 cm
- Package 1 Width
- 3.500 cm
- Package 1 Length
- 18.500 cm
- Package 1 Weight
- 62.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 4.000 cm
- Package 2 Width
- 4.500 cm
- Package 2 Length
- 18.500 cm
- Package 2 Weight
- 624.000 g
- Country of origin
- IT
- Warranty (in months)
- 18
- Model
- DIN rail (top hat rail) 35/7.5 mm
- Material thickness
- 1 mm
- Length
- 185 mm
- Punch shape
- None
- Drill hole distance centrically
- 164 mm
- Surface finishing
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480520709
- SAP 1000501735
- Code 8322857
Product Documentation
More from Schneider Electric
Schneider Electric
Duct detector-pipe 53541-171APO
FFS06720052
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB4, metal, red flush, 22mm, universal LED, plain lens, 1NO + 1NC, 110...120V AC XB4BW34G5
Schneider Electric
Aspirating clip red 4,5M
FFS06432562
Schneider Electric
Schneider Electric energy sensor, PowerTag Monoconnect 63A 1P+N bottom position A9MEM1522
Schneider Electric

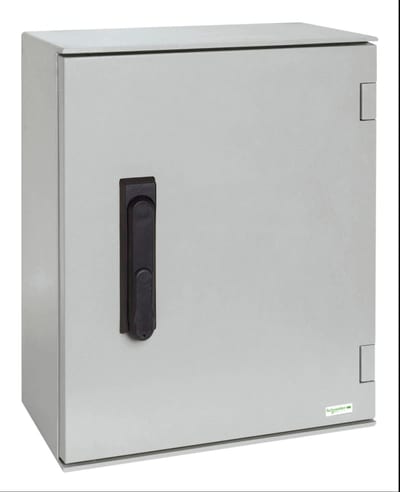

Schneider Electric wall-mounting enclosure polyester monobloc IP66 H430XW330XD200MM 3POINTS lock NSYPLM43VG
Schneider Electric

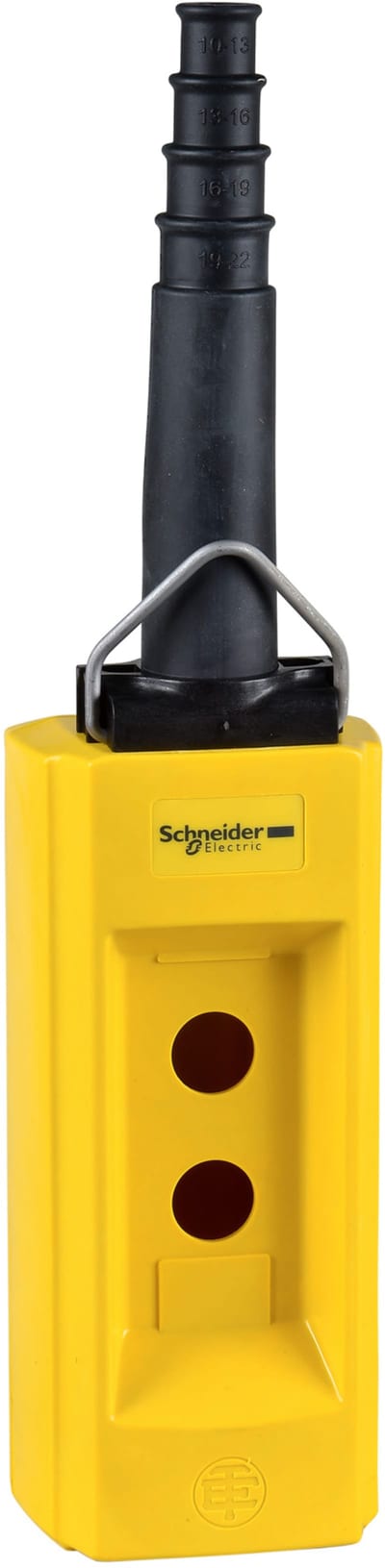

Schneider Electric empty pendant control station XAC-B - 2 vertical openings XACB02
Schneider Electric

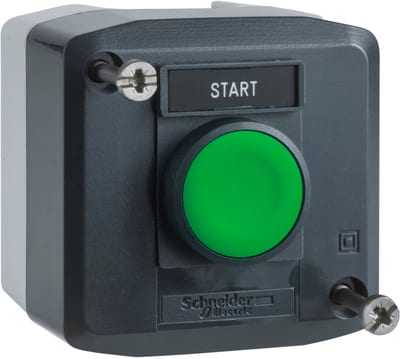

Push-Button Station "start"
XALD101H29
Schneider Electric

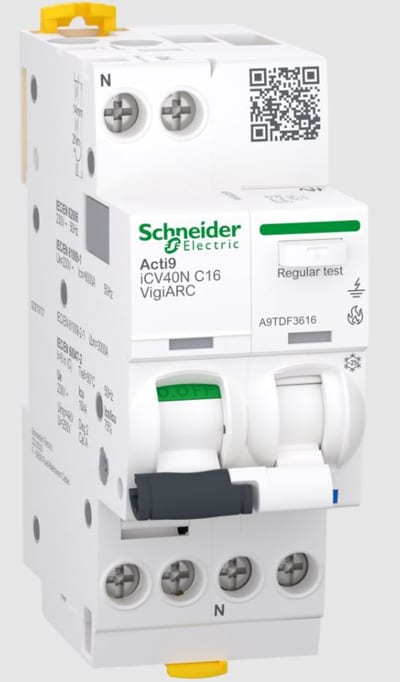

Schneider Electric Arc fault detection RCBO, ACTI9 ICV40N ARC, 1P+N, 16A, C curve, 30MA, type A-SI, 6000A A9TDF3616
