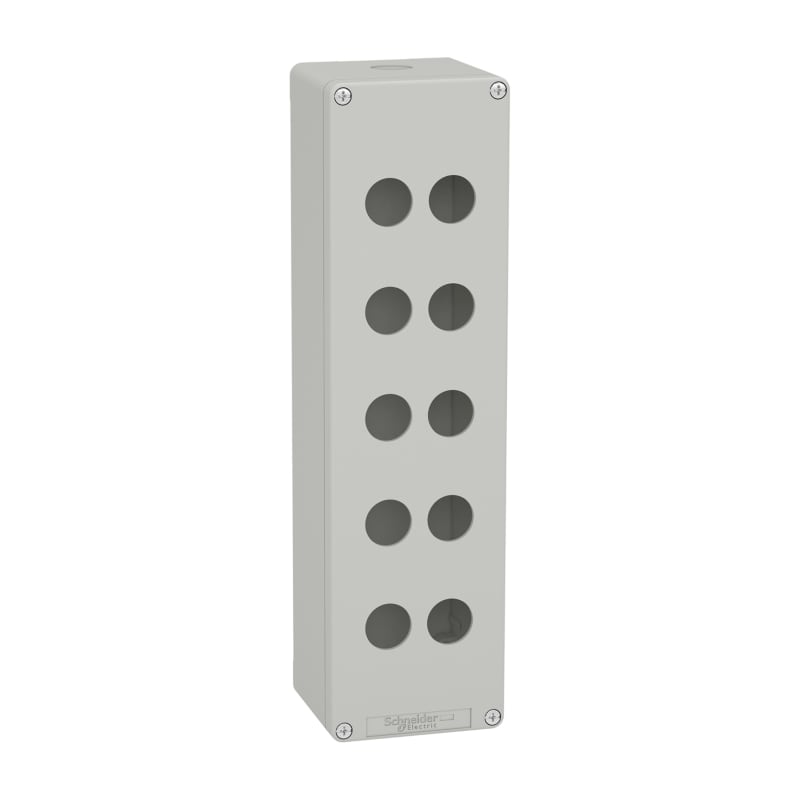

Schneider Electric Harmony XAP, XB2 SL, Empty control station, aluminium, grey, M32, 10 cut-outs 22mm, 85 x 310 x 77 XAPD5510
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XAPD5510 Push-Button Station empty in light grey metal with 10 x Ø22 mm holes and 1 x M32 cable gland 310 x 80 x 77 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XAPD5510
- EAN / GTIN
- 3606481808080
- Sales unit
- pcs
- Diameter
- 22 mm
- Range of product
- Harmony XAP
- Product or component type
- Die-cast empty control station
- Device short name
- XAPD
- Product destination
- For Ø 22 mm control and signalling units
- Product front plate size
- 85 x 310 mm
- Usable depth
- 74.5 mm
- Number of cut-out
- 10 cut-outs
- Colour of base of enclosure
- Grey (RAL 7035)
- Colour of cover
- Grey (RAL 7035)
- Material
- Die cast aluminium
- Sale per indivisible quantity
- 1
- IP degree of protection
- IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
- Number of vertical rows
- 2
- Number of horizontal rows
- 5
- Cut-out dimensions
- Ø 22 mm
- Control station type
- Metal
- Cable entry
- 1 x cable gland conforming to ISO
- Thread type
- M25 x 1.5
- CAD overall width
- 85 mm
- CAD overall height
- 310 mm
- CAD overall depth
- 77 mm
- Product weight
- 0.81 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class I conforming to IEC 61140
- IK degree of protection
- IK06 conforming to IEC 62262
- Resistance to chemical agents
- Special treatment can be obtained on request
- Product certifications
- EAC
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.000 cm
- Package 1 Width
- 13.300 cm
- Package 1 Length
- 31.700 cm
- Package 1 Weight
- 904.000 g
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 85 mm
- Height
- 310 mm
- Depth
- 77 mm
- Diameter openings
- 22.5 mm
- Number of command positions
- 10
- Colour housing cover
- Grey
- Housing material
- Aluminium
- Construction type housing
- Surface mounted housing
Standards & Compliance
- HS Code
- 7325.10
Cross References
- EAN 3606481808080
- SAP 1200565708
- Code 82952803
Product Documentation
