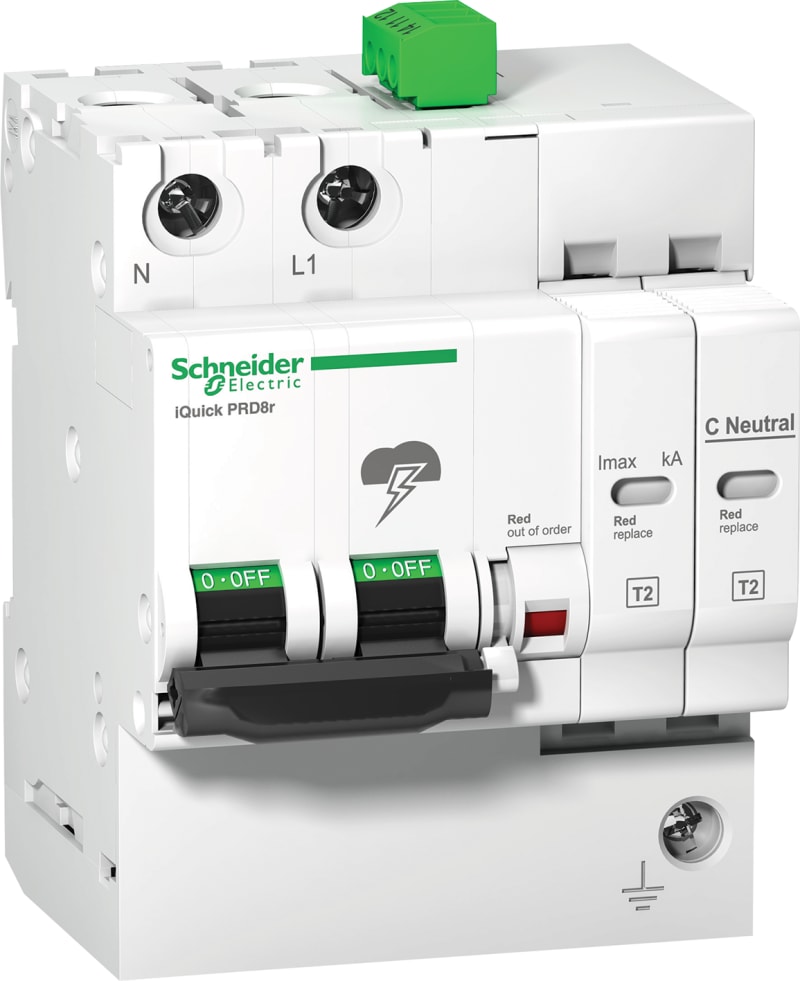

Schneider Electric iQuick PRD20R modular surge arrester - 1 pole + N - 350V - with remote transfer A9L16295

Schneider Electric A9L16295 Surge protection device iQuick PRD 20r 1P+N.

Manufacturer part number (MPN)

A9L16295

EAN / GTIN

3606480387074

Sales unit

pcs

Package quantity

27 pcs

Number of poles

1P+N

Range of product

IQuick PRD

Product name

Acti9 iQuick PRD

Product or component type

Surge arrester with pluggable cartridge

Device short name

iQuick PRD20r

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Product certifications

CE

Quality labels

NF; KEMA-KEUR

Poles description

1P + N

Remote signalling

With

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Earthing system

TT; TN-S

Surge arrester class type

Type 2

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

230 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

Common mode: 5 kA (L/PE); Common mode: 5 kA (N/PE); Differential mode: 5 kA (L/N)

Maximum discharge current

Common mode: 20 kA L/PE; Common mode: 20 kA N/PE; Differential mode: 20 kA L/N

[Uc] maximum continuous operating voltage

Common mode: 264 V N/PE; Differential mode: 350 V L/N

Maximum [Up] voltage protection level

Common mode <1.7 kV type 2 N/PE; Differential mode <1.7 kV type 2 L/N

[Out] temporary overvoltage

1200 V N/PE 200 ms withstand; 415 V L/N 5 s withstand; 440 V L/N 7200 s safe failure mode

Short-circuit withstand

25 kA

Disconnector device type

Integrated circuit breaker - Icu 25 kA

Signalling circuit voltage

2 A/250 V AC 50/60 Hz

Mounting mode

Clip-on (DIN rail)

9 mm pitches

8

Height

91.4 mm

Width

72 mm

Depth

75.9 mm

Product weight

435 g

Colour

White (RAL 9003)

[Ipe] Ground residual current

1 mA

Connections - terminals

Tunnel type terminal (L/N) 2.5…25 mm² rigid; Tunnel type terminal (ground) 2.5…25 mm² rigid; Tunnel type terminal (L/N) 2.5…25 mm² flexible; Tunnel type terminal (ground) 2.5…25 mm² flexible; Tunnel type terminal (L/N) 2.5…35 mm² flexible with ferrule; Tunnel type terminal (ground) 2.5…25 mm² flexible with ferrule

Wire stripping length

11 mm

Tightening torque

2.5 N.m

Compatibility code

IQuick PRD20r

IK degree of protection

IK05 conforming to IEC 62262

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

27

Country of origin

HU

Warranty (in months)

18

System configuration

TT

System configuration DC

No

System configuration IT

No

System configuration TN

No

System configuration TN-C

No

System configuration TT

Yes

System configuration other

No

Number of conductors (without earthing)

1

Nominal discharge surge current (8/20)

5 kA

Max. discharge surge current (8/20)

20 kA

Short-circuit-proof

Yes

Nominal voltage AC

230 V

Max. continuous voltage AC

350 V

Voltage protection level

1.5 kV

Voltage protection level L-N

1.5 kV

Voltage protection level N-PE

1.5 kV

Short-circuit breaking capacity (Isccr)

25 kA

Integrated short-circuit protection

Yes

Integrated backup fuse

No

Leakage-current free

No

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

4 modular spacing

Max. conductor cross section solid (solid, stranded)

25 mm²

Max. conductor cross section flexible (fine-strand)

25 mm²

With remote signalling contact

Yes

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

HS Code

8536.30
