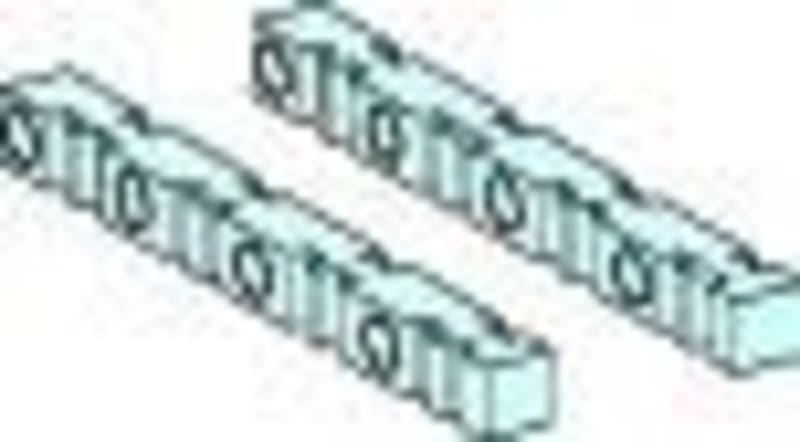

Schneider Electric LVS04662 Linergy BS Free-Mount Busbar Support

Schneider Electric LVS04662 is a free-mount busbar support from the Linergy range, compatible with Linergy BS 5/10 mm and Linergy LGYE busbars in PrismaSeT P enclosures. It carries 4-pole busbar assemblies rated up to 4000 A on a 75 mm bar spacing and mounts horizontally, laterally, or at the rear of the cubicle. Complies with IEC 61439-1/-2 and carries ASTA certification.

Manufacturer part number (MPN)

LVS04662

EAN / GTIN

3606481867124

Sales unit

pcs

Package quantity

12 pcs

Range

Linergy

Range of product

Linergy

Product or component type

Busbar support

Product name

Linergy BS

Range compatibility

Linergy Linergy LGYE busbar; Linergy Linergy BS busbar; PrismaSeT PrismaSeT P enclosure

Product compatibility

Busbar support

Cubicle-device connection

Linergy BS horizontal busbar - free mounting; Linergy BS lateral busbar - free mounting; Linergy BS rear busbar - free mounting; Linergy LGYE horizontal busbar - free mounting; Linergy LGYE lateral busbar - free mounting

installation description

Cubicle - width 650 mm; Cubicle duct - width 150 mm; Cubicle duct - width 300 mm; Cubicle - width 400 mm

Product weight

0.8 kg

Quantity per set

Set of 1

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.000 cm

Package 1 Width

3.100 cm

Package 1 Length

30.330 cm

Package 1 Weight

777.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

12

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

9.690 kg

Unit Type of Package 3

P12

Number of Units in Package 3

288

Package 3 Height

57.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

237.776 kg

Country of origin

FR

Warranty (in months)

18

Number of poles

4

Busbar distance

75 mm

Max. rated current

4000 A

HS Code

7326.90

• EAN 3606481867124
• SAP 1200547015
• Code 82879878
