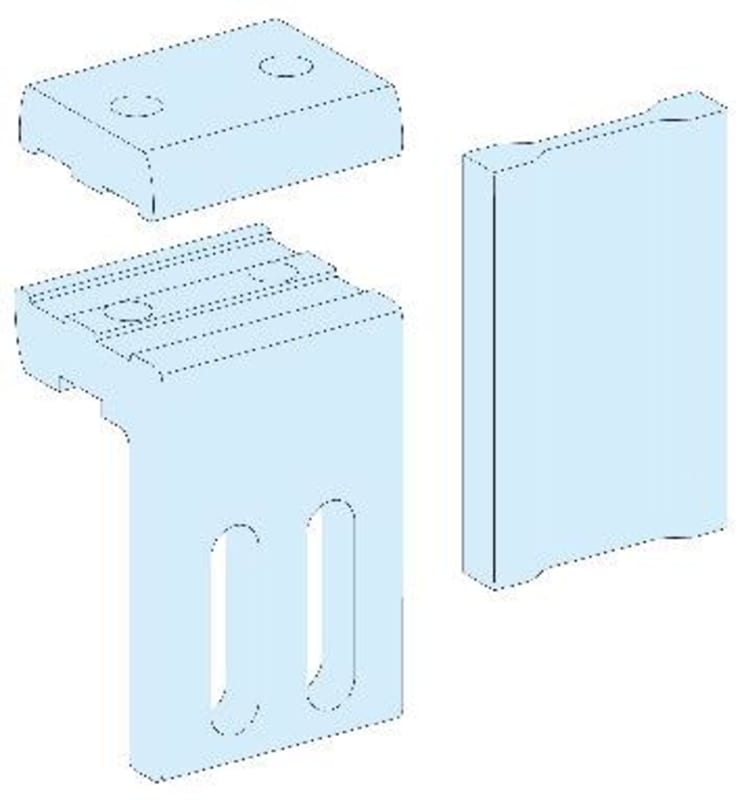

Schneider Electric LVS04636 CONNECT.1600A 10mm HZ BAR/ LGY V.PROFILE
Part numberLVS04636EAN / GTIN3606481868053HS code7419.80
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LVS04636 CONNECT.1600A 10mm HZ BAR/ LGY V.PROFILE is listed under Electrical Components. Sales unit: pcs; Package quantity: 8 pcs; Range: Linergy; Range of product: Linergy; Product or component type: Connection; Product name: Linergy LGY.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04636
- EAN / GTIN
- 3606481868053
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy LGY
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar; 10 mm horizontal busbar; vertical busbar
- Poles description
- 3P; 4P
- installation description
- Cubicle - width 400 mm
- Installed device
- ComPact: fixed NS630b...1000 - control: toggle vertical installation; ComPact: fixed NS1250 - control: toggle vertical installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle vertical installation; ComPact: fixed NS1250 - control: direct front rotary handle vertical installation; ComPact: fixed NS630b...1000 - control: motor mechanism vertical installation; ComPact: fixed NS1250 - control: motor mechanism vertical installation; ComPact: fixed NS1600 - control: toggle vertical installation; ComPact: fixed NS1600 - control: direct front rotary handle vertical installation; ComPact: fixed NS1600 - control: motor mechanism vertical installation; Masterpact: fixed NT06...10 - control: toggle vertical installation; Masterpact: fixed NT12 - control: toggle vertical installation; Masterpact: drawout NT06...10 - control: toggle vertical installation; Masterpact: drawout NT12 - control: toggle vertical installation; Masterpact: fixed NT16 - control: toggle vertical installation; Masterpact: drawout NT16 - control: toggle vertical installation
- [Ie] rated operational current
- 1600 A
- Product weight
- 1.52 kg
- Quantity per set
- Set of 1
- functional unit
- 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 drawout toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT12 drawout toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT16 drawout toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 3P 1 front connection 36
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 10.000 cm
- Package 1 Weight
- 1.142 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 8
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 9.442 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 192
- Package 3 Height
- 60.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 260.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated current
- 1600 A
- Number of poles
- 3
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 3606481868053
- SAP 1200546998
- Code 82880486
