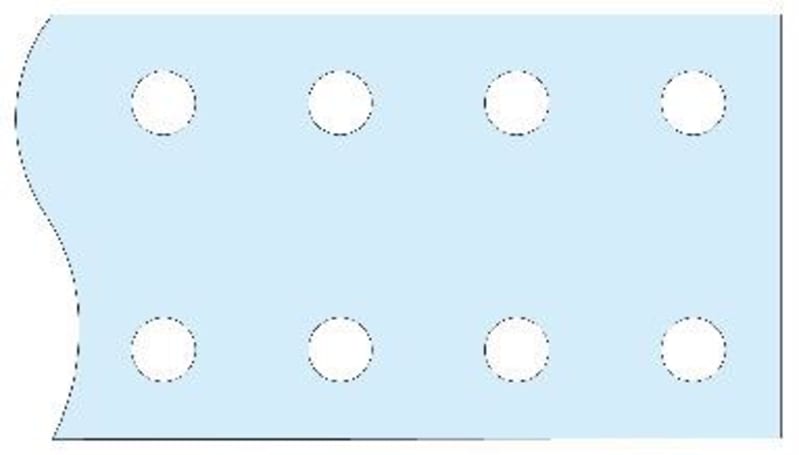

Flat rail-LGY BS-horizontal- 80X10MM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04548 Flat rail-LGY BS-for horizontal mounting-80x10mm length2000mm- PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04548
- EAN / GTIN
- 3606481870513
- Sales unit
- pcs
- Dimensions
- 80x10 mm
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar
- Product name
- Linergy BS
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Busbar description
- Flat bar
- Quantity per set
- Set of 1
- Installation direction
- Horizontal, operating position: top; Horizontal, operating position: bottom
- installation description
- Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm; Cubicle duct - width 400 mm
- [Ie] rated operational current
- 1800 A at 35 °C
- [Icw] rated short-time withstand current
- 40 kA (1 s) for 2 supports; 65 kA (1 s) for 3 supports; 75 kA (1 s) for 4 supports
- Permissible current
- 1800 A at 35 °C: <= IP31; 1600 A at 35 °C: IP31
- Busbar cross section
- 80 x 10 mm
- Length
- 2000 mm
- Width
- 80 mm
- Depth
- 10 mm
- Product weight
- 14.72 kg
- Colour
- Natural
- Type of busbar connection
- Without hole
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.8 cm
- Package 1 Width
- 14.5 cm
- Package 1 Length
- 210.0 cm
- Package 1 Weight
- 14.663 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 40
- Package 2 Height
- 29.0 cm
- Package 2 Width
- 120.0 cm
- Package 2 Length
- 202.0 cm
- Package 2 Weight
- 614.0 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Model
- Flat
- Height
- 10 mm
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 1800 A
Standards & Compliance
- HS Code
- 7407.29
Cross References
- EAN 3606481870513
- SAP 1200546972
- Code 82880415
Product Documentation
