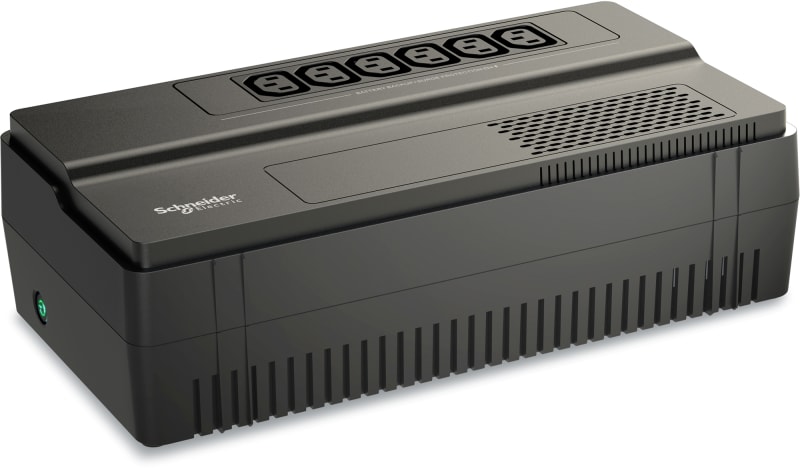

Schneider Electric Schneider Electric EASY UPS BVS 500VA, IEC outlet BVS500I
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric Easy UPS BVS 500VA, 230V,in: 1x C14, out: 6x C13.
Technical Specifications
- Manufacturer part number (MPN)
- BVS500I
- EAN / GTIN
- 0731304338420
- Sales unit
- pcs
- Voltage
- 230 V
- Main input voltage
- 230 V AC 1 phase
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 300 W
- Rated power in VA
- 500 VA
- Output connection
- 6 IEC 60320 C13
- Transfer time
- 6 ms typical : 10 ms maximum
- Run Time
- View Runtime Graph
- Battery capacity
- 4.5 Ah
- Number of batteries
- 1
- Battery type
- Lead-acid internal included
- Control panel
- LED Status display with on line : on battery
- UPS connectivity
- None
- Mounting support
- Wall; Floor
- Mounting mode
- Wall mount
- Range of product
- Easy UPS 1Ph BVS Series
- Product or component type
- Uninterruptible power supply (UPS)
- Type of signal
- Stepped approximation to a sinewave
- Product certification
- CE
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Operating altitude
- 0...6561 ft
- Battery voltage
- 12 V
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14.000 cm
- Package 1 Width
- 23.000 cm
- Package 1 Length
- 37.000 cm
- Package 1 Weight
- 4.313 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 4
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 18.180 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 16
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 84.720 kg
- SCC14
- 10731304338427
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304338420
- SAP 1200524040
- Code 82823019
Product Documentation
More from Schneider Electric
Schneider Electric

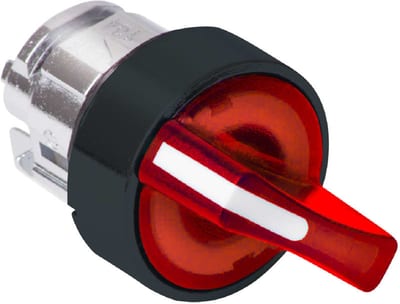

Selector switch with LIGHT 3POS.RET.H/V RED
