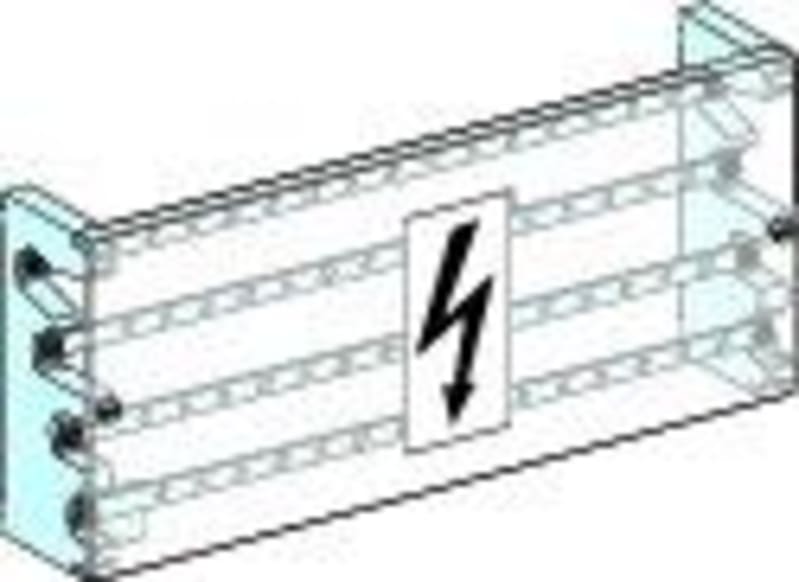

Busbar Linergy BS 160 A G/P

Schneider Electric LVS04052 Busbar-trappet-Linergy BS-160A -4P-52 hole-for PrismaSeT G/P.

Manufacturer part number (MPN)

LVS04052

EAN / GTIN

3606481870919

Sales unit

pcs

Rated current

160 A

Range

Linergy

Range of product

Linergy

Product or component type

Multi-stage distribution block

Product name

Linergy BS

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure

Product compatibility

Spacial enclosures

IP degree of protection

IPxx B

Mounting support

Prisma upright; Plain backplate

mounting mode

Horizontal; Vertical

Poles description

4P

[Ue] rated operational voltage

440 V AC

[Ui] rated insulation voltage

750 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

160 A

[In] rated current

160 A at 40 °C

[Icw] rated short-time withstand current

10 kA for 1 s

[Ipk] rated peak withstand current

30 kA

I²t on activation

100000000 A².s

Busbar cross section

15 x 5 mm

Connections - terminals

Supply: crimped lug50 mm²; Supply: flexible bars, 20 x 2 mm; Distribution: M6 holes (phase) , 13 x 16…50 mm²

Height

235 mm

Width

470 mm

Depth

115 mm

Product weight

2.72 kg

Standards

IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure

Product certifications

ASTA

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

FR

Warranty (in months)

18

Nominal current

160 A

Mounting method

Screw

Connection type

Screwing

Number of poles

4

Contact safe

Yes

Suitable for fine strand conductors

No

Suitable for solid conductors

No

Suitable for stranded conductors

No

Suitable for fine strand conductors without cable end sleeve

No

Suitable for extra fine-strand conductors

No

HS Code

8536.90
