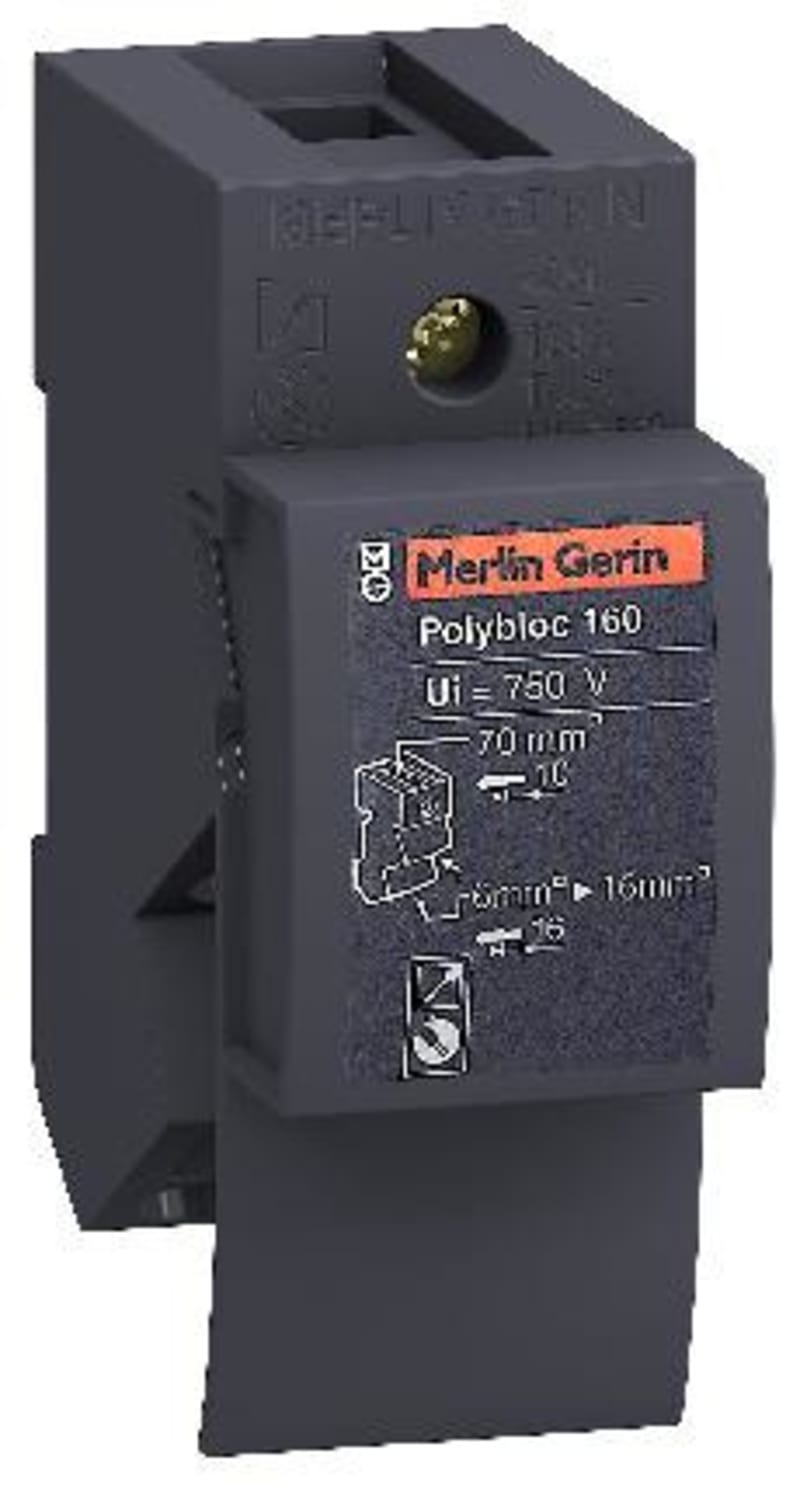

Linergy DX(Polyblock) 160A 1P -6 HOLES G/P

Schneider Electric LVS04031 Linergy DX(Polyblock)-fordelingsblokk for DIN rail-160A-1P -6 holes-for PrismaSeT G/P.

Manufacturer part number (MPN)

LVS04031

EAN / GTIN

3606481870865

Sales unit

pcs

Package quantity

12 pcs

Rated current

160 A

Number of poles

1P

Range

Linergy

Range of product

Linergy

Product or component type

Distribution block

Product name

Linergy DX

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT PrismaSeT Pack 250 enclosure

Product compatibility

Spacial enclosures

Accessory / separate part category

Current distribution accessory

IP degree of protection

IPxx B

Mounting support

DIN rail

Installed device

Acti 9: fixed C120 with earth leakage protection - control: toggle; Acti 9: fixed C120 without earth leakage protection - control: toggle; Acti 9: fixed iC120 with earth leakage protection - control: toggle; Acti 9: fixed iC120 without earth leakage protection - control: toggle; ComPact: fixed INS40 - control: direct front rotary handle - vertical installation; ComPact: fixed INS63 - control: direct front rotary handle - vertical installation; ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; FuPact: fixed ISFT160 - control: fuse carriers handle - vertical installation; FuPact: fixed ISFT100N - control: fuse carriers handle - vertical installation; Multi9: fixed NG125 with earth leakage protection - control: toggle; Multi9: fixed NG125 without earth leakage protection - control: toggle; Multi9: fixed NG125 NA - control: toggle; ComPact: fixed NG160 with earth leakage protection - control: toggle; ComPact: fixed NG160 without earth leakage protection - control: toggle; ComPact: fixed NG160 NA without earth leakage protection - control: toggle; FuPact: fixed INF100...160 - control: extended rotary handle - vertical installation; ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - horizontal installation

Poles description

1P

[Ue] rated operational voltage

690 V AC

[Ui] rated insulation voltage

750 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

160 A

[In] rated current

160 A at 40 °C

[Icw] rated short-time withstand current

5.5 kA for 1 s

[Ipk] rated peak withstand current

24 kA

I²t on activation

30250000 A².s

Connections - terminals

Supply: tunnel type terminal70 mm² (flexible) ; Supply: tunnel type terminal70 mm² (rigid) ; Distribution: spring terminal, 6 x 6…16 mm² (flexible) ; Distribution: spring terminal, 6 x 6…16 mm² (rigid)

9 mm pitches

4

Total number of 18 mm modules

2

Height

95 mm

Width

36 mm

Depth

70 mm

Product weight

0.1 kg

Colour

Anthracite grey (RAL 7016)

Pollution degree

3

Resistance to incandescent wire

960 °C conforming to IEC 60695-2-11

Standards

IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure; IEC 60947-7-1

Product certifications

ASTA

Warranty (in months)

18

Nominal current

160 A

Mounting method

DIN rail

Connection type

Without screws

Contact safe

Yes

Suitable for fine strand conductors

No

Suitable for solid conductors

No

Suitable for stranded conductors

No

Suitable for fine strand conductors without cable end sleeve

No

Suitable for extra fine-strand conductors

No

Country of origin

Poland

HS Code

8536.90
