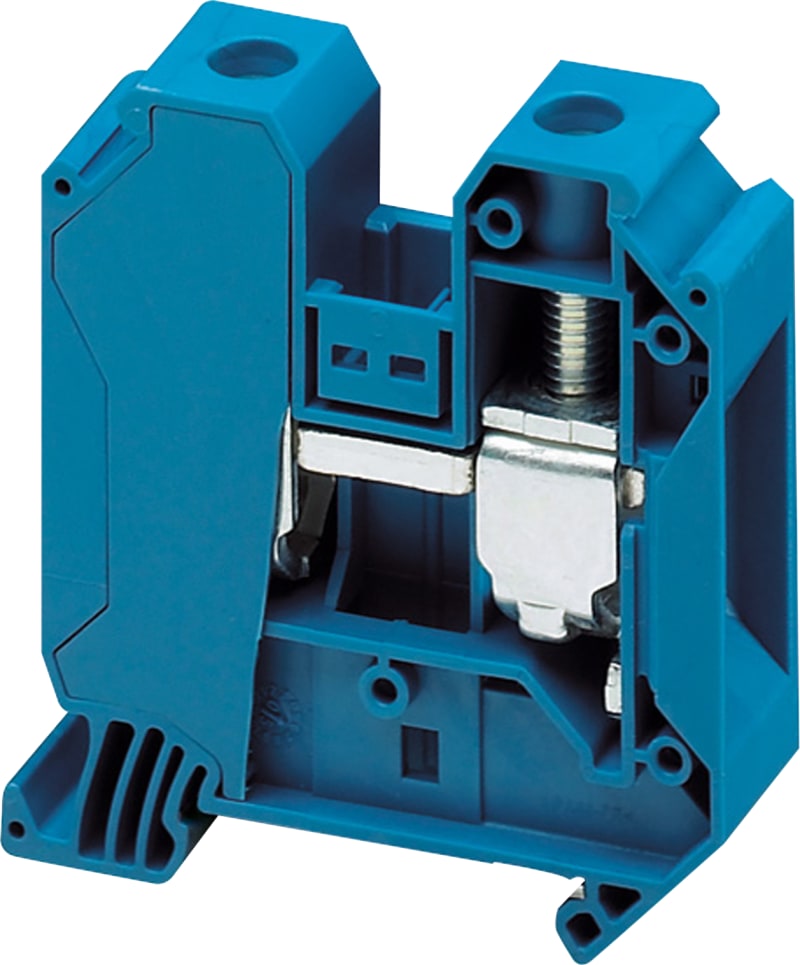

DIN-rail terminal 35mm² blue 2P

Schneider Electric NSYTRV352BL DIN-rail terminal 35mm² blue 2p.

Manufacturer part number (MPN)

NSYTRV352BL

EAN / GTIN

3606480532160

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

35 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRV

Accessory / separate part category

Connection accessory

Terminal block type

Passthrough

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

35 mm²

Length

60.2 mm

Colour

Blue

Quantity per set

Set of 50

Width

16 mm

Height

65.7 mm

Connections - terminals

1 x screw terminal: upstream (M6); 1 x screw terminal: downstream (M6)

number of connections

2

Connection position

Sideways

Number of measurement input

2

Cable cross section

1.5…50 mm², flexible cable without cable end; 1.5…50 mm², solid cable with cable end; 1.5…50 mm², flexible cable with cable end; 1.5…50 mm², solid cable without cable end

Tightening torque

3.2…3.7 N.m

Wire stripping length

18 mm

Tool type

Connection: screwdriver; Disconnection: screwdriver

[Ue] rated operational voltage

1000 V conforming to EN/IEC 60947-7-1; 600 V CSA; 600 V UL

[In] rated current

125 A conforming to EN/IEC 60947-7-1; 150 A UL; 150 A CSA

Material

Polyamide 6/6: insulating case; Copper alloy: connector and screw; Copper alloy: commoning link; Chromium-nickel steel: spring

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

61 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

UL; GL; CSA; VDE

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

1250

Country of origin

TR

Warranty (in months)

18

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

1.5–50 mm²

Connectable conductor cross section multi-wired

1.5–50 mm²

Rated current In

125 A

Rated voltage

1000 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

16 mm

Depth

60.2 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

No

Internally connected stages

No

HS Code

8536.90

• EAN 3606480532160
• SAP 1000402181
• Code 8895313
