Schneider Electric

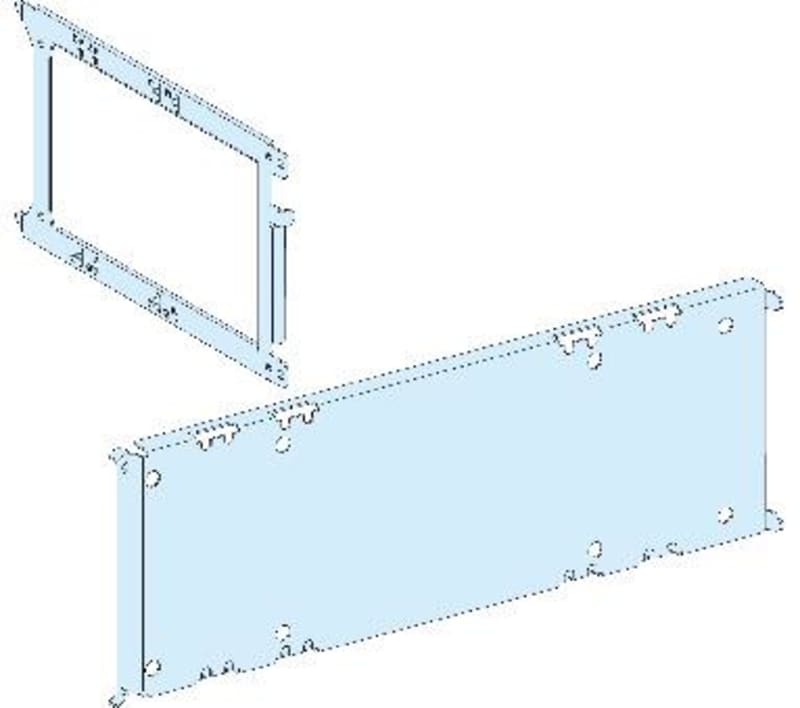

Mounting plate NS1600B-3200 Prisma P
Part numberLVS03501EAN / GTIN3606481874641HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03501 Mounting plate for NS1600b/3200-fast-vertical-3P/4P-PrismaSeT P-for 650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03501
- EAN / GTIN
- 3606481874641
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm; Cubicle - width 650 mm depth 600 mm
- Installed device
- ComPact: fixed INS2000...2500 - control: direct front rotary handle - vertical installation; ComPact: fixed INS630b...1600 - control: direct front rotary handle - vertical installation; ComPact: fixed INV2000...2500 - control: direct front rotary handle - vertical installation; ComPact: fixed INV630b...1600 - control: direct front rotary handle - vertical installation; ComPact: fixed NS1600b - control: toggle - vertical installation; ComPact: fixed NS2000...3200 - control: toggle - vertical installation
- Poles description
- 1 x 3P: fixed INS2000...2500 vertical installation; 1 x 4P: fixed INS2000...2500 vertical installation; 1 x 3P: fixed INS630b...1600 vertical installation; 1 x 4P: fixed INS630b...1600 vertical installation; 1 x 3P: fixed INV2000...2500 vertical installation; 1 x 4P: fixed INV2000...2500 vertical installation; 1 x 3P: fixed INV630b...1600 vertical installation; 1 x 4P: fixed INV630b...1600 vertical installation; 1 x 3P: fixed NS1600b vertical installation; 1 x 4P: fixed NS1600b vertical installation; 1 x 3P: fixed NS2000...3200 vertical installation; 1 x 4P: fixed NS2000...3200 vertical installation
- Number of vertical modules [50 mm]
- 16 module(s): INS2000...2500, front connection on adaptor in 650 mm Widecubicle; 16 module(s): INS2000...2500, rear connection on adaptor in 650 mm Widecubicle; 14 module(s): INS630b...1600, front connection on adaptor in 650 mm Widecubicle; 16 module(s): INV2000...2500, front connection on adaptor in 650 mm Widecubicle; 16 module(s): INV2000...2500, rear connection on adaptor in 650 mm Widecubicle; 14 module(s): INV630b...1600, front connection on adaptor in 650 mm Widecubicle; 14 module(s): NS1600b, front connection on adaptor in 650 mm Widecubicle; 16 module(s): NS2000...3200, front connection on adaptor in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 200 mm
- Product weight
- 2.9 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16 262.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16 262.5 mm; 650 mm 600 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16 262.5 mm; 650 mm 600 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16 262.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14 262.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INS630b...1600 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 14 262.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16 262.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16 262.5 mm; 650 mm 600 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16 262.5 mm; 650 mm 600 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16 262.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14 262.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact INV630b...1600 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 14 262.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600b fixed toggle vertical 3P 1 front connection on adaptor 14 212.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600b fixed toggle vertical 4P 1 front connection on adaptor 14 212.5 mm; 650 mm 600 mm PrismaSeT P cubicle ComPact NS2000...3200 fixed toggle vertical 3P 1 front connection on adaptor 16 212.5 mm; 650 mm 600 mm PrismaSeT P cubicle ComPact NS2000...3200 fixed toggle vertical 4P 1 front connection on adaptor 16 212.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 20.000 cm
- Package 1 Length
- 58.000 cm
- Package 1 Weight
- 2.937 kg
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 4
- Package 2 Height
- 15.500 cm
- Package 2 Width
- 41.000 cm
- Package 2 Length
- 60.500 cm
- Package 2 Weight
- 11.748 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 96
- Package 3 Height
- 106.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 295.952 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874641
- SAP 1200546694
- Code 82880419
