Schneider Electric XACD22P3241 Pendant Station 1 Rocker + E-Stop

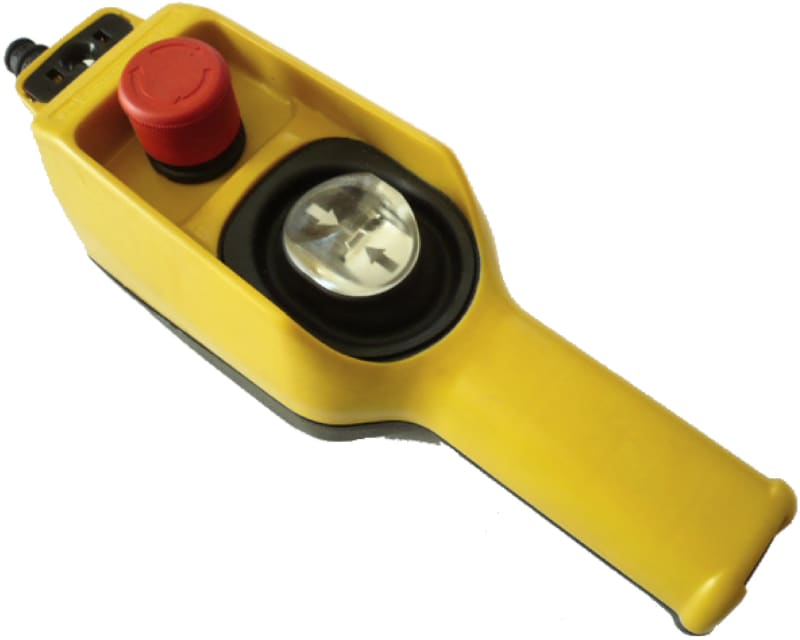

Schneider Electric XACD22P3241 is a Harmony XAC pendant control station for a two-speed reversing hoist motor. It combines one two-directional rocker lever (raise/lower, slow-fast, with brake NO contact) and a latching Ø 30 mm emergency-stop button in a double-insulated polypropylene enclosure rated IP65 / IK08. Screw-clamp terminals up to 2.5 mm² with mechanical interlocking.

Manufacturer part number (MPN)

XACD22P3241

EAN / GTIN

3389110656138

Sales unit

pcs

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACD

Control station type

Double insulated

Enclosure material

Polypropylene

Control type

Intuitive

Electrical circuit type

Power circuit

enclosure type

Complete ready for use

Control station application

Control of 2-speed hoist motor

Motor starter type

Reversing

Control station composition

1 2-directional button + 1 emergency stop

Control button type

Stop push-button Ø 30 mm 3 NC latching; First direction button 1 NO (brake) 2-pole raise, slow-fast; Second direction button 1 NO (brake) 2-pole lower, slow-fast

Product compatibility

XEDS3241 for reversing operation; XENT1991 for emergency stop

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

EN/IEC 60204-32; UL 508; CSA C22.2 No 14; EN/IEC 60947-5-1

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

70 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 50102

Mechanical durability

3000000 cycles

Cable entry

Rubber sleeve with stepped entry 7…18 mm

[Ithe] conventional enclosed thermal current

10 A XENT....; 16 A XEDS....

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; Emergency stop contact: 400 V (pollution degree 3)

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1; 4 kV emergency stop contact

Contact operation

Snap action

Operating force

31 N

Short-circuit protection

6 A fuse protection by cartridge fuse type aM

Rated operational power in W

2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A; 2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A; 3000 W AC-23B at 400 V

Electrical durability

1000000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 1000000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Terminals description ISO n°1

(1-2)P; (15-16)NO; (R3-R4)RP; (3-4)P; (R1-R2)RP; (7-8)P; (5-6)P; (9-10)P; (13-14)NO; (11-12)P

Terminals description ISO n°2

(31-32)NC; (21-22)NC; (11-12)NC

Terminal identifier

(13-14)NO; (11-12)NC

Product weight

0.42 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.2 cm

Package 1 Width

9.0 cm

Package 1 Length

31.5 cm

Package 1 Weight

605.0 g

Unit Type of Package 2

S02

Number of Units in Package 2

3

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

2.149 kg

Warranty (in months)

18

Width

82 mm

Height

300.5 mm

Depth

101 mm

Number of command positions

2

Colour housing cover

Yellow

Suitable for emergency stop

Yes

Housing material

Plastic

Number of speeds

2

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

Country of origin

France

HS Code

8537.10
