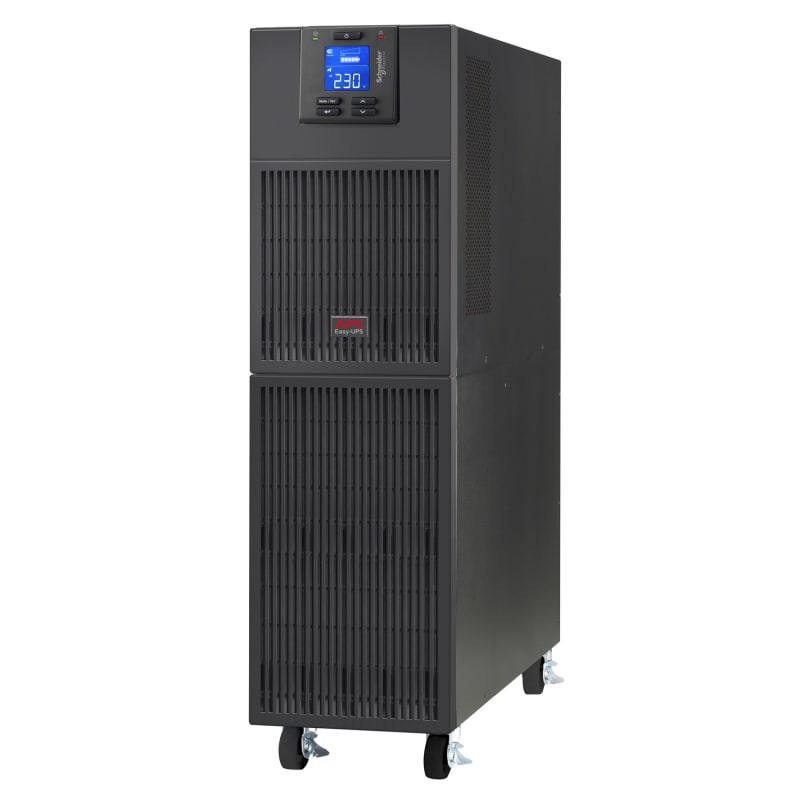

Schneider Electric SRV10KI APC Easy UPS On-Line 10 kVA / 10 kW Tower
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRV10KI is a 10 kVA / 10 kW double-conversion on-line UPS in tower form, delivering 230 V single-phase output via a hard-wired 3-wire (1P+N+E) connection. Includes internal lead-acid batteries, an LCD status console, USB and serial ports and one expansion slot for a management card. Sized for essential-power protection where mains conditions are unstable.
Technical Specifications
- Manufacturer part number (MPN)
- SRV10KI
- EAN / GTIN
- 0731304337935
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 110...300 V 60 % load; 176...300 V full load
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 40...70 Hz auto sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 10000 W
- Rated power in VA
- 10000 VA
- Output connection
- Hard wire 3-wire (1P + N + E) for 1 zone(s)
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- 1 %
- Maximum configurable power in VA
- 10000 VA
- Maximum configurable power in W
- 10000 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Efficiency
- 94 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Run Time
- View Runtime Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 600 J
- Color
- Black (RAL 7010)
- Height
- 685 mm
- Width
- 190 mm
- Depth
- 447 mm
- Product weight
- 65 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- Yes
- Mounting position
- Vertical
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA; EAC; TISI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…60 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 58 dB
- Heat dissipation
- 2128 Btu/h
- Operating altitude
- 0...3000 m
- Battery voltage
- 192 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 5 h
- Battery life
- 3…5 year(s)
- Battery charging power
- 235 W rated
- Battery power in VAh
- 1599 VAh runtime
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 91.000 cm
- Package 1 Width
- 32.000 cm
- Package 1 Length
- 58.000 cm
- Package 1 Weight
- 73.000 kg
- Country of origin
- CN
- Warranty (in months)
- 24
