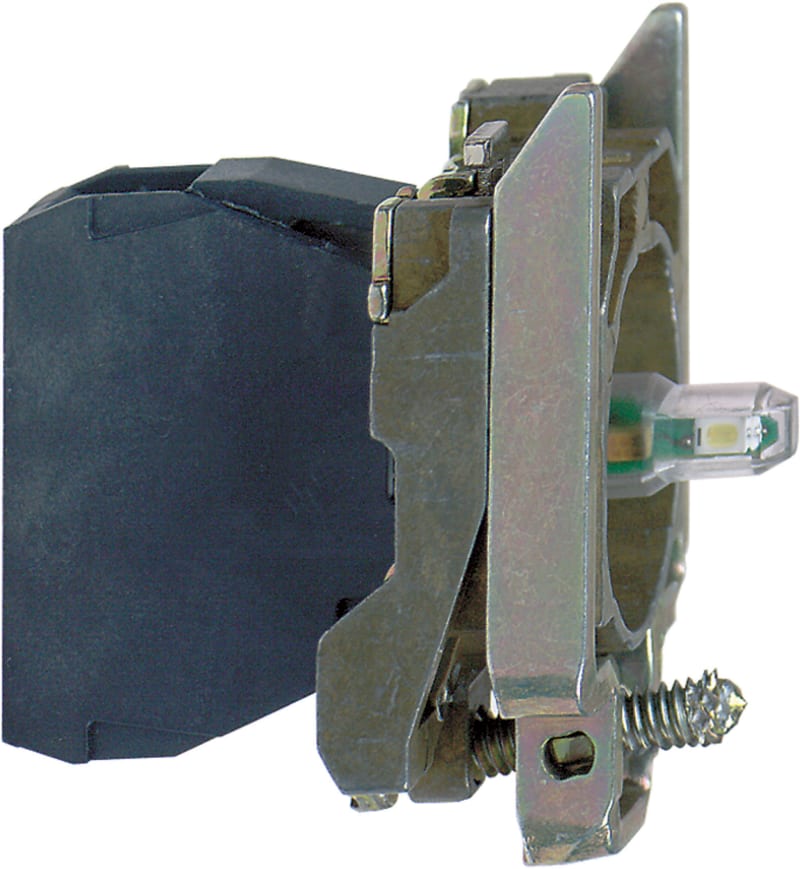

Schneider Electric Complete body/light block assembly, Harmony XB4, metal, universal LED, screw clamp terminals, 12V AC DC ZB4BVJ1

Schneider Electric ZB4BVJ1 Lamp Body LED White 12V.

Manufacturer part number (MPN)

ZB4BVJ1

EAN / GTIN

3389110069761

Sales unit

pcs

Package quantity

3 pcs

Voltage

12 V

Range of product

Harmony XB4

Product or component type

Complete body/light block assembly

Device short name

ZB4

Fixing collar material

Zamak

Sale per indivisible quantity

1

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end

Light source

Universal LED

Bulb base

Integral LED

Light source colour

White

[Us] rated supply voltage

12 V AC/DC at 50/60 Hz

CAD overall width

30 mm

CAD overall height

47 mm

CAD overall depth

37 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.054 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Signalling type

Steady

Supply voltage limits

10…15 V DC; 10.2…13.8 V AC

Current consumption

18 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

Standards

IEC 60947-5-1; IEC 60947-5-5; IEC 60947-1; JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-5-4; UL 508; JIS C8201-1

Product certifications

DNV; UL listed; LROS (Lloyds register of shipping); BV; CSA

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-2-6; 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Country of origin

FR

Warranty (in months)

18

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

White

Lamp type

LED

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

12 V

Rated voltage Ue at AC 60 Hz

12 V

Rated voltage Ue at DC

12 V

Voltage type for actuating

AC/DC

HS Code

8531.80
