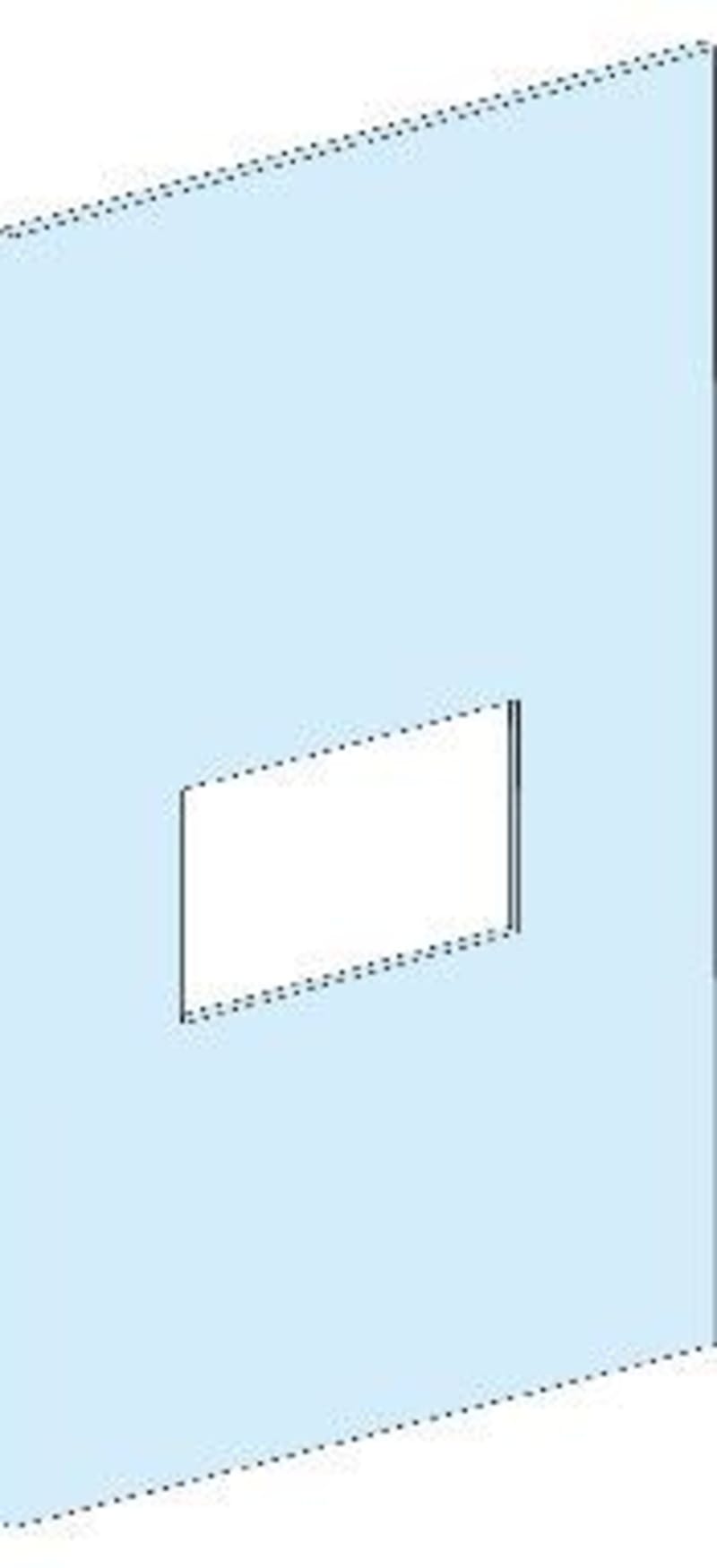

Front plate INS250 Vertical Cable Compartment Prisma G
Part numberLVS03251EAN / GTIN3606481873019HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03251 Front plate for INS250-Vertical mounting- for cable compartment PrismaSeT G-9modules.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03251
- EAN / GTIN
- 3606481873019
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G duct
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INV100 - control: direct front rotary handle - vertical installation; ComPact: fixed INV160 - control: direct front rotary handle - vertical installation; ComPact: fixed INV200 - control: direct front rotary handle - vertical installation; ComPact: fixed INV250 - control: direct front rotary handle - vertical installation; ComPact: fixed INS250 - control: direct front rotary handle - vertical installation
- Poles description
- 1 x 4P: mounting plate support: INV100 vertical installation; 1 x 4P: mounting plate support: INV160 vertical installation; 1 x 4P: mounting plate support: INV200 vertical installation; 1 x 4P: mounting plate support: INV250 vertical installation; 1 x 3P: mounting plate support: INS250 vertical installation; 1 x 4P: mounting plate support: INS250 vertical installation; 1 x 3P: mounting plate support: INV100 vertical installation; 1 x 3P: mounting plate support: INV160 vertical installation; 1 x 3P: mounting plate support: INV200 vertical installation; 1 x 3P: mounting plate support: INV250 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 9
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 450 mm
- Product weight
- 0.94 kg
- Quantity per set
- Set of 1
- functional unit
- 300 mm PrismaSeT G floor-standing duct ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV100 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV100 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV160 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV160 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV200 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV200 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9; 300 mm PrismaSeT G floor-standing duct ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9; 300 mm PrismaSeT G wall-mounted duct ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 26.500 cm
- Package 1 Length
- 46.500 cm
- Package 1 Weight
- 924.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 9
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 9.580 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 108
- Package 3 Height
- 103.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 125.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 300 mm
- Number of height units
- 9
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481873019
- SAP 1200546638
- Code 82880123
