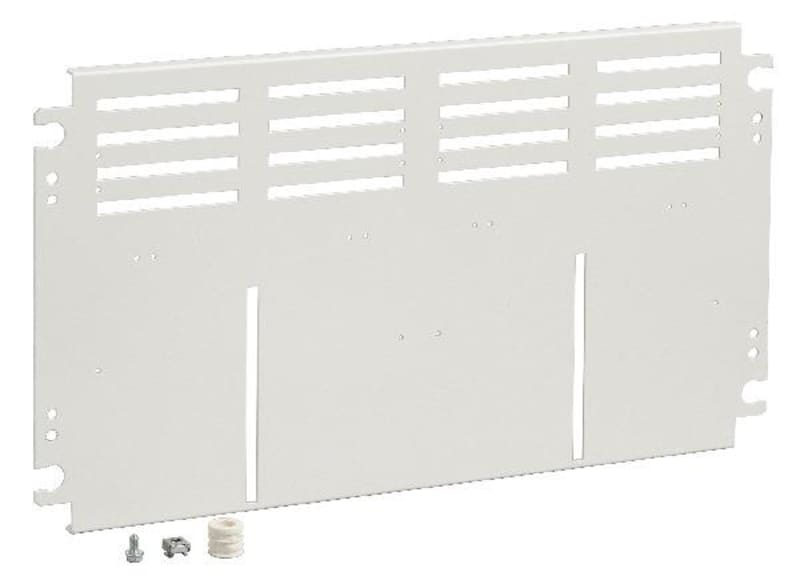

Measuring Tray f/2 MUSTLERE-6MOD PrismaSeT G

Schneider Electric LVS03160 Measuring Tray for 2 pcs 3-phase mustlere- in PrismaSeT G- B600mm - 6modules.

Manufacturer part number (MPN)

LVS03160

EAN / GTIN

3606481875204

Sales unit

pcs

Package quantity

10 pcs

Modular width

6 modules

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm

Installed device

Power meters: kilowatt-hour meters - vertical installation; connection

Poles description

2 x 4P: kilowatt-hour meters vertical installation

Number of vertical modules [50 mm]

6 module(s): kilowatt-hour meters in 600 mm Widefloor-standing enclosure; 6 module(s): kilowatt-hour meters in 600 mm Widewall-mounted enclosure; 6 module(s): connection in 600 mm Widefloor-standing enclosure; 6 module(s): connection in 600 mm Widewall-mounted enclosure

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Textured; Matt

Colour

White (RAL 9003)

Width

600 mm

Height

300 mm

Product weight

1.5 kg

Functional unit

600 mm PrismaSeT G floor-standing enclosure connection 2 6 50 mm; 600 mm PrismaSeT G wall-mounted enclosure connection 2 6 50 mm; 600 mm PrismaSeT G floor-standing enclosure power meters kilowatt-hour meters vertical 4P 2 6 50 mm; 600 mm PrismaSeT G wall-mounted enclosure power meters kilowatt-hour meters vertical 4P 2 6 50 mm

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

80

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

Country of origin

France

HS Code

7326.90

• EAN 3606481875204
• SAP 1200546885
• Code 82879518
