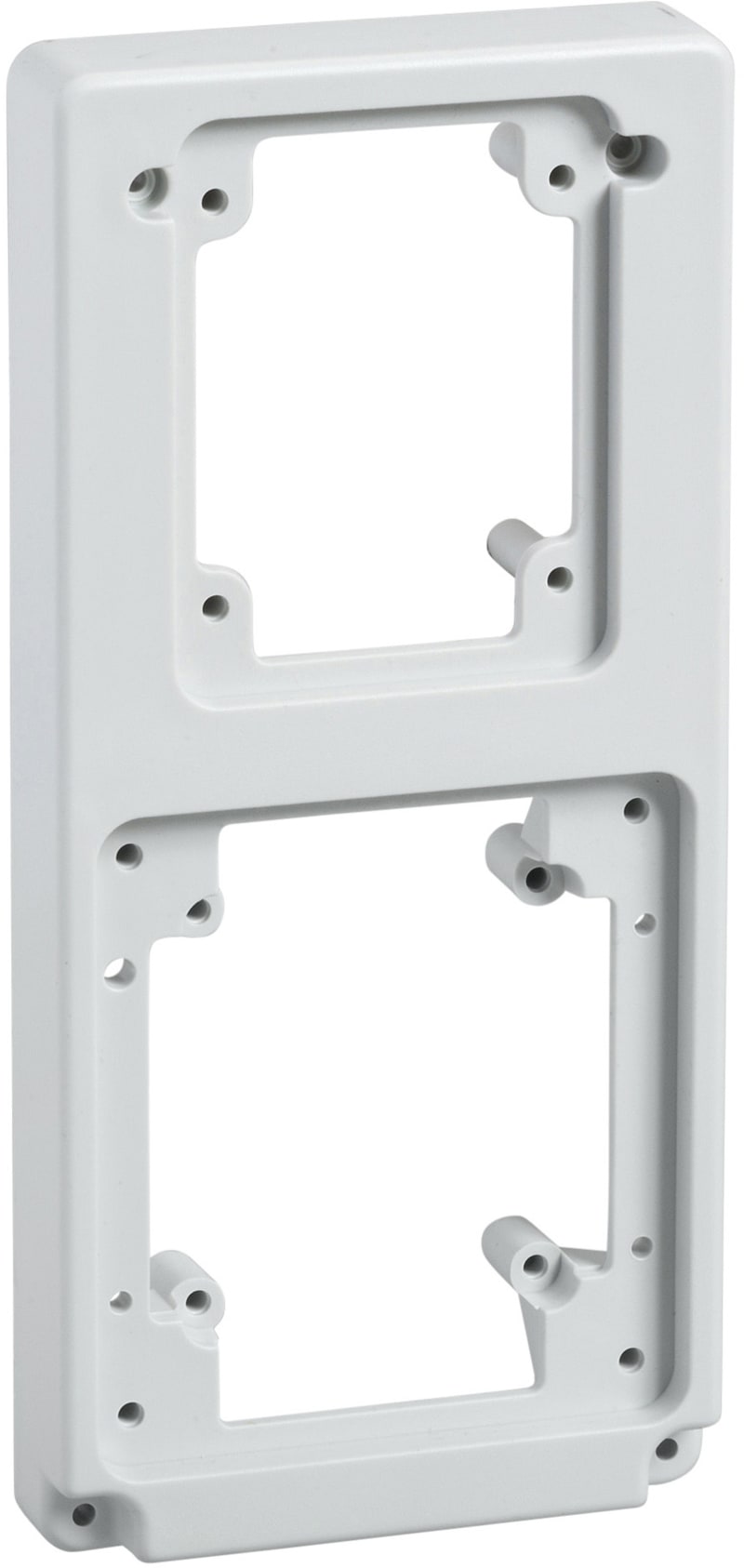

Plate 65X85 AND 90X100
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 13142 Plate 65x85 and 90x100.
Technical Specifications
- Manufacturer part number (MPN)
- 13142
- EAN / GTIN
- 3303430131427
- Sales unit
- pcs
- Range of product
- Kaedra
- Product or component type
- Plate
- Type of front plate
- With cut-outs
- Accessory / separate part type
- Installation accessories
- Socket dimensions compatible
- 1 hallway 65 x 85 mm ofsocket-outlet; 1 hallway 90 x 100 mm ofsocket-outlet
- Enclosure material
- Housing: self-extinguishing polymer
- Product weight
- 0.188 kg
- Base dimension
- 103 x 225 mm
- Width
- 103 mm
- Height
- 225 mm
- Colour
- Grey (RAL 7035)
- Standards
- IEC 60309-2; IEC 60309-1
- Fire resistance
- 650 °C conforming to IEC 60695-2-11
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK09 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.400 cm
- Package 1 Width
- 10.200 cm
- Package 1 Length
- 22.500 cm
- Package 1 Weight
- 143.900 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 8
- Package 2 Height
- 11.600 cm
- Package 2 Width
- 21.600 cm
- Package 2 Length
- 27.500 cm
- Package 2 Weight
- 1.252 kg
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 24
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 3.856 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- Yes
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3303430131427
- SAP 1000010284
- Code 8478890
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSeT SM horizontal adaptation profiles - 1000 mm NSYSMHR10
Schneider Electric
Schneider Electric APC Easy UPS On-Line, 10KVA/10KW, Rackmount 4U, 230V, Hard wire 3-Wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/O rail kit SRV10KRI
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100R, 200KA/415VAC, 3 poles, MicroLogic 6.2E trip unit 100A C10R36E100
Schneider Electric
Angleconnection large 3P G265-500
LA9G3672
Schneider Electric
Additional EMC Filter for Single-Phase Drives (VW3A4417)
Schneider Electric
Schneider Electric Rear connection kit - vertical or horizontal - Masterpact MTZ1 06-16 - 4P fixed LV833585SP
Schneider Electric

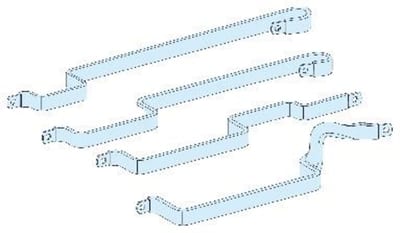

Schneider Electric Connection, Linergy FM, 200A, to connect Linergy BS multi-stage busbar to Linergy FM device feeder, set of 4 LVS04024
Schneider Electric

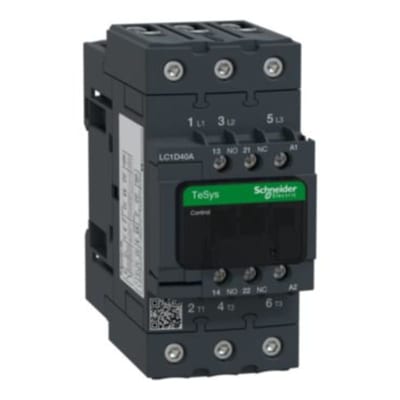

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 40A, 440V AC 50/60Hz coil, screw clamp terminals LC1D40AR7
