Angleconnection large 3P G265-500
Pricing
Request a quote
We reply within 24 hours
Product Description

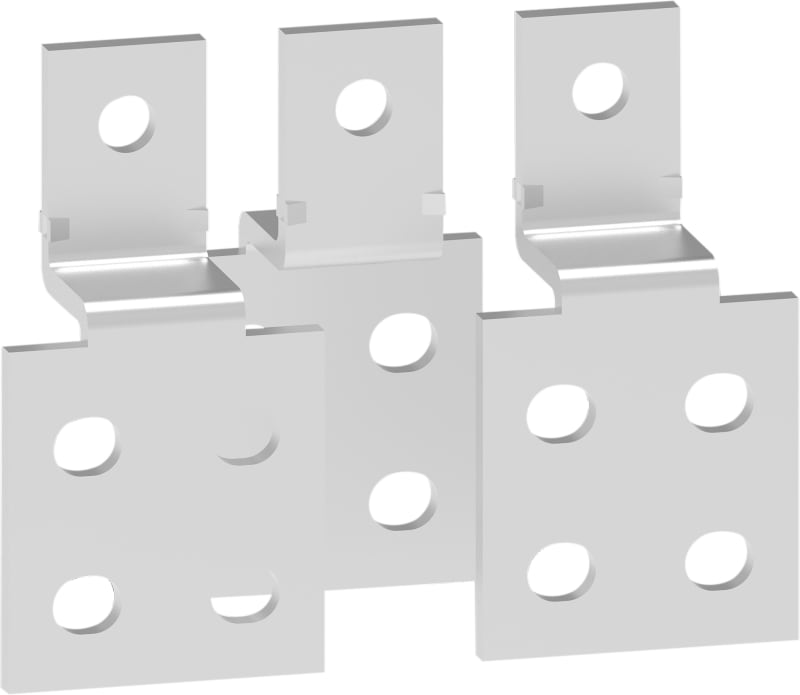

Schneider Electric LA9G3672 Angled connection extensions LARGE for TeSys LC1G265-500, 3-pole.
Technical Specifications
- Manufacturer part number (MPN)
- LA9G3672
- EAN / GTIN
- 3606481015945
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of poles
- 3P
- Range
- TeSys
- Device short name
- LA9G
- Product or component type
- Terminal extension
- Accessory / separate part category
- Extension accessories
- Range compatibility
- TeSys LC1G
- Product compatibility
- LC1G265...330; LC1G400...500; LC1G300; LC1G410...475
- Connector type
- Large
- Height
- 60 mm
- Width
- 33 mm
- Depth
- 114 mm
- Product weight
- 0.752 kg
- Quantity per set
- Set of 3
- Operating altitude
- 3000 m without derating; 5000 m with derating factor
- Standards
- EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; GB/T 14048
- Pollution degree
- 3 conforming to IEC 60947-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Connection technique
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481015945
- SAP 1200587863
- Code 82974866
Product Documentation
More from Schneider Electric
Schneider Electric
Additional EMC Filter for Single-Phase Drives (VW3A4417)
Schneider Electric
Schneider Electric Rear connection kit - vertical or horizontal - Masterpact MTZ1 06-16 - 4P fixed LV833585SP
Schneider Electric
Schneider Electric Connection, Linergy FM, 200A, to connect Linergy BS multi-stage busbar to Linergy FM device feeder, set of 4 LVS04024
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 40A, 440V AC 50/60Hz coil, screw clamp terminals LC1D40AR7
Schneider Electric

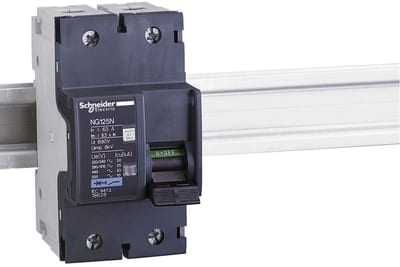

NG125N/C 63-2 Modular Power Switch
18628
Schneider Electric

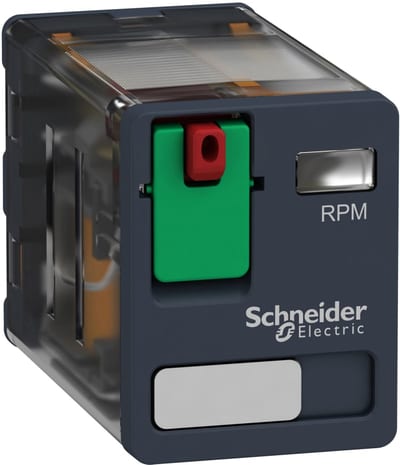

Schneider Electric Power plug-in relay, 15 A, 2 CO, 120 V AC RPM21F7
Schneider Electric

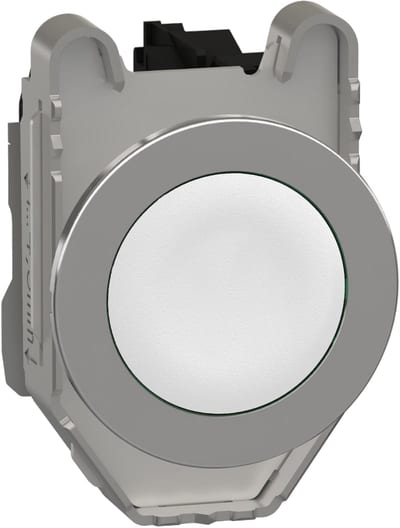

Schneider Electric Push button flush mounted, Harmony XB4, metal, white, 30mm, spring return, unmarked, 1NO XB4FA11
Schneider Electric

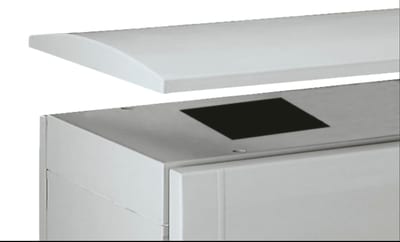

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X500X320 IP44 NSYPLAZT753G
