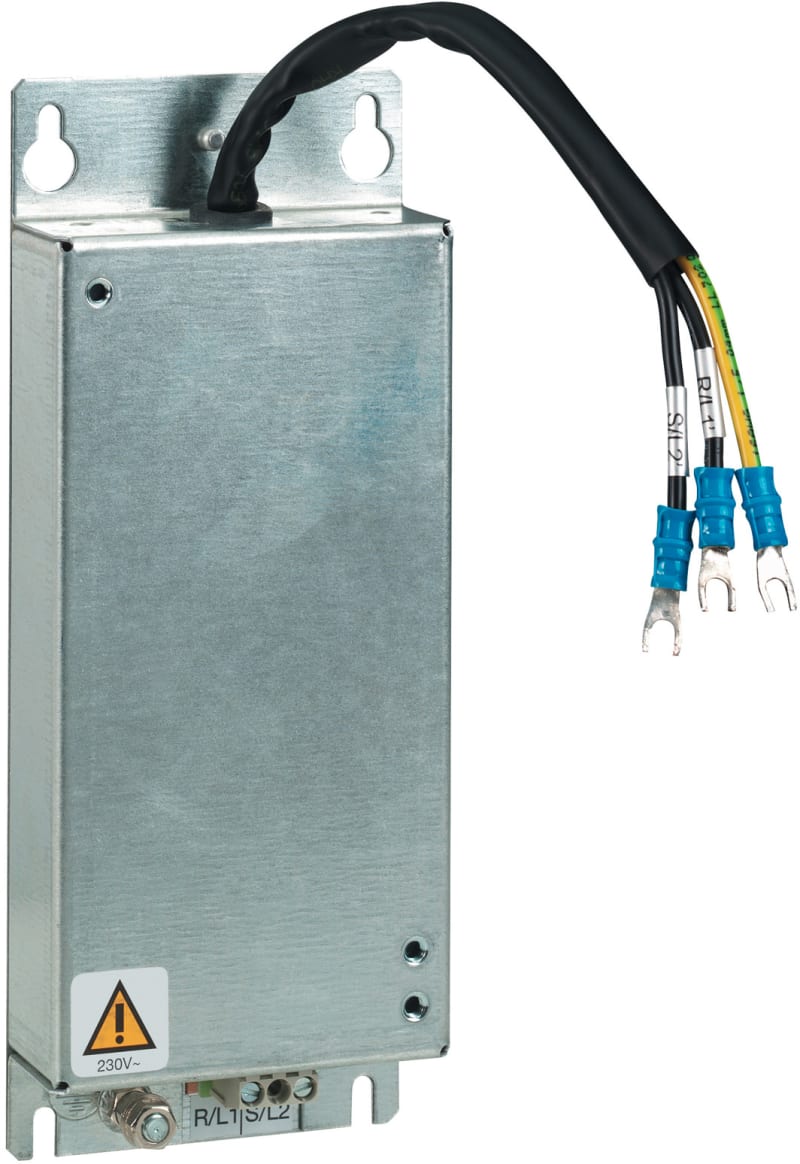

Additional EMC Filter for Single-Phase Drives (VW3A4417)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A4417 additional EMC filter for single-phase Altivar variable speed drives.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A4417
- EAN / GTIN
- 3606480075780
- Sales unit
- pcs
- Range of product
- Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar 12
- Product compatibility
- ATV12H075F1; ATV12HU15M2; ATV12HU22M2
- Product specific application
- Radio interference input filter
- Product weight
- 1.455 kg
- Standards
- Environment 1 category C2 IEC 61800-3; Environment 1 category C3 IEC 61800-3; Environment 2 category C3 IEC 61800-3
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.000 cm
- Package 1 Width
- 38.500 cm
- Package 1 Length
- 19.000 cm
- Package 1 Weight
- 990.000 g
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 24
- Package 2 Height
- 75.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 32.500 kg
- Country of origin
- HU
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480075780
- SAP 1000260611
- Code 81152131
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Rear connection kit - vertical or horizontal - Masterpact MTZ1 06-16 - 4P fixed LV833585SP
Schneider Electric
Schneider Electric Connection, Linergy FM, 200A, to connect Linergy BS multi-stage busbar to Linergy FM device feeder, set of 4 LVS04024
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 40A, 440V AC 50/60Hz coil, screw clamp terminals LC1D40AR7
Schneider Electric
NG125N/C 63-2 Modular Power Switch
18628
Schneider Electric
Schneider Electric Power plug-in relay, 15 A, 2 CO, 120 V AC RPM21F7
Schneider Electric
Schneider Electric Push button flush mounted, Harmony XB4, metal, white, 30mm, spring return, unmarked, 1NO XB4FA11
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X500X320 IP44 NSYPLAZT753G
Schneider Electric

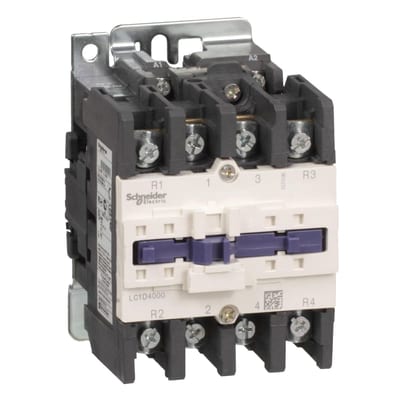

Schneider Electric TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A 120 V AC 50/60 Hz coil LC1D40008G7
