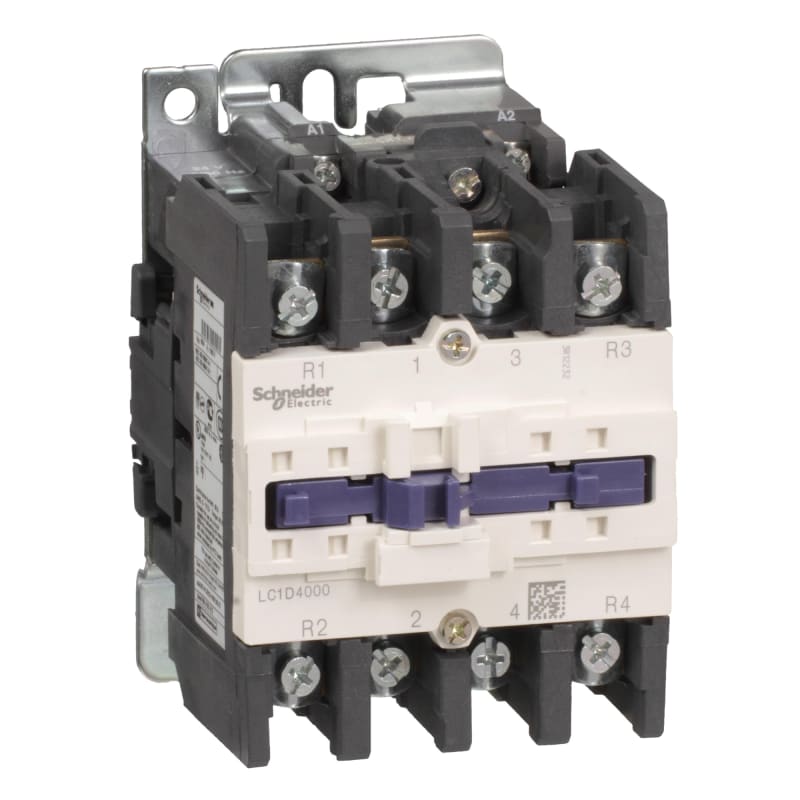

Schneider Electric TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 <= 440 V 60 A 120 V AC 50/60 Hz coil LC1D40008G7

Schneider Electric LC1D40008G7 — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. 4-pole contactors with AC coil for motor operation and for non-inductive loads.

Manufacturer part number (MPN)

LC1D40008G7

EAN / GTIN

3389110265422

HS code

8536.90

Sales unit

pcs

Contact configuration

2 NO / 2 NC

Range

TeSys

Range of product

TeSys Deca

Product or component type

Contactor

Device short name

LC1D

Contactor application

Resistive load

Utilisation category

AC-1

Poles description

4P

[Ue] rated operational voltage

Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC

[Ie] rated operational current

60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

[Uc] control circuit voltage

120 V AC 50/60 Hz

Compatibility code

LC1D

Pole contact composition

2 NO + 2 NC

Protective cover

Without

[Ith] conventional free air thermal current

60 A (at 60 °C) for power circuit

Irms rated making capacity

800 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

800 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current

320 A 40 °C - 10 s for power circuit; 720 A 40 °C - 1 s for p

HS Code

8536.90

• EAN 3389110265422
• SAP 1200502720
• Code 82626410
