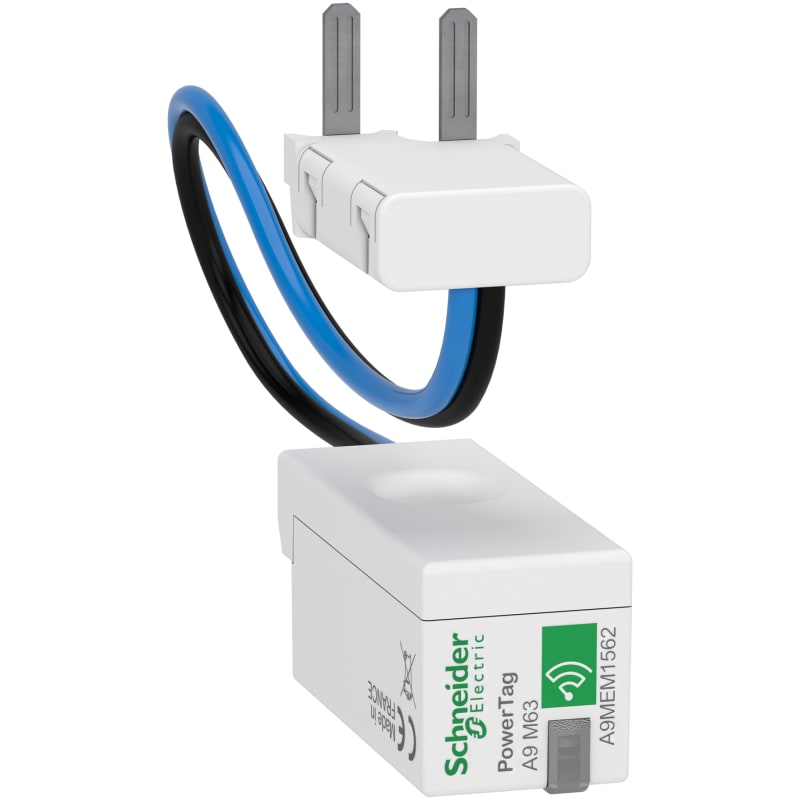

Schneider Electric energy sensor, PowerTag phaseNeutral 63A 1P+N bottom position A9MEM1562

Schneider Electric A9MEM1562 PowerTag iC40 1PN 63A below.

Manufacturer part number (MPN)

A9MEM1562

EAN / GTIN

3606481380418

Sales unit

pcs

Package quantity

30 pcs

Range of product

PowerLogic

Product name

PowerTag A9 P63

Product or component type

Energy sensor

Poles

1P + N

Maximum current [Imax]

63 A

[Ib] Basic current

10 A

Starting current

40 mA

Saturation current

130 A

Product specific application

Overload alarm; Cost allocation; Load monitoring; Circuit monitoring; Energy management

Concentrator compatibility

EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Wiser hub generation 2; Acti9 Smartlink SI B; Acti9 Smartlink SI D; Acti9 PowerTag Link; Acti9 PowerTag Link HD

Application

Buildings: breaker voltage monitoring; Buildings: cost allocation; Buildings: overload alarm

Range compatibility

Acti9 Vigi C40; Acti9 Acti9 DT40; Acti9 Acti9 iDPN (China version); Acti9 Acti9 iDPN; Acti9 Vigi DT40; DuoLine DuoLine D'clic XP; Acti9 Acti9 iC40; Acti9 Acti9 C40 Vigi; Acti9 Acti9 C40; Acti9 Acti9 DT40 Vigi; Acti9 Acti9 iDPN Vigi; Multi9 Multi9 N40 Vigi; DuoLine DuoLine D'clic Vigi; Acti9 Acti9 iCV40; Multi9 Multi9 N40; Acti9 Vigi iDPN; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40; Easy9 Easy9 MCB; Easy9 Easy9 RCBO

Type of measurement

Current; Active power; Active energy; Power factor; Voltage

Accuracy class

Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12

Mounting location

Bottom

Mounting support

On circuit breaker

Connection pitch

9 mm Ph/N

Product destination

Switchboard

Event management

Voltage loss with measured current at voltage loss

Transmission support medium

Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

PhaseNeutral

Mounting mode

By screws (terminals)

Electrical connection (voltage sensing & power supply)

Connector tooth

Cable cross section

1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²

supply voltage

200...240 V AC, +/- 20 %

Network frequency

50 Hz; 60 Hz

Maximum power consumption

1 VA

Standards

IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1

Product certifications

IEC; DNV Marine

Height

Sensor element: 20 mm; Base unit: 8 mm

Width

Sensor element: 18 mm; Base unit: 18 mm

Depth

Sensor element: 44.5 mm; Base unit: 28 mm

Product weight

18 g

Colour

White (RAL 9003)

Compatibility code

PowerTag A9 P63

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Overvoltage category

III conforming to IEC 61010-1

Measurement category

Category III conforming to IEC 61010-2-030

IP degree of protection

IP20 conforming to IEC 60529

IK degree of protection

IK05

Pollution degree

3

Relative humidity

0…95 % at 45 °C conforming to IEC 60721-3-3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311

environmental characteristics

Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use

Number of Units in Package 1

1

Number of Units in Package 2

48

Warranty (in months)

18

Mounting method

Plug-in technique

Model

Direct measurement

Suitable for

Purchase

Type of indication

None

Max. current (Imax)

63 A

Width in number of modular spacings

1

Type of meter

Electronic

Degree of protection (IP)

IP20

Energy type

Effective power and reactive power

Tariff type

One-tariff

Escapement mechanism

No

Calibrated

Yes

Approval

Domestic

Pulse output

None

Pole type

Single phase

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal current (In)

63 A

Country of origin

Latvia

HS Code

8504.40
