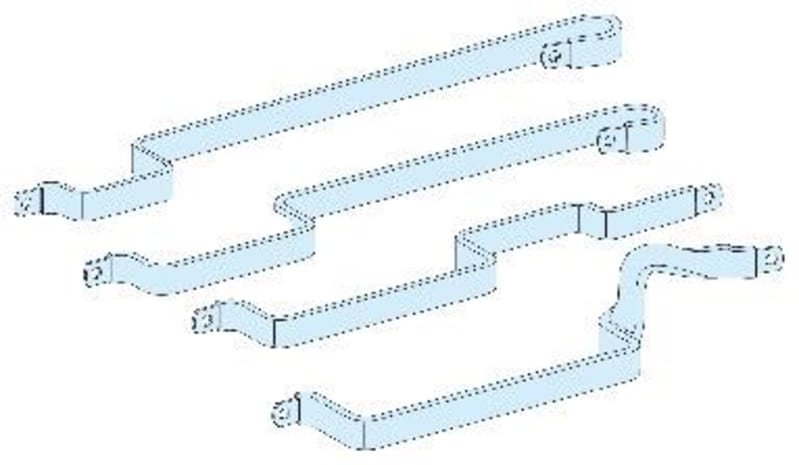

Schneider Electric Connection, Linergy FM, 200A, to connect Linergy BS multi-stage busbar to Linergy FM device feeder, set of 4 LVS04024
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04024 Connections-set a 4 pcs-200A-connection of Linergy BS busbar for Linergy FM(Multiclip).
Technical Specifications
- Manufacturer part number (MPN)
- LVS04024
- EAN / GTIN
- 3606481883773
- Sales unit
- pcs
- Rated current
- 200 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy FM
- Accessory / separate part category
- Current distribution accessory
- Provided equipment
- Fixing screws
- Standards
- IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy FM distribution block; Linergy BS busbar
- Poles description
- 4P
- installation description
- Cubicle duct - width 300 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- Installed device
- Linergy FM 200 A
- [Ie] rated operational current
- 200 A
- Colour
- Anthracite grey (RAL 7016)
- Length
- 570 mm
- Product weight
- 2.02 kg
- Quantity per set
- Set of 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 36
- Warranty (in months)
- 18
- RAL-number
- 7016
- Country of origin
- France
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 3606481883773
- SAP 1200546786
- Code 82879573
Product Documentation
