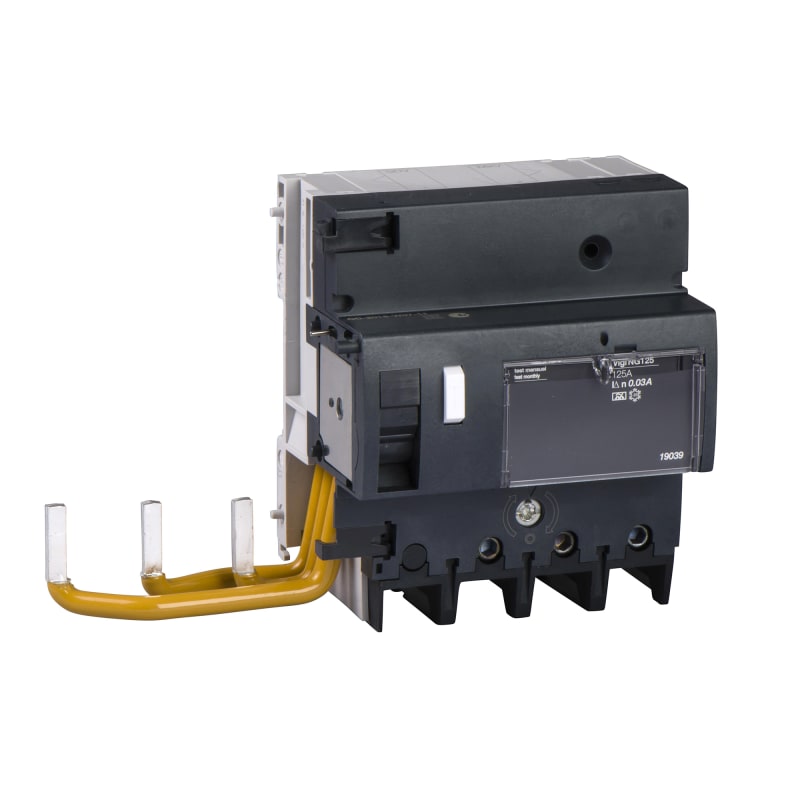

Schneider Electric NG125 - earth leakage add-on block - Vigi NG125 - 3P - 125A - 30MA

Schneider Electric 19039 Vigi NG125 3-125 30 mA.

Manufacturer part number (MPN)

19039

EAN / GTIN

3303430190394

Sales unit

pcs

Package quantity

8 pcs

Range

Acti9

Product name

Acti9 Vigi NG125

Product or component type

Add-on residual current device

Device short name

Vigi NG125

Poles description

3P

[In] rated current

125 A

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Standards

IEC/EN 60947-2:Annex B

Device location in system

Outgoer; Group incomer

Network frequency

50/60 Hz

[Ue] rated operational voltage

230...415 V AC 50/60 Hz

Residual current tripping technology

Voltage independent

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC/EN 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC/EN 60947-2

Mounting support

35 mm symmetrical DIN rail

Electrical connection to mcb

By screws

9 mm pitches

11

Height

118 mm

Width

180 mm

Depth

81 mm

Product weight

0.75 kg

Electrical durability

10000 cycles conforming to IEC/EN 60947-2

Connections - terminals

Tunnel type terminals 10…50 mm² flexible; Tunnel type terminals 16…70 mm² rigid

Wire stripping length

20 mm

Tightening torque

6 N.m

IP degree of protection

IP40 conforming to IEC/EN 60947-2

Pollution degree

3 conforming to IEC/EN 60947-2

Electromagnetic compatibility

8/20 µs impulse withstand, 3000 A conforming to IEC/EN 60947-2

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.500 cm

Package 1 Width

13.500 cm

Package 1 Length

25.500 cm

Package 1 Weight

899.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

8

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

7.719 kg

Country of origin

FR

Warranty (in months)

18

Nominal voltage

230–415 V

Nominal current

125 A

Rated fault current adjustable

No

Rated fault current

0.03 A

Delay adjustable

No

Number of poles

3

Leakage current type

A

Surge current capacity

3 kA

Frequency

50/60 Hz

Rated insulation voltage Ui

690 V

Rated impulse withstand voltage Uimp

8 kV

Connectable conductor cross section solid-core

16–70 mm²

Connectable conductor cross section multi-wired

10–50 mm²

Anti-nuisance tripping version

No

With interlocking device

Yes

Degree of protection (IP)

IP20

Ambient temperature during operating

25–60 °C

HS Code

8536.30
