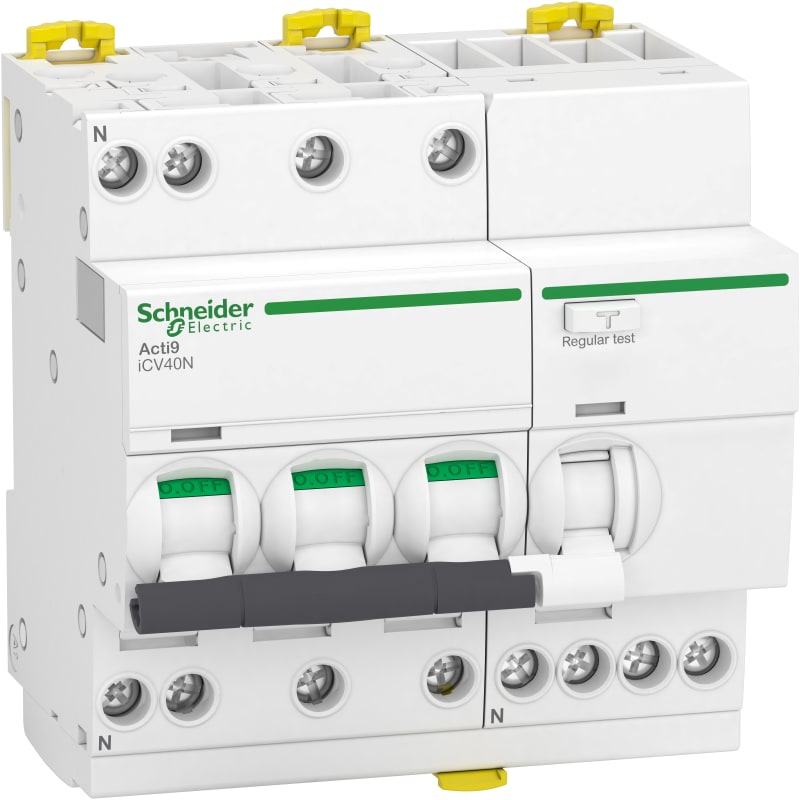

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 3P+N, 40A, C curve, 6000A, A-SI type, 30MA A9DF3740
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9DF3740 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Acti 9 iCV40N RCBO 3PN C 40A 30mA SI.
Technical Specifications
- Manufacturer part number (MPN)
- A9DF3740
- EAN / GTIN
- 3606481328892
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Rated current
- 40 A
- Range
- Acti9
- Product name
- Acti9 iCV40
- Product or component type
- Residual current breaker with overcurrent protection (RCBO)
- Device short name
- iCV40N
- Device application
- Distribution
- Poles description
- 3P + N
- Number of protected poles
- 3
- Neutral position
- Left
- [In] rated current
- 40 A
- Network type
- AC
- Network frequency
- 50/60 Hz
- Trip unit technology
- Thermal-magnetic
- Curve code
- C
- Earth-leakage sensitivity
- 30 mA
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Quality labels
- VDE; EAC
- Device location in system
- Outgoer
- [Ue] rated operational voltage
- 400 V AC 50/60 Hz
- Magnetic tripping limit
- 5...10 x In
- Residual current tripping technology
- Voltage independent
- Earth-leakage protection time delay
- Instantaneous
- Earth-leakage protection class
- Type A-SI (Super Immunised)
- Breaking capacity
- 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
- [Ics] rated service breaking capacity
- 6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
- Rated breaking and making capacity
- Idm 3000 A at 400 V AC 50/60 Hz conforming to EN 61009-2-1; Idm 500 A at 400 V AC 50/60 Hz conforming to IEC 61009-2-1
- Limitation class
- 3 conforming to EN/IEC 61009-2-1
- [Ui] rated insulation voltage
- 440 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 4 kV
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- Fault indication; ON/OFF indication
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Comb busbar and distribution block compatibility
- Top or bottom: tooth
- Connection pitch
- 18 mm between phases; 9 mm between phase and neutral
- 9 mm pitches
- 10
- Height
- 93 mm
- Width
- 90 mm
- Depth
- 73 mm
- Product weight
- 500 g
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles
- Locking options description
- Sealable; Padlocking device
- Connections - terminals
- Tunnel type terminals top or bottom 1…16 mm² rigid; Tunnel type terminals top or bottom 1…10 mm² flexible
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 2 N.m top or bottom
- Earth-leakage protection
- Integrated
- Standards
- EN/IEC 61009-2-1
- Product certifications
- CE
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3
- Overvoltage category
- III conforming to IEC 60364
- Electromagnetic compatibility
- 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61009-2-1
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481328892
- SAP 1200170807
- Code 82114798
Product Documentation
More from Schneider Electric
Schneider Electric

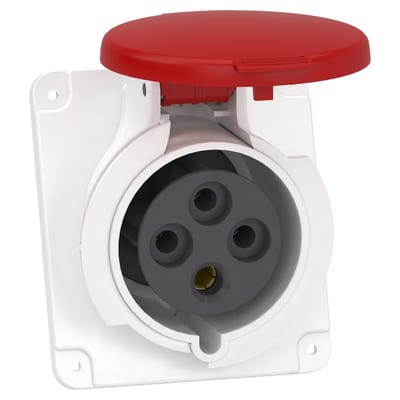

Schneider Electric Socket, Mureva PK, panel-mounted, angled, 32A, 3P+E, 400V, IP44 PKF32F434
Schneider Electric
ULP port module MTZ2/3 withdrawable
LV836387
Schneider Electric

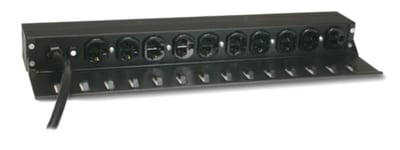

Cord Retention Bracket for Bas
AP9569
Schneider Electric

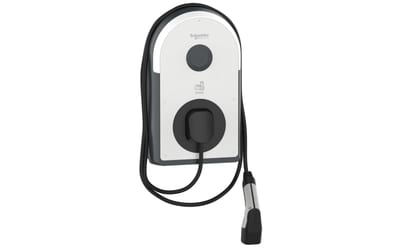

Schneider Electric Charging station, EVlink Pro AC/AC Metal, 22kW, 32A, 3P+N, T2 attached cable, RCD B-EV, MNx aux. EVB3S22NCB
Schneider Electric

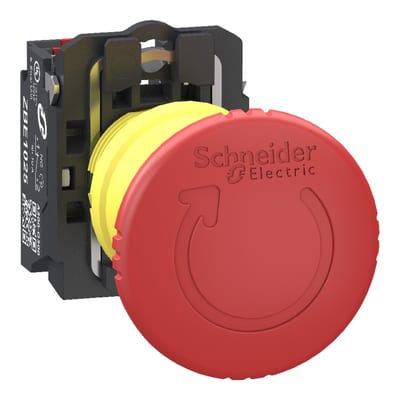

Schneider Electric Emergency stop switching off, Harmony XB5, grey plastic, red mushroom 40mm, 22mm, trigger turn to release, 2NC, push in XB5AS84445
Schneider Electric

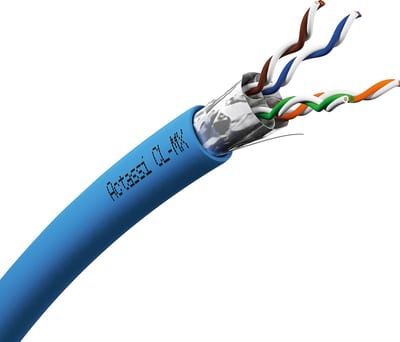

Schneider Electric Copper LAN cable, Actassi CL-MX, F/FTP, 2X4P, CAT6A, Euroclass C, 550MHz, LSFRZH, 500M VDICC68X228
Schneider Electric

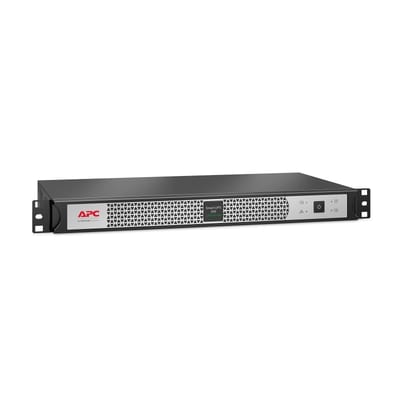

Schneider Electric APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4X IEC C13 outlets, Network Card, Short Depth SCL500RMI1UNC
Schneider Electric

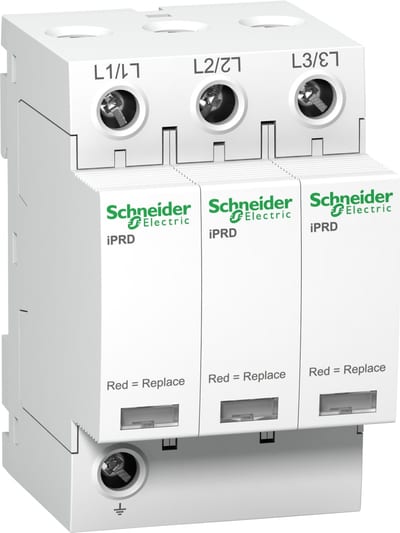

Schneider Electric IPRD8R modular surge arrester - 3P - IT - 460V - with remote transfert A9L08321
