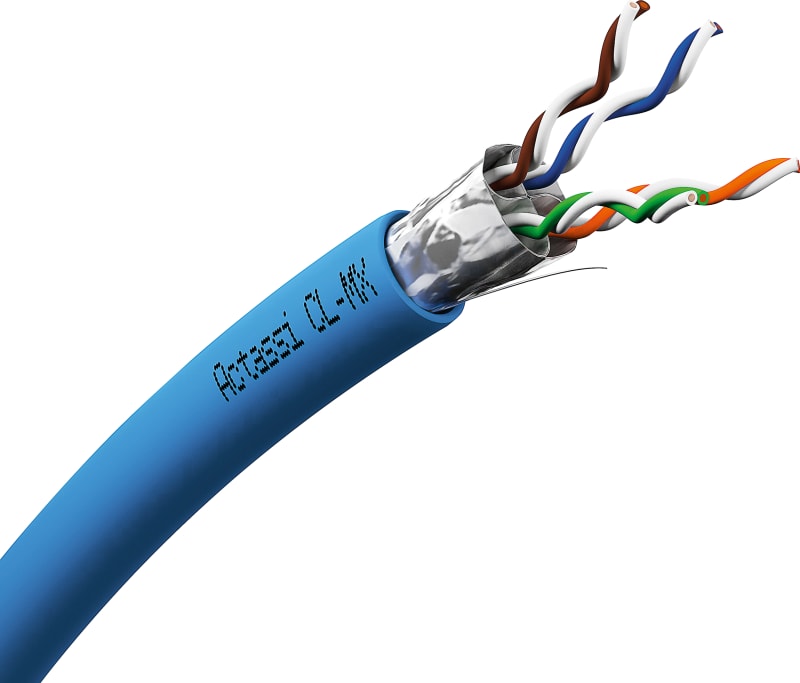

Schneider Electric Copper LAN cable, Actassi CL-MX, F/FTP, 2X4P, CAT6A, Euroclass C, 550MHz, LSFRZH, 500M VDICC68X228

Schneider Electric VDICC68X228 Actassi data cable CL-MX F/FTP Cat 6A 2x4p, PoE type 4, 500 m reel, blue halogen-free, fire class Cca.

Manufacturer part number (MPN)

VDICC68X228 EAN / GTIN: 3606481320384 HS code: 8544.42 Sales unit: m Package quantity: 500 m Range: Actassi Product or component type: Copper cable Cable packaging: drum of 500 m Colour tint: Blue Cable shielding type: F/FTP with exclusive patented metallic crossfiller Type of cable: 2x4 twisted-pairs cable Communication network category: 6A remote powering: PoE 15W (Power over Ethernet); PoE+ 30W (Power over Ethernet Plus); 4PPoE 100W (Power over Ethernet) Communication network type: 10GBASE-T minimum return loss: Guaranteed: 20.1 dB at 100 MHz typical: 24.2 dB; Guaranteed: 17.3 dB at 250 MHz typical: 22 dB; Guaranteed: 17.3 dB at 500 MHz typical: 20.3 dB Attenuation: Guaranteed: 19.1 dB Typical: 17.5 dB @ 100 MHz; Guaranteed: 31.1 dB Typical: 28.4 dB @ 250 MHz; Guaranteed: 45.3 dB Typical: 41.4 dB @ 500 MHz Power sum near-end crosstalk [PSNEXT]: Guaranteed: 62.3 dB Typical: 71.0 dB at 100 MHz ; Guaranteed: 56.3 dB Typical: 64.2 dB at 250 MHz ; Guaranteed: 51.8 dB Typical: 59.1 dB at 500 MHz Attenuation to Crosstalk Ratio Far-end [ACRF]: Guaranteed: 38 dB Typical: 54.7 dB at 100 MHz ; Guaranteed: 30 dB Typical: 46.6 dB at 250 MHz ; Guaranteed: 24 dB Typical: 40.5 dB at 500 MHz Power sum attenuation crosstalk ratio far-end [PSACRF]: 35 dB at 100 MHz; 27 dB at 250 MHz; 21 dB at 500 MHz Near end crosstalk [NEXT]: Guaranteed: 65.3 dB Typical: 85.5 dB at 100 MHz ; Guaranteed: 59.3 dB Typical: 83.1 dB at 250 MHz ; Guaranteed: 54.8 dB Typical: 60.1 dB at 500 MHz Coupling attenuation: >= 75 dB from 30…100 MHz conforming to IEC 61156-5, ed. 2 type Ib; >= 75 - 20 x log10(f / 100) dB from 100…1000 MHz conforming to IEC 61156-5, ed. 2 type Ib Transfer impedance: <= 10 mOhm/m at 1…10 MHz conforming to IEC 61156-5, ed. 2 (grade 1); <= 30 mOhm/m at 30 MHz conforming to IEC 61156-5, ed. 2 (grade 1); <= 60 mOhm/m at 100 MHz conforming to IEC 61156-5, ed. 2 (grade 1) Input impedance: 100 Ohm Maximum loop resistance: 143.2 Ohm per 1000 m Segregation class: Class c conforming to EN 50174-2 Maximum resistance unbalance: 2 % Pulling force: 200 N Bending radius: minimum bending radius during installation: 8 x overall diameter; minimum bending radius after installation: 4 x overall diameter material: Solid bare copper: conductor; PE (polyethylene): wire insulation; Metallic crossfiller: screen; Tinned copper: drain wire; PE (polyethylene): sheath Euroclass level: Cca s1 d1 a1 Nominal velocity propagation: 82 % linear conductor resistance: 71.6 mΩ/m AWG gauge: 23 AWG Calorific value: 1568 MJ/km Cable outer diameter: 7.7 mm Width: 15.4 mm Cable length: 500 m Cable weight: 126 kg / 1 km Ambient air temperature for installation: 0…50 °C Ambient air temperature for storage: -20…60 °C Ambient air temperature for operation: -20…60 °C Directives: 2006/95/EC - low voltage directive; 305/2011/EU - construction product regulation Flame retardance: LSFRZH Standards: ISO/IEC 11801-ed. 3 performance; EN 50173-1 performance; EN 50174-1 performance; ANSI/TIA/EIA-568-C.2 performance; IEC 61156-5-ed. 2.1 performance; EN 50288-10-1 performance; ISO/IEC 14763-2 installation standards; EN 50174-2 installation standards; IEC 60332-1 flame propagation characteristics; IEC 60332-3C fire resistance; IEC 60754-1; IEC 60754-2 acidity of combustion gases; IEC 61034 smoke generation Number of Units in Package 1: 1 Number of Units in Package 2: 4 Warranty (in months): 18

HS Code

8544.42

• EAN 3606481320384
• SAP 1200032132
• Code 81446530
