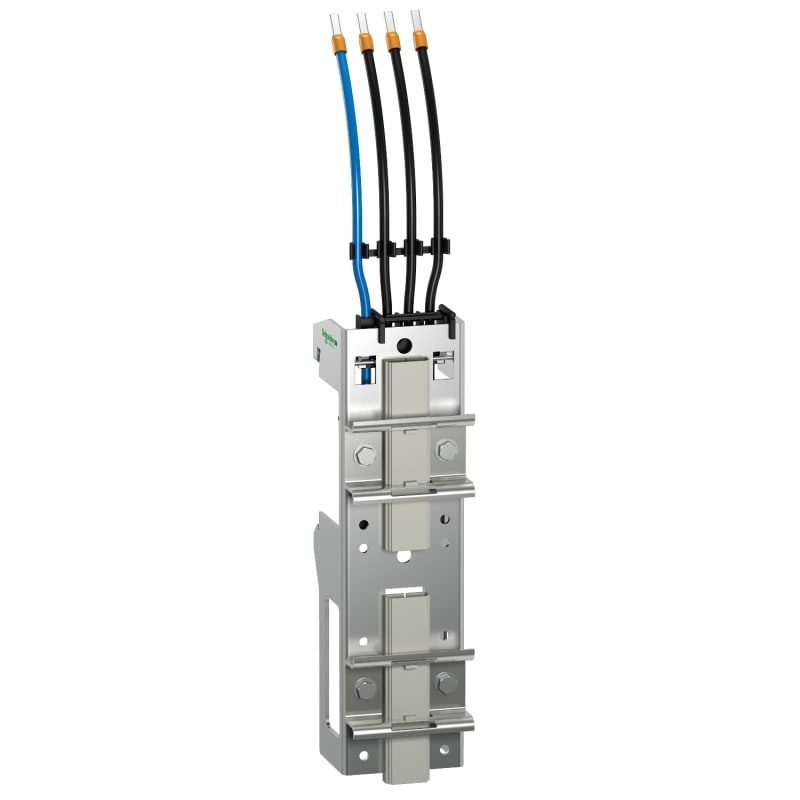

Schneider Electric Linergy Busbar Tap-Off Unit 25 A 3P+N

The Schneider Electric AK5PA242 is a 25 A 3P+N tap-off unit for the Linergy busbar system with a cable branch and lockable mounting. It supports up to four 4 mm² conductors at 105 °C and provides 690 V rated insulation with IP20 protection. The RAL 7021 grey housing occupies six 9 mm pitches and is certified to IEC 60439 with UL, CSA, DNV and LROS approvals.

Manufacturer part number (MPN)

AK5PA242

EAN / GTIN

3389110356809

Sales unit

pcs

Package quantity

20 pcs

Rated current

25 A

Number of poles

3P+N

Range

Linergy

Product name

HK

Product or component type

Mounting plate

Poles description

3P + N

I²t on activation

200000 A².s

Number of cables

4 cable(s) 4 mm² at 105 °C

[Ith] conventional free air thermal current

25 A

Width

54 mm

Height

190 mm

Depth

61 mm

[Ui] rated insulation voltage

690 V conforming to IEC 60439-1

9 mm pitches

6

Product weight

0.23 kg

Standards

IEC 60439

Product certifications

UL; LROS (Lloyds register of shipping); CSA; DNV

Country of origin

FR

Warranty (in months)

18

Colour

Grey

RAL-number

7021

With locking

Yes

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Length

54 mm

Degree of protection (IP)

IP20

Branch off type

Cable

Rated voltage AC 50 Hz

400–690 V

Rated current AC 50 Hz

25 A

HS Code

7326.90
