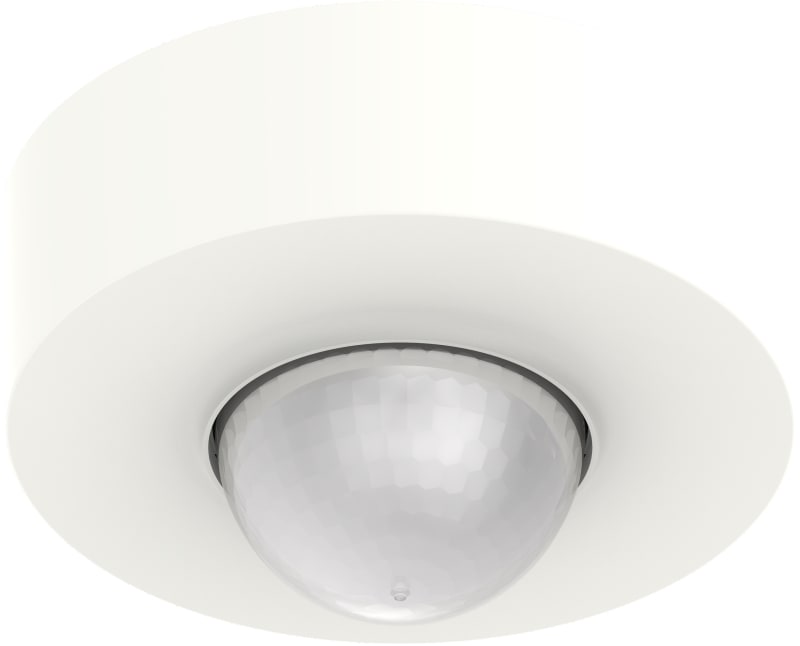

Schneider Electric KNX High Bay presence detector, Supply KNX 10 mA MTN6354-0019
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN6354-0019 KNX PIR 360 high ceiling surface.
Technical Specifications
- Manufacturer part number (MPN)
- MTN6354-0019
- EAN / GTIN
- 3606489818746
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Range
- SpaceLogic KNX
- Product or component type
- Presence detector
- Bus type
- KNX
- Colour tint
- White
- Power supply input current
- 10 mA
- Device presentation
- Complete product
- Number of channels
- 4
- Protection type
- Creep zone protection
- Type of setting
- Light sensitivity adjustable; Time adjustment
- Detection face
- Frontal: 5 m; Lateral: 18 m
- Detection angle
- 360° horizontal
- Material
- Plastic glossy
- surface treatment
- Untreated
- Device mounting
- Surface; Ceiling
- Mounting height
- 12 m
- IP degree of protection
- IP54
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 13
- Warranty (in months)
- 18
- Ceiling built-in mounting without installation box
- No
- Background monitoring
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Suitable for ceiling mounting
- No
- Compatible with Casambi
- No
- With acoustic sensor
- No
- With connection cable
- No
- Voltage supply over bus
- No
- Suitable for wall mounting
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Model
- Presence detector
- Mounting method
- Surface mounted
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- Transparent
- No
- With bus connection
- Yes
- Substation input
- No
- Creep-under protection
- Yes
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- Yes
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- Yes
- Switch-off delay self-learning
- Yes
- DALI-2 certified
- No
- Optimum mounting height
- 12 m
- Max. reach sideways
- 18 m
- Max. reach frontally
- 18 m
- Diameter reach on floor
- 36 m
- Detection angle vertical
- 180 °
- Detection angle horizontal
- 0–360 °
- Min. switch-on time
- 60 s
- Max. duty cycle
- 255 min
- Country of origin
- Romania
- Min. depth of built-in installation box
- 0 mm
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606489818746
- SAP 1200168709
- Code 82268879
Product Documentation
More from Schneider Electric
Schneider Electric

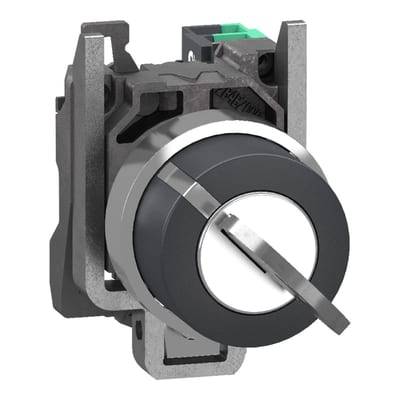

Schneider Electric Key switch selector, Harmony XB4, metal, black, 22mm, key 455, 2 positions, stay put, key release left, 1 NO, push in XB4BG215
Schneider Electric

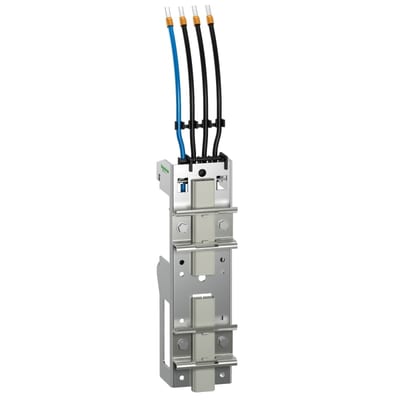

Schneider Electric Linergy Busbar Tap-Off Unit 25 A 3P+N
AK5PA242
Schneider Electric
Schneider Electric Socket, Mureva PK, panel-mounted, fast connection, 32A, 3P+E, 400V, IP44 PKY32F434
Schneider Electric

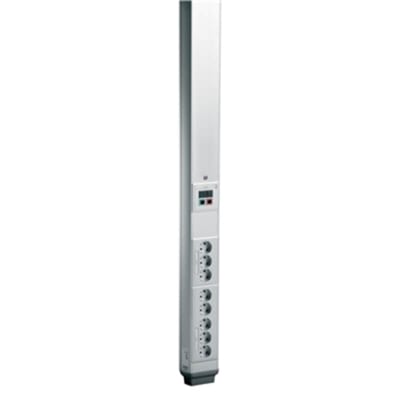

Schneider Electric POLE-T10 Pre-Wired Service Pole White
5863576
Schneider Electric

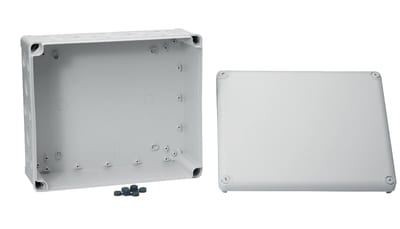

Schneider Electric Mureva BOX - junction box - knock-outs 24XM20/25+8XM25/32 - 325X175X120 mm ENN05099
Schneider Electric

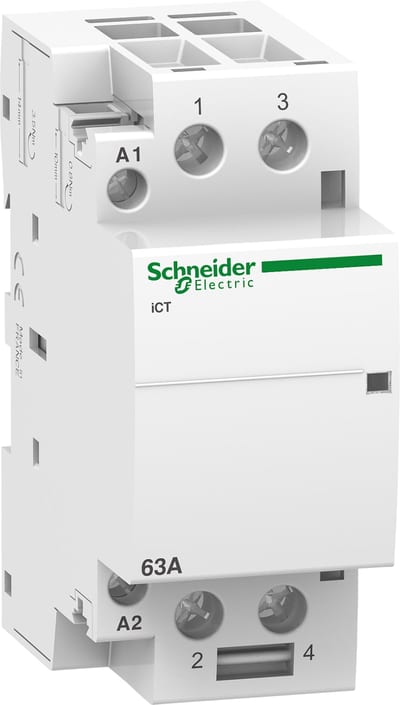

Schneider Electric iCT 63A 2NO 24V 50Hz contactor A9C20162
Schneider Electric

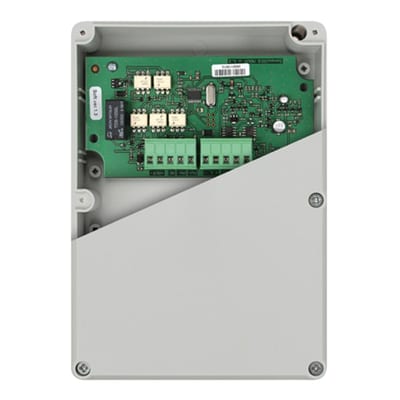

Esmi Impresia kcoverekurs module
