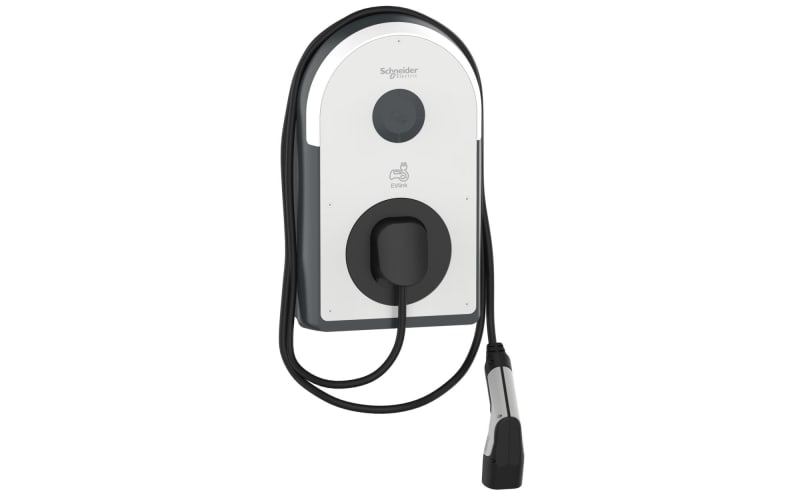

Schneider Electric Charging station, EVlink Pro AC/AC Metal, 22kW, 32A, 3P+N, T2 attached cable, RCD B-EV, MNx aux. EVB3S22NCB
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric EVB3S22NCB EVlink Pro AC, 22kW, FK, Residual current circuit breaker Type B.
Technical Specifications
- Manufacturer part number (MPN)
- EVB3S22NCB
- EAN / GTIN
- 3606482213258
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 22 kW
- Range
- EVlink
- Product name
- EVlink Pro AC
- Product or component type
- Charging station
- Device short name
- EVB3
- Communication network type
- Ethernet; Bluetooth; 3G/4G modem optional; Modbus TCP
- Connector type
- 2 RJ45 for Ethernet LAN connection
- Communication port protocol
- OCPP 1.6
- Communication service
- JSON smart charging for OCPP 1.6
- Operating mode
- Clustered architecture; Standalone
- Function available
- Diagnosis capabilities; Charge detail records; Load management
- Range compatibility
- EVlink EcoStruxure EV Charging Expert; EVlink EVlink Pro AC Metal; EcoStruxure EcoStruxure EV Advisor
- Type of installation
- Indoor; Outdoor
- Provided equipment
- 1 residual current device (RCD) integrated; 1 MNx auxiliary contact integrated; 1 energy meter
- Accuracy class of energy meter
- Class 1
- Protection device type
- Residual current device (RCD)type B-EV (Electric Vehicle)
- Poles description
- 3P + N for power circuit
- Mounting mode
- Wall-mounted; Wall-mounted (kit enclosure); Floor-standing (pedestal); Floor-standing (kit enclosure)
- Mounting support
- Pedestal, to be ordered separately; Kit enclosure, to be ordered separately
- cable entry
- Bottom entry; Top entry; Rear entry
- [Us] rated supply voltage
- 380...415 V AC 50/60 Hz
- Nominal output power
- 22 kW 32 A 380...415 V
- Socket number
- 1
- Output type
- Front side T2 attached cable / silver plated contacts 5 m
- Access control system
- Badge RFID conforming to ISO/IEC 14443 A and B; Badge RFID conforming to ISO/IEC 15693; Badge NFC; Free access
- RFID compatible technology
- MIFARE Classic; MIFARE Ultralight; MIFARE Plus
- NFC frequency
- 13.56 MHz
- NFC tag type
- Type 1; Type 2; Type 4; Type 5
- Earthing system
- TT; TN-S; TN-C-S; IT (single phase network only allowed, 400V 3 phases network forbidden)
- Condition of use
- Single phase distribution or 3x230VAC (ph-ph) distribution forbidden
- Number of inputs
- 3
- Input type
- Binary for power limitation closing contact; Binary for delayed charging closing contact; Binary for vehicle detection closing contact
- Control type
- can be controlled by remote
- Local signalling
- 1 green LED light strip, function: available; 1 blue LED light strip, function: charging; 1 red LED light strip, function: fault indication
- Standards
- EN/IEC 61851-1:ed. 3; EN/IEC 62196-1:ed. 2; EN/IEC 62196-2:ed. 1; EN 61000-6-2:2019; EN 61000-6-3:2007; EN 61000-6-3:2011/A1; IEC 60884-1; NF C 61314; ISO 15118
- Product certifications
- EV Ready; CE
- Operating altitude
- 2000 m without derating
- Height
- 529 mm
- Width
- 317 mm
- Depth
- 183 mm
- Product weight
- 10 kg
- Colour
- Front face: white (RAL 9003); Housing: dark grey (RAL 7016); Back part: black (RAL 9005)
- IP degree of protection
- IP55
- IK degree of protection
- IK10
- Ambient air temperature for operation
- -30…50 °C
- Ambient air temperature for storage
- -40…80 °C
- Relative humidity
- 5…95 %
