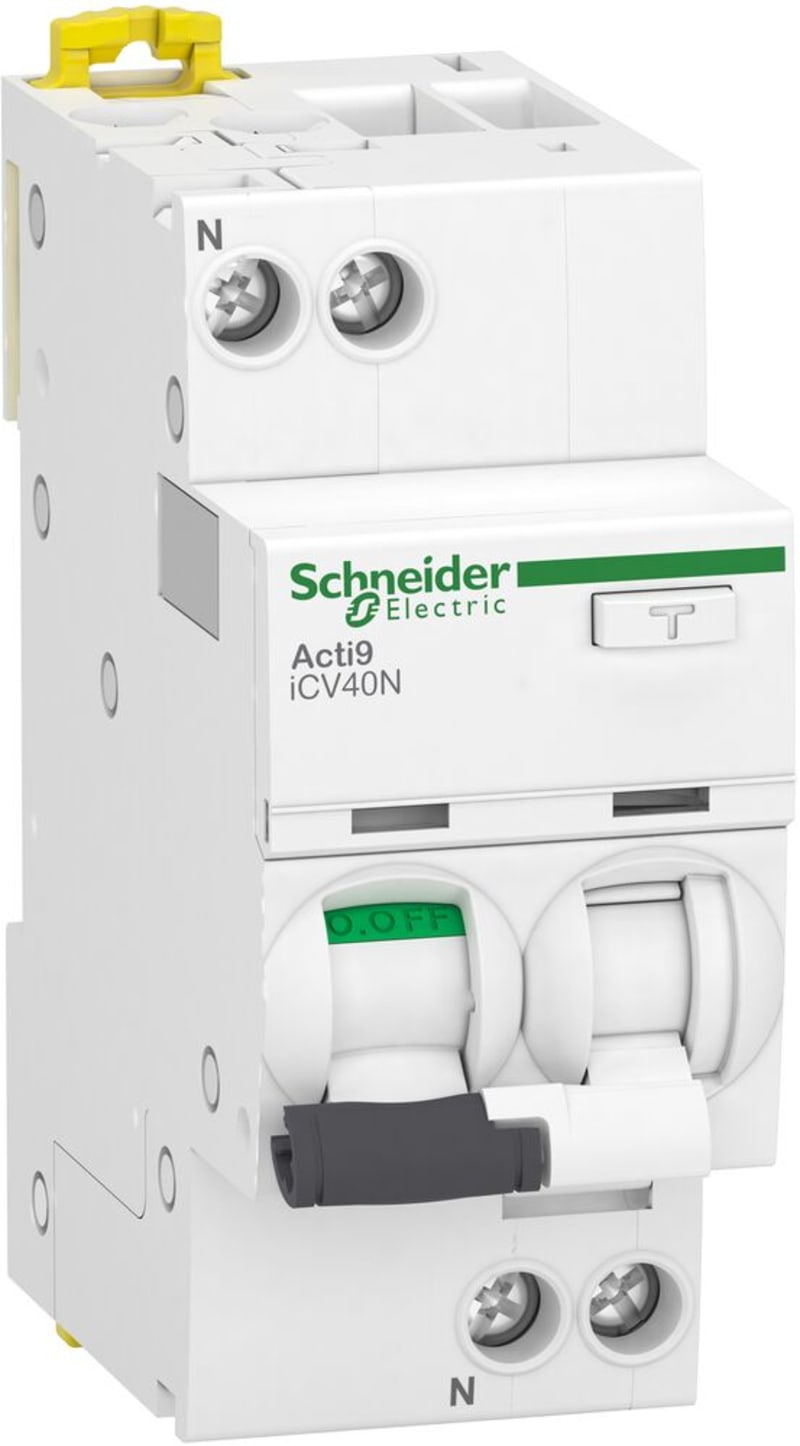

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 1P+N, 25A, C curve, 6000A, A-SI type, 30MA A9DF3625
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9DF3625 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Acti 9 iCV40N RCBO 1PN C 25A 30mA SI.
Technical Specifications
- Manufacturer part number (MPN)
- A9DF3625
- EAN / GTIN
- 3606489444419
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 25 A
- Range
- Acti9
- Product name
- Acti9 iCV40
- Product or component type
- Residual current breaker with overcurrent protection (RCBO)
- Device short name
- iCV40N
- Device application
- Distribution
- Poles description
- 1P + N
- Number of protected poles
- 1
- Neutral position
- Left
- [In] rated current
- 25 A
- Network type
- AC
- Network frequency
- 50/60 Hz
- Trip unit technology
- Thermal-magnetic
- Curve code
- C
- Earth-leakage sensitivity
- 30 mA
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Quality labels
- VDE; EAC; RCM; KEMA-KEUR
- Device location in system
- Outgoer
- [Ue] rated operational voltage
- 230 V AC 50/60 Hz
- Magnetic tripping limit
- 5...10 x In
- Residual current tripping technology
- Voltage independent
- Earth-leakage protection time delay
- Instantaneous
- Earth-leakage protection class
- Type A-SI (Super Immunised)
- Breaking capacity
- 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
- [Ics] rated service breaking capacity
- 6000 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
- Rated breaking and making capacity
- Idm 6000 A at 230 V AC 50/60 Hz conforming to EN 61009-2-1; Idm 500 A at 230 V AC 50/60 Hz conforming to IEC 61009-2-1
- Limitation class
- 3 conforming to EN/IEC 61009-2-1
- [Ui] rated insulation voltage
- 400 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 4 kV
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- Fault indication; ON/OFF indication
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Comb busbar and distribution block compatibility
- Top or bottom: tooth
- Connection pitch
- 9 mm between phase and neutral
- 9 mm pitches
- 4
- Height
- 85 mm
- Width
- 36 mm
- Depth
- 73 mm
- Product weight
- 210 g
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 20000 cycles
- Locking options description
- Padlocking device; Sealable
- Connections - terminals
- Tunnel type terminals top or bottom 1…16 mm² rigid; Tunnel type terminals top or bottom 1…10 mm² flexible
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 2 N.m top or bottom
- Earth-leakage protection
- Integrated
- Standards
- EN/IEC 61009-2-1
- Product certifications
- CE
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3
- Overvoltage category
- III conforming to IEC 60364
- Electromagnetic compatibility
- 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61009-2-1
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
