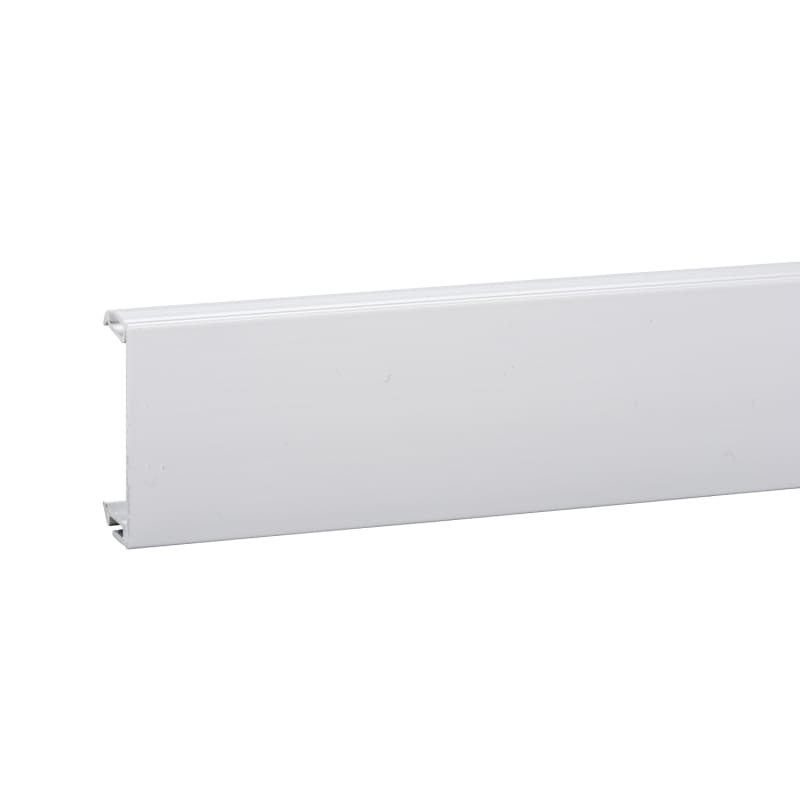

Schneider Electric OptiLine 45 - front cover - 45 mm - PVC - polar white ISM10900P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM10900P OptiLine 45 front cover 45 mm for all OptiLine 45 wall trunking, L=2 m, PVC, white.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10900P
- EAN / GTIN
- 3606480681905
- Sales unit
- m
- Package quantity
- 24 m
- Range of product
- OptiLine 45
- Cabling installation system
- Trunking
- product type
- Front cover
- colour
- Polar white (RAL 9003)
- quantity package 1 / unit
- 24 m
- Trunking material
- Plastic
- Trunking dimension
- 185 x 55 mm; 165 x 55 mm; 75 x 55 mm; 95 x 55 mm; 140 x 55 mm
- fixing mode
- Snap-fitted
- product material
- PVC (polyvinyl chloride)
- Length
- 2000 mm
- Height
- 45 mm
- Width
- 16 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-1:2013/A1; EN 50085-2-1:2006; EN 50085-2-1:2011/A1
- operating temperature
- -25…60 °C
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Number of Units in Package 1
- 2
- Number of Units in Package 2
- 24
- Number of Units in Package 3
- 1440
- Warranty (in months)
- 18
- Model
- Smooth
- Halogen free
- No
- RAL-number
- 9010
- Surface protection
- Untreated
- Material quality
- Polyvinyl chloride (PVC)
- Material
- Plastic
- Mounting method cover
- Inner lying
- With protective foil
- Yes
- Mounting of cover
- Snap on
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480681905
- SAP 1200536259
- Code 82696557
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Harmony, Solid state relay, 35 A, DIN rail mount, zero voltage switching, input 90…280 V AC/DC, output 48...600 V AC SSD1A335M7C3
Schneider Electric
Schneider Electric Modicon TM3 - 4 analog inputs (screw) 24VDC TM3AI4
Schneider Electric
H. Rail Bracket 3200A 800 115mm
NSYBHS800L
Schneider Electric
Pilot Light Head White LED for ETI
ZB4BV013E
Schneider Electric
Schneider Electric PanelSet S3X stainless 316L, Scotch Brite® finish, H1200XW800XD300 mm. NSYS3X12830H
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40H, 1P+N, 32A, B curve, 10000A, A type, 30MA A9DG4632
Schneider Electric
Schneider Electric TeSys GV4 - thermal magnetic multifunction circuit breaker - 115A 3P - Everlink GV4PEM115N
Schneider Electric
Schneider Electric Active arc fault detection RCBO, ACTI9 Active ICV40N ARC, 1P+N, 16A, B curve, 30MA, type A-SI, 6000A A9TDEC616
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ISM10900P?
- ISM10900P can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ISM10900P.
- What is the HS code for ISM10900P?
- The customs tariff (HS) code for ISM10900P is 3925.90.
- Who manufactures ISM10900P?
- ISM10900P is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for ISM10900P?
- Yes — the ISM10900P datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ISM10900P?
- The minimum order quantity is 1.
- Is ISM10900P available?
- Yes — ISM10900P is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
