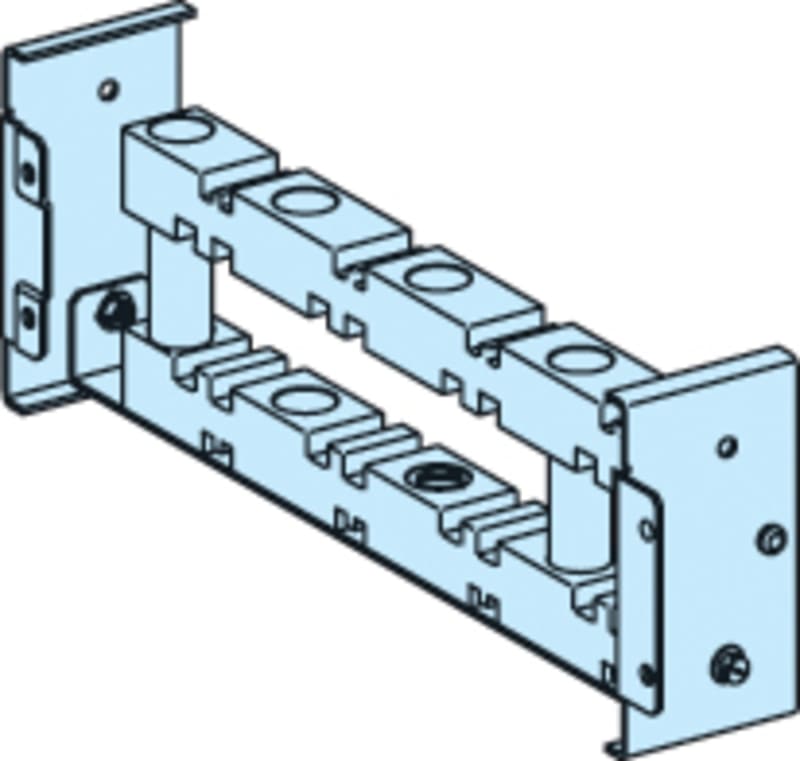

H. Rail Bracket 3200A 800 115mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYBHS800L Horizontal rail bracket up to 3200A - for vidde 800mm - skinneavstand 115mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYBHS800L
- EAN / GTIN
- 3606480211447
- Sales unit
- pcs
- Rated current
- 3200 A
- Range
- PanelSeT
- Accessory / separate part category
- Busbar accessory
- Product or component type
- Busbar support
- Anwendung
- Multi-purpose; Prisma application
- Enclosure nominal dimensions
- -
- Mounting location
- On structure of enclosure
- Mounting support
- Vertical uprights
- Busbar position
- Horizontal
- Range compatibility
- Linergy Linergy BS; Prisma Prisma POLAR WHITE
- Cubicle-device connection
- Linergy BS horizontal busbar - fixed
- Device composition
- fixing elements; 1 metal support; 2 insulating bar support
- Quantity per set
- Set of 1
- Material
- Bar support: plastic; Metal support: steel
- Fixing mode
- By fixing element
- Height
- 59.25 mm
- Width
- Fixing centers: 710 mm
- Depth
- 39 mm
- [In] rated current
- 3200 A
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 62
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 115 mm
- Max. rated current
- 3200 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480211447
- SAP 1200496784
- Code 82641082
Product Documentation
