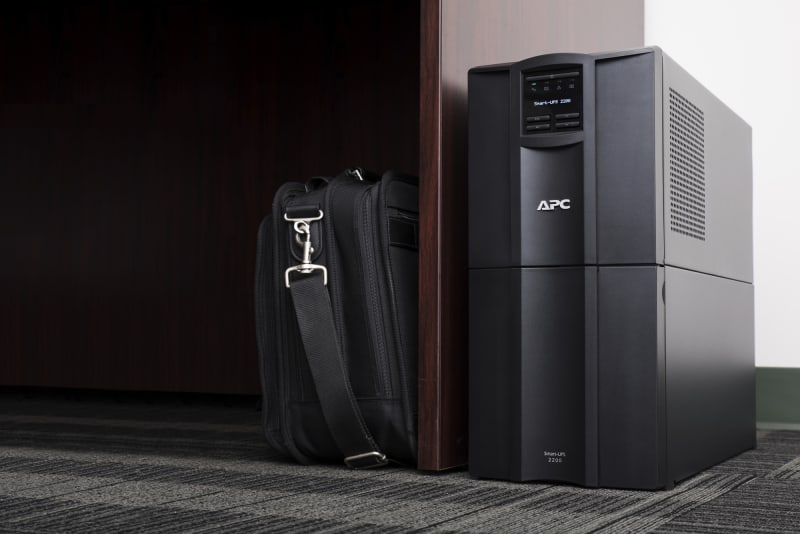

Schneider Electric APC Smart-UPS, Line Interactive, 2200VA, Tower, 230V, 8X IEC C13+2X IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD SMT2200IC

Schneider Electric SMT2200IC APC -UPS SMT 2,2kVA, Tower, 230V, out: 8x C13 2x C19, SmartConnect Port.

Manufacturer part number (MPN)

SMT2200IC

EAN / GTIN

0731304337317

Sales unit

pcs

Voltage

230 V

Presentation

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Main input voltage

230 V AC 1 phase

Other input voltage

220 V; 240 V

Input connection

IEC 60320 C20; CEE 7/7; BS 1363 British

Efficiency at full load

151...302 V adjustable; 160...286 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Other output voltage

220 V; 240 V

Rated power in W

1980 W

Rated power in VA

2200 VA

Output connection

8 IEC 60320 C13; 2 IEC Jumpers; 1 IEC 60320 C19

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

2200 VA

Maximum configurable power in W

1980 W

Transfer time

6 ms typical : 10 ms maximum

UPS topology

Line interactive

Waveform type

Its wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Replacement battery

RBC55

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Battery type

Lead-acid internal included

Control panel

Multifunction LCD status and control console

Emergency power off

Yes

Free slot

1

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

UPS connectivity

Serial port; USB port; SmartConnect port; Available expansion slot

Communication port support

SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

Software package

SmartConnect software for remote power monitoring feature availability varies by terms of use

Surge energy rating

365 J

Noise filtering

Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

0U

Number of cables

1

Color

Black

Height

435 mm

Width

197 mm

Depth

544 mm

Product weight

50.2 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

Yes

Provided equipment

USB cable

Number of power modules

0

Number of power module filled slots

0

Number of power module free slots

0

Additional specification

Cloud-enabled monitoring

Redundant

No

Range of product

Smart-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC; RCM; VDE; UK PSTI

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Acoustic level

45 dBA

Heat dissipation

275 Btu/h

Operating altitude

0...10000 ft

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

3 h

RBC quantity

1

Battery life

3…5 year(s)

Battery charging power

260 W rated

Number of Units in Package 1

1

Country of origin

PH

Warranty (in months)

24 Battery|36 UPS

HS Code

8504.40

• EAN 0731304337317
• SAP 1200189101
• Code 82188332
