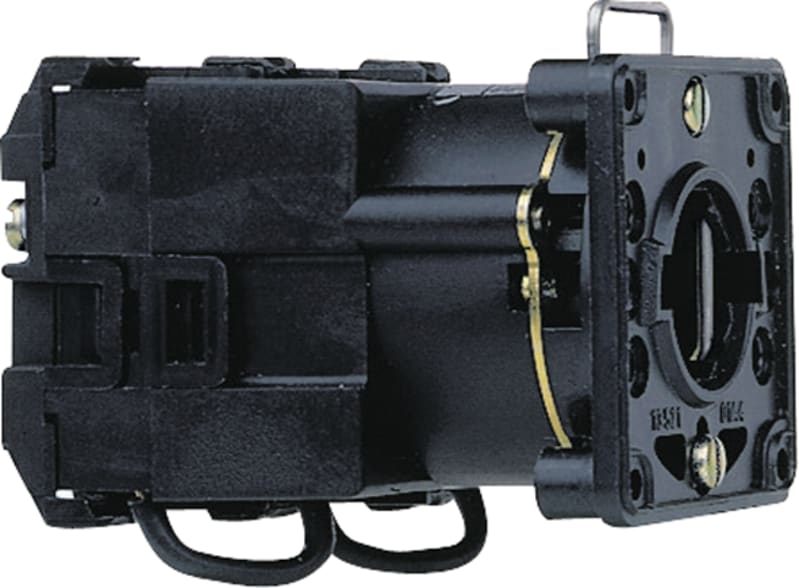

CAM Switch,Switch (K2C003A)

Schneider Electric K2C003A Cam Switch Of/On 3-POLE 45º.

Manufacturer part number (MPN)

K2C003A

EAN / GTIN

3389110446685

HS code

8536.90

Sales unit

pcs

Package quantity

16 pcs

Range of product

Harmony K

Product or component type

Cam switch body

Component name

K2

[Ith] conventional free air thermal current

20 A

Sub-assembly composition

Contact blocks + fixing plate

Cam switch function

Switch

Off position

With Off position

Poles description

3P

Switching positions

Right: 0° - 45°

Mounting location

Front

fixing mode

Ø 22 mm hole

Bezel material

Plastic

Switching angle

45 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

[Ithe] conventional enclosed thermal current

16 A

Rated operational power in W

1300 W AC-3, 230 V 1 phase conforming to IEC 947-3; 14000 W AC-21, 400 V 3 phases conforming to IEC 947-3; 17000 W AC-21, 500 - 660 V 3 phases conforming to IEC 947-3; 2200 W AC-3, 230 V 3 phases conforming to IEC 947-3; 2200 W AC-3, 400 V 1 phase conforming to IEC 947-3; 4000 W AC-23A, 230 V 3 phases conforming to IEC 947-3; 4000 W AC-3, 400 V 3 phases conforming to IEC 947-3; 4000 W AC-3, 500 V 3 phases conforming to IEC 947-3; 4000 W AC-3, 690 V 3 phases conforming to IEC 947-3; 5500 W AC-23A, 400 V 3 phases conforming to IEC 947-3; 5500 W AC-23A, 500 V 3 phases conforming to IEC 947-3; 5500 W AC-23A, 690 V 3 phases conforming to IEC 947-3; 8000 W AC-21, 230 V 3 phases conforming to IEC 947-3

[Ie] rated operational current AC

8 A at 400 V AC-3 3 phases conforming to IEC 947-3; 10.8 A at 400 V AC-23A 3 phases conforming to IEC 947-3; 14.6 A at 230 V AC-23A 3 phases conforming to IEC 947-3; 4.7 A at 690 V AC-3 3 phases conforming to IEC 947-3; 6.4 A at 690 V AC-23A 3 phases conforming to IEC 947-3; 6.5 A at 500 V AC-3 3 phases conforming to IEC 947-3; 8.3 A at 230 V AC-3 3 phases conforming to IEC 947-3; 8.9 A at 500 V AC-23A 3 phases conforming to IEC 947-3; 2 A at 500 V AC-15 conforming to IEC 947-5-1; 3 A at 400 V AC-15 conforming to IEC 947-5-1; 4 A at 230 V AC-15 conforming to IEC 947-5-1

Electrical durability

200000 cycles AC-23; 200000 cycles AC-3; 600000 cycles AC-15; 600000 cycles AC-21

Maximum operating rate

2.5 cyc/mn AC-21; 2.5 cyc/mn AC-23; 2.5 cyc/mn AC-3; 8.333 cyc/mn AC-15

Short-circuit current

10000 A

Short-circuit protection

20 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV in isolating function; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²; Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²

Mechanical durability

1000000 cycles

Product weight

0.105 kg

Standards

IEC 60947-3 for power circuit; IEC 60947-5-1 for control circuit; CENELEC EN 50013

Product certifications

CSA 240 V 3 hp 3 phases 2 -pole(s); UL 240 V 0.33 hp 1 phase 2 -pole(s); CSA 240 V 1 hp 1 phase; UL 240 V 1 hp 3 phases

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

Overvoltage category

Class II conforming to IEC 536; Class II conforming to NF C 20-030

Number of Units in Package 1

1

Number of Units in Package 2

16

Number of Units in Package 3

512

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90
