IC40N aut.fuse. 3P B 13A
Pricing
Request a quote
We reply within 24 hours
Product Description

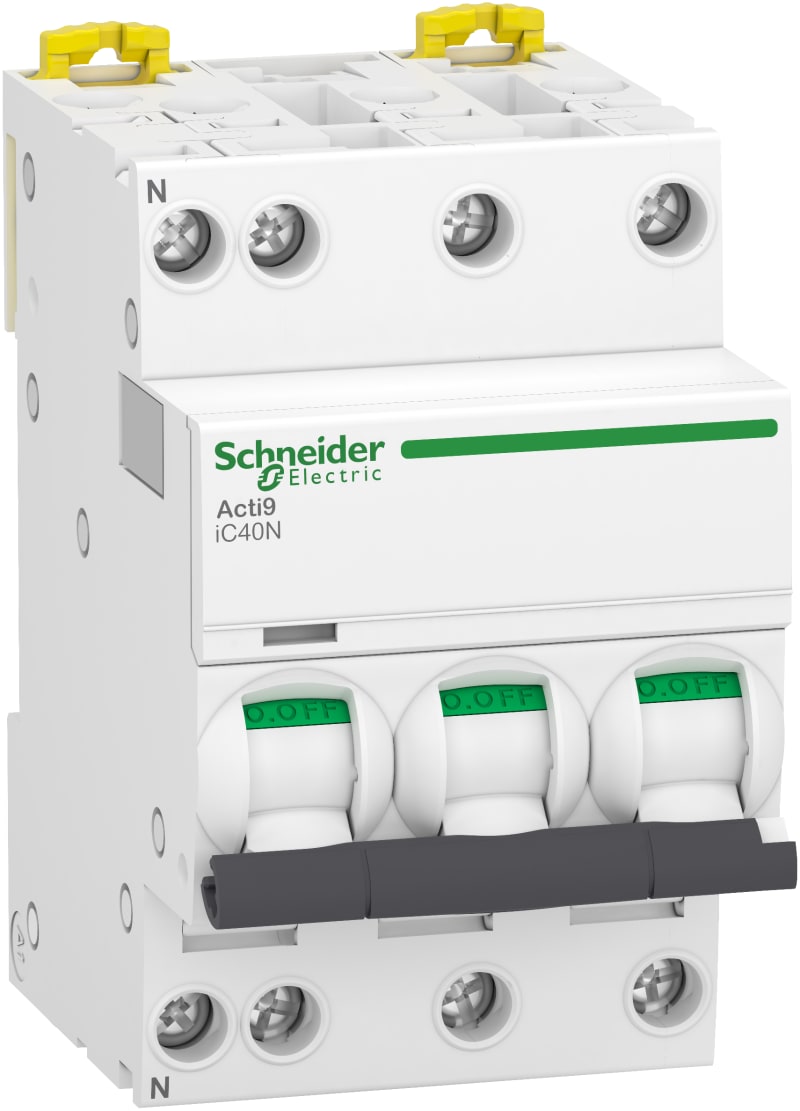

Schneider Electric A9P44713 Acti 9 iC40N miniature circuit breaker 3P B 13A - I2=1,45.
Technical Specifications
- Manufacturer part number (MPN)
- A9P44713
- EAN / GTIN
- 3606481326058
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 44 pcs
- Rated current
- 13 A
- Number of poles
- 3P
- Power loss
- 7.5 W
- Built-in depth
- 44 mm
- Release characteristic
- B
- Number of protected poles
- 3
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 440 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Frequency
- 50–60 Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 3
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 3
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25–70 °C
- Connectable conductor cross section multi-wired
- 1–10 mm²
- Connectable conductor cross section solid-core
- 1–16 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481326058
- SAP 1200722170
- Code 83838421
