WALL-Mount Cabinet S3D without PL 10X10X3
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D101030 WALL-MOUNT CABINET S3D WITHOUT PL 10x10x3.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D101030
- EAN / GTIN
- 3606480160349
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1000 mm
- Enclosure nominal width
- 1000 mm
- Enclosure nominal depth
- 300 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 2 cable gland plate; 1 door; 1 lock
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- BV; UL; GL; DNV; cUL
- Product weight
- 46 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 35.000 cm
- Package 1 Width
- 102.000 cm
- Package 1 Length
- 103.000 cm
- Package 1 Weight
- 43.600 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 3
- Package 2 Height
- 115.000 cm
- Package 2 Width
- 102.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 145.800 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 1000 mm
- Depth
- 300 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480160349
- SAP 1000089530
- Code 8581874
Product Documentation
More from Schneider Electric
Schneider Electric
Plinth 7035 PLAZ 500X535X310
NSYZZ553G
Schneider Electric
Push-button flush blue nedsenket
ZB4FA66
Schneider Electric
Mounting Plate Metal 300X600
NSYMM36SB
Schneider Electric
Push-Button Head Pressure/Pressure Yellow (ZB5AH05)
Schneider Electric
Schneider Electric Auxiliary contact block, TeSys Deca, 1NO+3NC, front mounting, snap-in terminals LADN13A
Schneider Electric
Schneider Electric Interface and connection Canalis, PrismaSeT P, 4P, 1600A, W650MM, set of 1 LVS04704
Schneider Electric
Cover Plate 72X72 PrismaSeT G/P
LVS03907
Schneider Electric

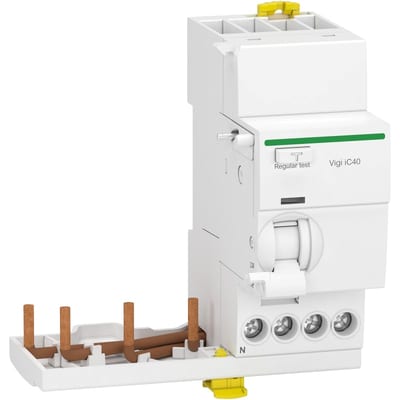

Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 3P+N, 25A, A type, instantaneous, 30MA, 400VAC A9Y80725
