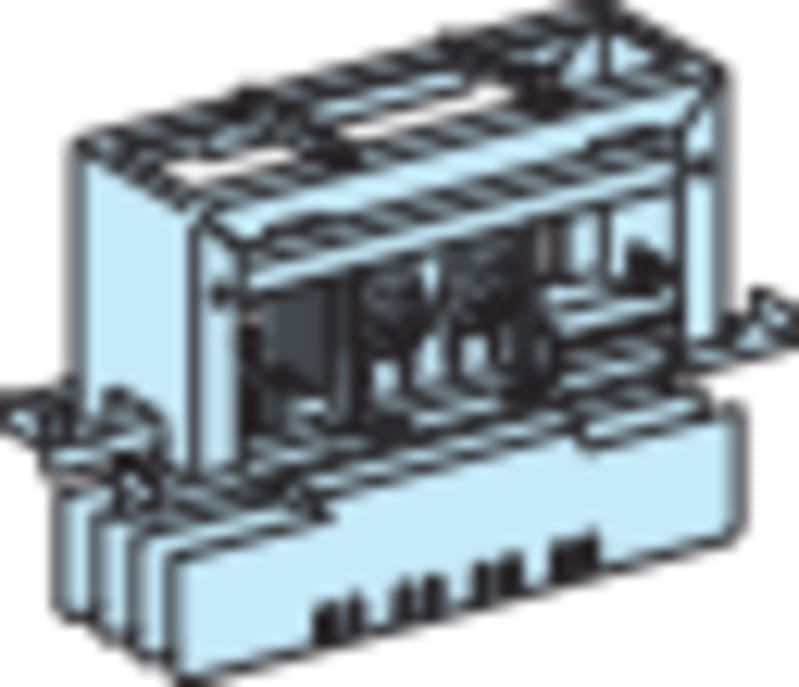

Schneider Electric Interface and connection Canalis, PrismaSeT P, 4P, 1600A, W650MM, set of 1 LVS04704
Part numberLVS04704EAN / GTIN3606481868121HS code8536.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04704 Canalis rail Interface 1600A 4P PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04704
- EAN / GTIN
- 3606481868121
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Rated current
- 1600 A
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Interface and connection Canalis
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Interface accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- KT with Canalis
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 400 mm: front; 400 + 400 mm: rear
- Installed device
- ComPact: drawout NS630b...1000 - control: direct front rotary handle vertical installation; ComPact: drawout NS1250 - control: direct front rotary handle vertical installation; ComPact: drawout NS630b...1000 - control: motor mechanism vertical installation; ComPact: drawout NS1250 - control: motor mechanism vertical installation; ComPact: drawout NS630b...1000 - control: toggle vertical installation; ComPact: drawout NS1250 - control: toggle vertical installation; ComPact: fixed NS630b...1000 - control: toggle vertical installation; ComPact: fixed NS1250 - control: toggle vertical installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle vertical installation; ComPact: fixed NS1250 - control: direct front rotary handle vertical installation; ComPact: fixed NS630b...1000 - control: motor mechanism vertical installation; ComPact: fixed NS1250 - control: motor mechanism vertical installation; ComPact: fixed NS1600 - control: toggle vertical installation; ComPact: fixed NS1600 - control: direct front rotary handle vertical installation; ComPact: fixed NS1600 - control: motor mechanism vertical installation; ComPact: drawout NS1600 - control: direct front rotary handle vertical installation; ComPact: drawout NS1600 - control: motor mechanism vertical installation; ComPact: drawout NS1600 - control: toggle vertical installation; Masterpact: fixed NT06...10 - control: toggle vertical installation; Masterpact: fixed NT06...10 - control: motor mechanism vertical installation; Masterpact: fixed NT12 - control: toggle vertical installation; Masterpact: fixed NT12 - control: motor mechanism vertical installation; Masterpact: fixed NT16 - control: toggle vertical installation; Masterpact: fixed NT16 - control: motor mechanism vertical installation
- [Ie] rated operational current
- 1600 A
- Colour
- Natural
- Height
- 410 mm
- Width
- 600 mm
- Depth
- 285 mm
- Product weight
- 32.42 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 4P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 4P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 4P 1 front connection on Canalis 18; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 4P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 4P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 4P 1 front connection on Canalis 18; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 drawout toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 drawout direct front rotary handle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 drawout motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 4P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 4P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 4P 1 front connection on Canalis 17; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 4P 1 front connection on Canalis 17; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16
- Warranty (in months)
- 18
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868121
- SAP 1200722186
- Code 83838450
Product Documentation
Document preview: Schneider Electric LVS04704 — OEM Product Page
More from Schneider Electric
Schneider Electric
Cover Plate 72X72 PrismaSeT G/P
LVS03907
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 3P+N, 25A, A type, instantaneous, 30MA, 400VAC A9Y80725
Schneider Electric
Schneider Electric TransferPacT Remote, 630A, 400V, 3P, Remote, frame 630A TR63D3R6304TPE
Schneider Electric
Schneider Electric Complete push button, Harmony XB4, Explosive atmosphere, pushbutton yellow with integrated boot XB4BPS51GEX
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, 2000X300X500MM, IP55, RAL9003 NSYSFN20350ED
Schneider Electric
Output Filter dv/dt IP20 20A
VW3A5303
Schneider Electric
Floor-standing cabinet SFN m/m.pl 2200X800X600
NSYSFN22860P
Schneider Electric

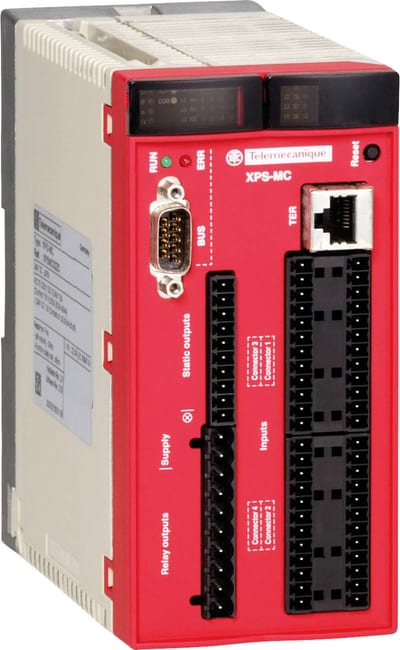

Schneider Electric safety controller XPS-MC - 24 V DC - 32 input - 48 LEDs signalling XPSMC32ZC
