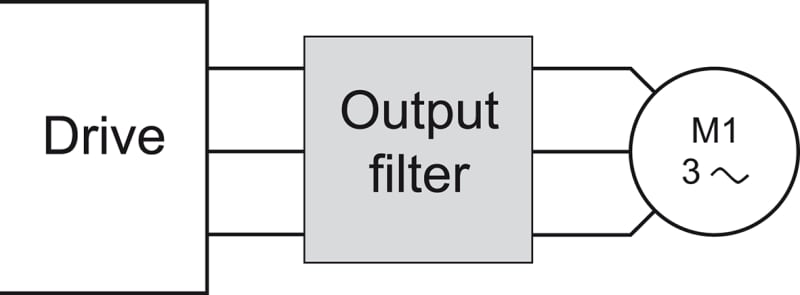

Output Filter dv/dt IP20 20A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A5303 Output Filter dv/dt IP20 20A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5303
- EAN / GTIN
- 3606480736704
- Sales unit
- pcs
- IP rating
- IP20
- Rated current
- 20 A
- Product or component type
- Dv/dt filter
- Range compatibility
- Easy Altivar 610; Altivar Process ATV900; Altivar Process ATV600; Altivar Machine ATV340
- Product specific application
- Output filter
- [In] rated current
- 25 A
- Product compatibility
- ATV630 variable speed drive wall mount - 7.5 kW, 380...480 V; ATV630 variable speed drive wall mount - 11 kW, 380...480 V; ATV630 variable speed drive wall mount - 4 kW, 200...240 V; ATV650 variable speed drive wall mount - 7.5 kW, 380...480 V; ATV650 variable speed drive wall mount - 11 kW, 380...480 V; ATV610 variable speed drive - 7.5 kW, 380...415 V; ATV610 variable speed drive - 11 kW, 380...415 V; ATV610 variable speed drive - 15 kW, 380...415 V; ATV930 variable speed drive wall mount - 7.5 kW, 380...480 V; ATV930 variable speed drive wall mount - 11 kW, 380...480 V; ATV930 variable speed drive wall mount - 4 kW, 200...240 V; ATV950 variable speed drive wall mount - 7.5 kW, 380...480 V; ATV950 variable speed drive wall mount - 11 kW, 380...480 V
- nedded quantity
- 1
- Electrical connection
- Terminal block, connection capacity: 10 mm² / 8 AWG
- Maximum motor cable length
- 500 m unshielded cable; 300 m shielded cable
- dv/dt
- 3000 V/µs max at 200...240 V; 3000 V/µs max at 380...480 V
- Thermal losses
- 49 W at 4 kHz
- maximum drive output frequency
- 100 Hz
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Width
- 295 mm
- Height
- 535 mm
- Depth
- 215 mm
- Product weight
- 12 kg
- IP degree of protection
- IP20; IP21 (with kit VW3A53902)
- Ambient air temperature for storage
- -40…70 °C
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480736704
- SAP 1000708145
- Code 8325135
Product Documentation
More from Schneider Electric
Schneider Electric
Floor-standing cabinet SFN m/m.pl 2200X800X600
NSYSFN22860P
Schneider Electric
Schneider Electric safety controller XPS-MC - 24 V DC - 32 input - 48 LEDs signalling XPSMC32ZC
Schneider Electric
Schneider Electric Rear horizontal connection, MasterPact MTZ2 fixed/drawout, 4P, top connection, 4000A LV848170
Schneider Electric

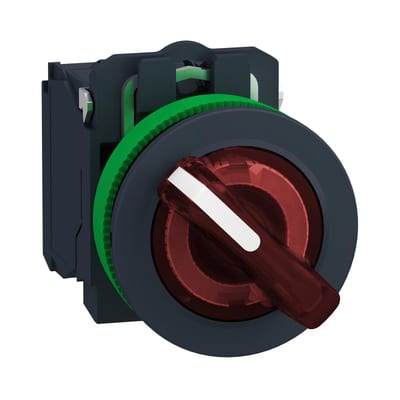

Schneider Electric Illuminated selector switch, Harmony XB5, grey plastic, red handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 230...240V AC XB5FK124M5
Schneider Electric

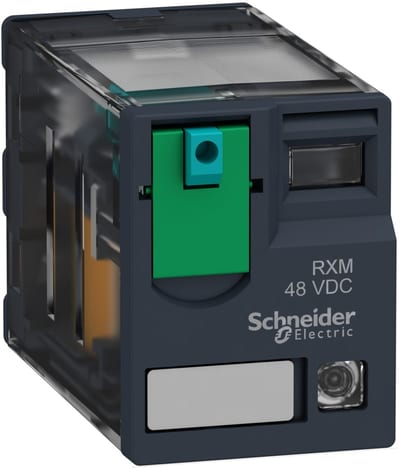

Schneider Electric Miniature plug-in relay, 12 A, 2 CO, LED, 48 V DC RXM2AB2ED
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100M AC/DC, 25KA/415VAC, 2 poles, TMD trip unit 20A C10M2TM020
Schneider Electric

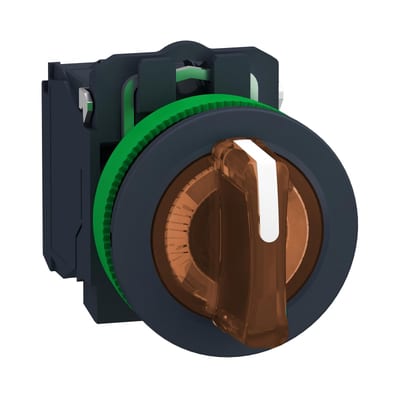

Schneider Electric Illuminated selector switch, Harmony XB5, grey plastic, orange handle, 30mm, universal LED, 3 positions, 1NO + 1NC, 230...240V AC XB5FK135M5
Schneider Electric

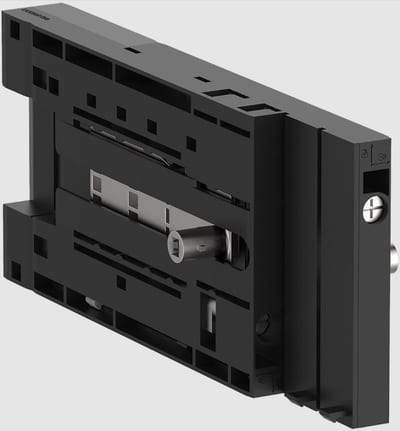

Mechanical interlock (LA9G972)
