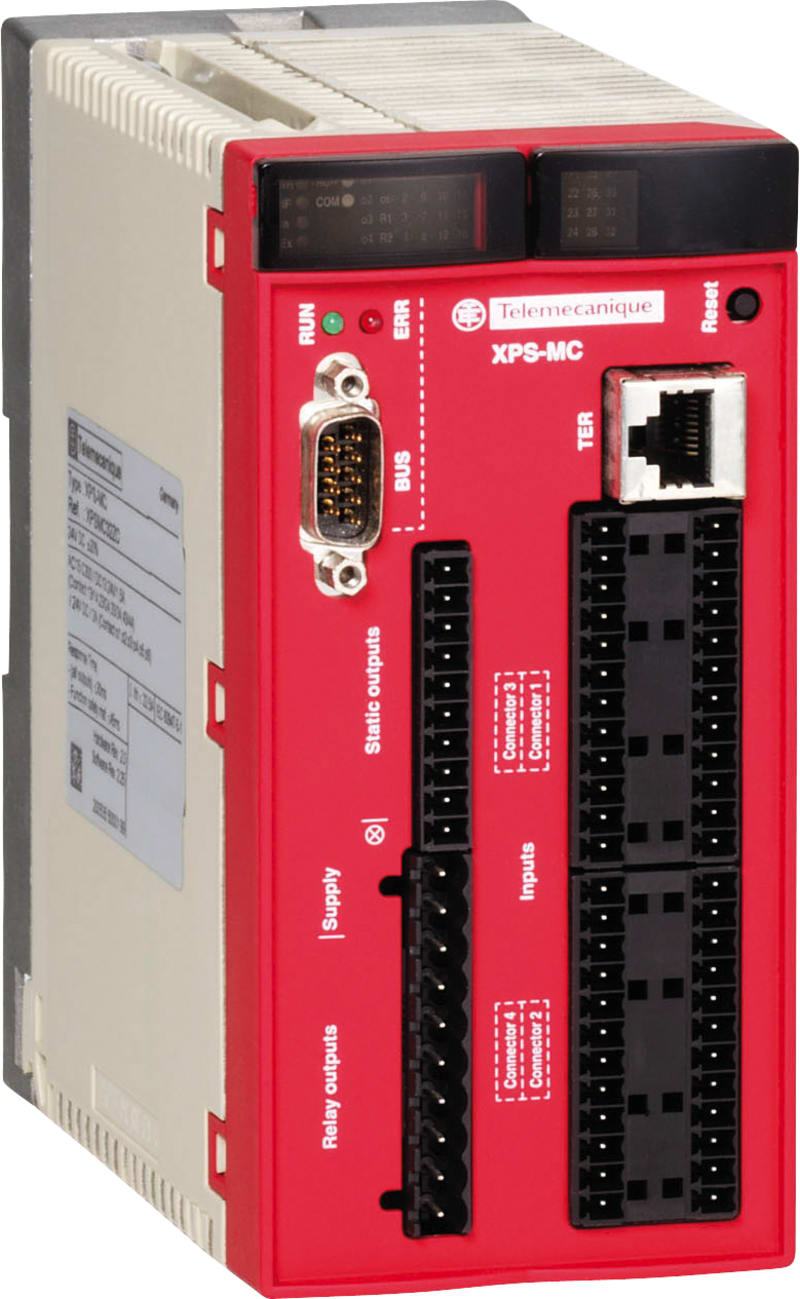

Schneider Electric safety controller XPS-MC - 24 V DC - 32 input - 48 LEDs signalling XPSMC32ZC

Schneider Electric XPSMC32ZC Controller 32in Modbus CAN.

Manufacturer part number (MPN)

XPSMC32ZC EAN / GTIN: 3389119010283 Sales unit: pcs Package quantity: 6 pcs Range of product: Preventa Safety automation Product or component type: Configurable safety controller Safety module name: XPSMC Safety use category: Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1; PLE maximum conforming to ISO 13849-1; SIL 3 maximum conforming to IEC 61508 Type of start: Configurable Standards: IEC 60947-5-1; EN 574/ISO 13851; EN 1760-1/ISO 13856-1; IEC 61496-1; IEC 61508; EN 954-1/EN/ISO 13849-1; IEC 60204-1 Product certifications: UL; TÜV; CSA [Us] rated supply voltage: 24 V DC - 20...20 % Number of inputs: 32 Communication port protocol: CANopen with 1 SUB-D 9-pin male port(s), serial link, transmission rate: 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps or 1 Mbps; Modbus with 1 RJ45 port(s), serial link, transmission rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps Safety level: Can reach PL e/category 4 conforming to EN 954-1/EN/ISO 13849-1; Can reach SIL 3 conforming to IEC 61508 Function of module: Emergency stop monitoring, with or without time delay, 1 or 2-channel wiring; Enabling switch monitoring, 2 or 3 contacts; Foot switch monitoring; Guard monitoring with 1 or 2 limit switches; Magnetic switch monitoring category 4 conforming to EN/IEC 61496; Muting function of light curtains; Position selector; Safety mat monitoring; Safety time delays; Shaft/chain breaking monitor; Zero speed detection; Light curtain monitoring category 4 conforming to IEC 61496; Two-hand control category 3 conforming to EN 574/ISO 13851 Synchronisation time between inputs: Depending on configuration selected Power consumption in W: 12 W Input protection type: External fuse 16 A [Uc] control circuit voltage: 28.8 V Maximum line resistance: 100 Ohm <2000 m Output type: 2 relays, 2 NO contacts (4 NO total) circuit(s); Solid state, 6 circuit(s), volt-free Breaking capacity: 180 VA holding AC-15 C300 relay output; 1800 VA inrush AC-15 C300 relay output Output thermal current: 4 A for both outputs simultaneously; 6 A for 1 output and 2 A for the other for relay output [Ith] conventional free air thermal current: 16 A for relay output; 6.5 A for static output circuit Associated fuse rating: 16 A gL for power supply; 4 A gL for relay output; 6 A fast blow for relay output minimum output current: 10 mA for relay output minimum output voltage: 17 V for relay output Response time: Configurable : 20 ms or 30 ms with software XPSMCWIN [Ui] rated insulation voltage: 300 V (pollution degree 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1 [Uimp] rated impulse withstand voltage: 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1 Method of access: Slave Exchange size: 14 words Number of addresses: 1…127 for CANopen; 1…247 for Modbus Parity: Even for Modbus; No for Modbus; Odd for Modbus Data format: 1 start bit/8 data bits; 1 stop bit even or odd; 2 stop bits without parity; RTU (Remote Terminal Unit) mode Supported modbus function: 01: 8-bit output data/32-bit input data; 02: 32-bit input data/8-bit output data; 03: information and errors Local signalling: 48 LEDs Mounting support: Mounting plate Depth: 153 mm Height: 151.5 mm Width: 74 mm Product weight: 0.84 kg IP degree of protection: IP20 conforming to IEC 60529 Ambient air temperature for operation: -10…55 °C Ambient air temperature for storage: -25…85 °C Number of Units in Package 1: 1 Number of Units in Package 2: 6 Warranty (in months): 18 Power consumption: 1.1 W Rated switch current: 1.1 A Voltage type (operating voltage): DC Type of control voltage 1: DC Type of control voltage 2: DC Model: Basic device Suitable for monitoring of position switches: Yes Suitable for monitoring of emergency-stop circuits: Yes Suitable for monitoring of valves: Yes Suitable for monitoring of tactile sensors: Yes Suitable for monitoring of magnetic switches: Yes Suitable for monitoring of proximity switches: Yes Type of electric connection: Spring clamp connection Suitable for rail mounting: Yes Voltage type for actuating: AC/DC With detachable clamps: No With start input: Yes With muting function: Yes With feedback circuit: Yes Number of outputs, safety related, undelayed, semiconductors: 6 Type of safety according to IEC 61496-1: 1 Stop category according to IEC 60204: 0 + 1 Performance level according to EN ISO 13849-1: Level e SIL according to IEC 61508: 3 With approval for BG BIA: No With approval according to UL: Yes Country of origin: France

HS Code

8537.10

• EAN 3389119010283
• SAP 1000473835
• Code 8963734
