C40 RES.Plug for IPRD40 350V

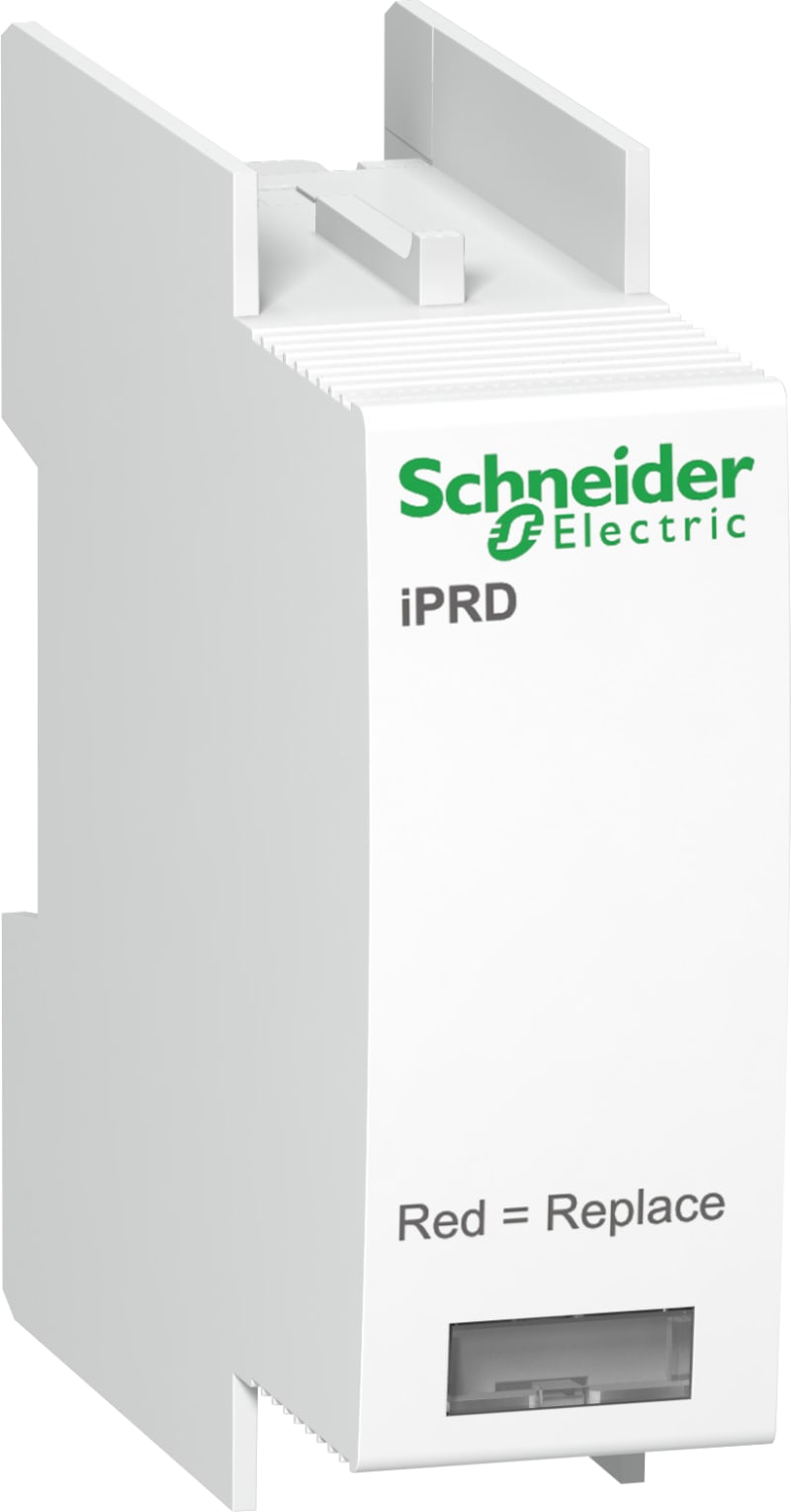

Schneider Electric A9L40102 Acti9 C40 Spare Plug for iPRD40 350V.

Manufacturer part number (MPN)

A9L40102

EAN / GTIN

3606480506604

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Product or component type

Cartridge

Device short name

C40-350

Range compatibility

Acti9 iPRD40r; Acti9 iPRD40

Surge arrester type

Electrical distribution network

Standards

EN 61643-11; IEC 61643-11: 2011

Quality labels

CE

Surge arrester class type

Type 2

Surge arrester technology

MOV

Product destination

Surge protection device iPRD40r 1P; Surge protection device iPRD40r 1P + N; Surge protection device iPRD40r 2P; Surge protection device iPRD40r 3P; Surge protection device iPRD40r 3P + N; Surge protection device iPRD40r 4P; Surge protection device iPRD40 1P; Surge protection device iPRD40 1P + N; Surge protection device iPRD40 2P; Surge protection device iPRD40 3P; Surge protection device iPRD40 3P + N; Surge protection device iPRD40 4P

Earthing system

TN; TT

[Ue] rated operational voltage

230 V AC 50 Hz

Nominal discharge current

15 kA

Maximum discharge current

40 kA

[Uc] maximum continuous operating voltage

350 V

Maximum [Up] voltage protection level

1.4 kV type 2

Local signalling

Flag (white/red)

mounting mode

Plug-in

Mounting support

Into SPD module

9 mm pitches

2

Height

57 mm

Width

18 mm

Depth

56 mm

Product weight

0.051 kg

Colour

White (RAL 9003)

Material

PBT (polybutylene terephthalate)

Response time

< 25 ns

IP degree of protection

IP20 front face:

Relative humidity

5…90 %

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

108

Country of origin

CN

Warranty (in months)

18

System configuration DC

No

System configuration IT

No

System configuration TN

Yes

System configuration TN-C

No

System configuration TT

Yes

System configuration other

No

Nominal discharge surge current (8/20)

15 kA

Max. discharge surge current (8/20)

40 kA

Short-circuit-proof

Yes

Nominal voltage AC

230 V

Max. continuous voltage AC

350 V

Max. PV-voltage

400 V

Voltage protection level

1.6 kV

Voltage protection level L-N

1.6 kV

Integrated short-circuit protection

No

Integrated backup fuse

No

Leakage-current free

No

Mounting method

On basic element

Construction size

1 modular spacing

Max. conductor cross section solid (solid, stranded)

25 mm²

Max. conductor cross section flexible (fine-strand)

16 mm²

With remote signalling contact

No

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

HS Code

8536.30
