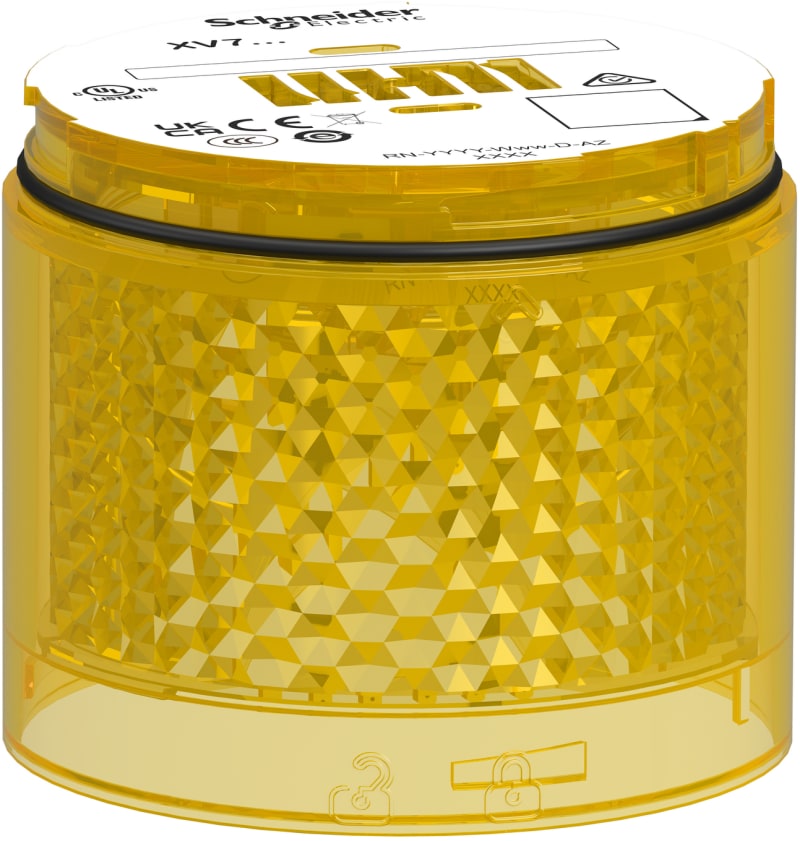

Light Unit with blinkende LED in yellow

Schneider Electric XVB7C58 Light Unit for XVB7 lyskolonne in Ø70 mm in yellow with LED where blinker.

Manufacturer part number (MPN)

XVB7C58

EAN / GTIN

3606487129400

Sales unit

pcs

Package quantity

60 pcs

Range of product

Harmony XVB7

Product or component type

Light module

Device composition

Standard lens

Device short name

XVB7

Mounting diameter

70 mm

Signalling type

Blinking

Light color

LED, yellow

Material

PC (polycarbonate)

Product weight

0.105 kg

Mounting position

Upright/inverted

Blinking frequency

1 Hz

Service life in hours

50000 h

[Ue] rated operational voltage

24 V AC/DC

Rated operational voltage limits

21.6...26.4 V AC/DC

Current consumption

40 mA at 24 V AC; 45 mA at 24 V DC

Inrush current

0.5 A

Electrical shock protection class

Class II

[Ui] rated insulation voltage

50 V

[Uimp] rated impulse withstand voltage

0.5 kV

Pollution degree

2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP66

Environmental Type ratings

UL type 4X/13

Vibration resistance

6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation

Shock resistance

30 gn (duration = 6 ms) for in operation

Standards

UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1

Product certifications

cULus; CCC; RCM; UKCA; CE

Number of Units in Package 1

1

Number of Units in Package 2

60

Country of origin

DE

Warranty (in months)

18

Colour

Yellow

Outer diameter

70 mm

Function

Blinker light

Voltage type

AC/DC

Lamp type

LED

Degree of protection (IP)

IP66

Repetition frequency settable

No

HS Code

8531.80
