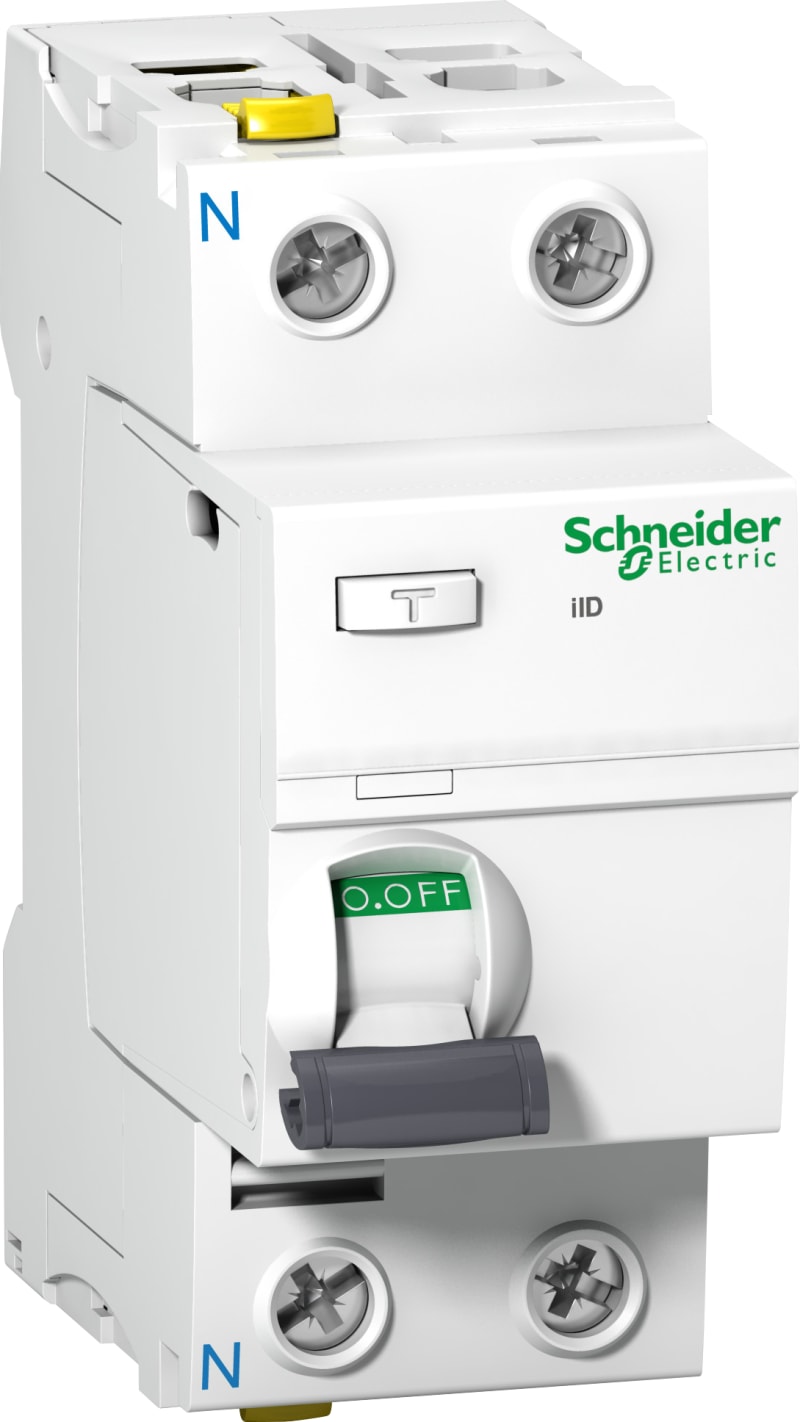

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 2P, 40A, A type, 100MA, double terminal A9Z22240

Schneider Electric A9Z22240 Residual current module Vigi iC60 4P 63A 300mA A.

Manufacturer part number (MPN)

A9Z22240

EAN / GTIN

3606480443022

Sales unit

pcs

Package quantity

6 pcs

Rated current

40 A

Number of poles

2P

Range

Acti9

Product name

Acti9 iID

Product or component type

Residual current circuit breaker (RCCB)

Device short name

iID

Poles description

2P

Neutral position

Left

[In] rated current

40 A

Network type

AC

Earth-leakage sensitivity

100 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Network frequency

50/60 Hz

[Ue] rated operational voltage

230...240 V AC 50/60 Hz

Residual current tripping technology

Voltage independent

Rated breaking and making capacity

Idm 1500 A; Im 1500 A

Rated conditional short-circuit current

10 kA

[Ui] rated insulation voltage

500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

Contact position indicator

Yes

Control type

Toggle

mounting mode

Clip-on

Mounting support

35 mm DIN rail

9 mm pitches

4

Height

91 mm

Width

36 mm

Depth

73 mm

Product weight

210 g

Colour

White (RAL 9003)

Mechanical durability

20000 cycles

Electrical durability

15000 cycles

Locking options description

Padlocking device

Connections - terminals

Double terminal front 1…35 mm² rigid; Double terminal front 1…25 mm² flexible; Double terminal front 1…25 mm² flexible with ferrule; Double terminal back 1…25 mm² rigid; Double terminal back 1…16 mm² flexible; Double terminal back 1…16 mm² flexible with ferrule

Wire stripping length

14 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

Standards

EN/IEC 61008-1; EN/IEC 61008-2-1

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Mounting method

DIN rail

Voltage type

AC

Built-in depth

44 mm

Rated voltage

230 V

Rated insulation voltage Ui

500 V

Rated fault current

0.1 A

Leakage current type

A

Selective protection

No

Short-circuit breaking capacity (Icw)

1.5 kA

Surge current capacity

0.25 kA

Width in number of modular spacings

2

Short-time delayed tripping

No

RAL-number (similar)

9003

Explosion-proof

No

Power loss

3.8 W

Frequency

50/60 Hz

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

1–35 mm²

Connectable conductor cross section multi-wired

1–25 mm²

With interlocking device

Yes

Ambient temperature during operating

-25–60 °C

Additional equipment possible

Yes

Device width

36 mm

Device height

91 mm

Device depth

73 mm

Rated impulse withstand voltage Uimp

6 kV

Country of origin

Spain

HS Code

8536.20
