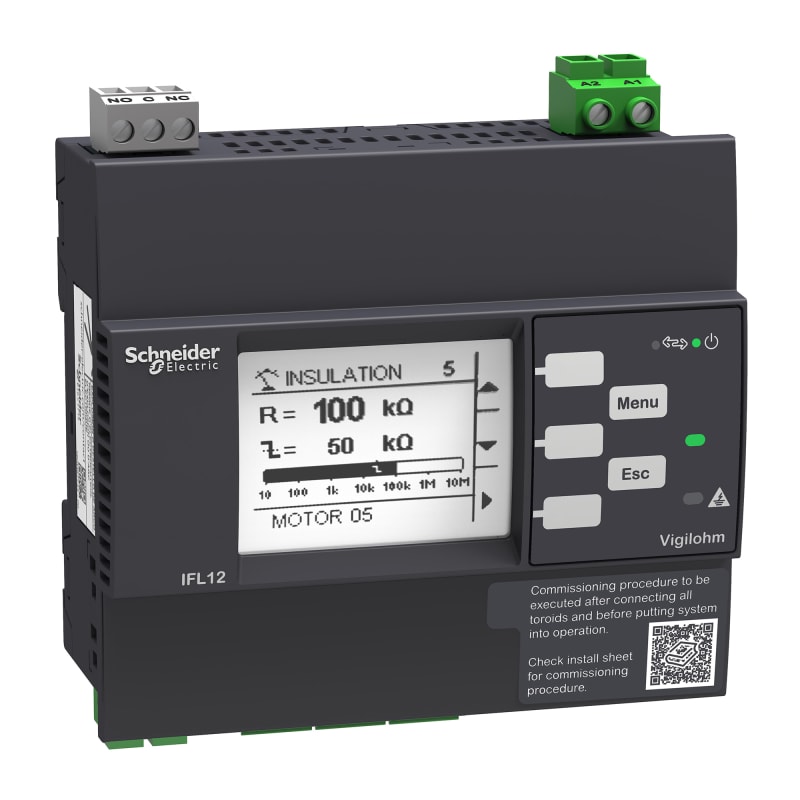

Vigil 12CH ADV LOC MB 110-440VAC/DC

Schneider Electric IMDIFL12MC Vigilohm locator advanced, 12 channels, 110-440VAC auxiliary voltage, Modbus.

Manufacturer part number (MPN)

IMDIFL12MC

EAN / GTIN

3606489504878

Sales unit

pcs

Package quantity

8 pcs

Voltage

110-440 V AC

Range

Vigilohm

Device short name

IFL12MC

Product or component type

Insulation fault locator

Earthing system

IT; HRG

Application

Marine and offshore; Industry; Infrastructure; Power generation; Port, airport, railway

Network size

Large

Electrical circuit type

Power circuit; Control/command circuit

Network capacitance

Capacitive

Type of network

1P + N; 3P; 3P + N

Network rated voltage

0…480 V - AC at 45...440 Hz (device connected to phase) ; 0…830 V - AC at 45...440 Hz (device connected to neutral) ; 480…1000 V - AC at 45...440 Hz (device connected to phase with PHT1000 subassembly) ; 830…1000 V - AC at 45...440 Hz (device connected to neutral with PHT1000 subassembly) ; 0…480 V - DC; 480…1000 V - DC (device connected with PHT1000)

Number of channels

12

Alarm threshold setting

Alarm: 200 Ohm...200 kOhm

Type of measurement

History of alarms; Network insulation resistance, range: 200 Ohm...250 kOhm; Earth leakage capacitance, range: 0.1...15 µF

Accuracy

+/- 15 %

Channel alarm threshold setting

Alarm threshold: settable per feeder

Configurable filtering time

5 s; 40 s; 400 s

Response time

1 s 1/5th of set filtering time; 8 s 1/5th of set filtering time; 80 s 1/5th of set filtering time

Time delay range

0...120 min for signalling circuit

Power quality analysis

Transient capture

Monitoring function

Detection of toroids connection automatic; Detection of toroids connection manual mode; Detection of IM400 injection current permanent

Self-test

Auto test at start and every 5h; Remote test; Manual

Overvoltage category

III 300 V; II 600 V

IP degree of protection

Case: IP20; Front face: IP54

Material

Thermoplastic

Type of installation

Indoor

Operating altitude

<= 3000 m

Relative humidity

5…92 %

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Pollution degree

2

Mounting mode

Flush-mounted (panel); Clip-on (DIN rail)

Mounting position

Vertical; Horizontal

Connections - terminals

Power supply: removable screw terminal block 0.2…2.5 mm²; Output relay: removable screw terminal block 0.2…2.5 mm²; Toroids inputs: removable screw terminal block 0.2…1.5 mm²; Communication: removable screw terminal block 0.2…2.5 mm²; Voltage inputs: removable screw terminal block 0.2…2.5 mm²

Product weight

0.305 kg

Cut-out dimensions

92 x 104 mm

Height

110 mm

Width

108 mm

Depth

59 mm

Display type

LCD display

Information displayed

Resistance value; Capacitance value; Evolution of resistance in graph

User language

Spanish; German; Italian; Russian; French; Chinese; English; Portuguese

Local signalling

Yellow indicator light: insulation fault; Yellow flashing indicator light: communication; Green/red indicator light: product status; Green indicator light: satisfactory insulation; LCD display: transient fault

Signal contacts composition

1 C/O standard or fail-safe

Signalling circuit voltage

250 V - AC at 6 A; 48 V - DC at 1 A

Communication port protocol

Modbus RS485

Fault event log

Alarm logs

[Us] rated supply voltage

100...300 V (LN) AC 50/60 Hz tolerance: +/- 15 %; 100...440 V AC 50/60 Hz tolerance: +/- 15 %; 80…120 V (LN) AC 400 Hz tolerance: +/- 15 %; 100...440 V DC tolerance: +/- 15 %

Power consumption in VA

26 VA

Power consumption in W

10 W

Overcurrent protection

1 A

Standards

IEC 60364-4-41; IEC 61010-1; IEC 60364-5-51; IEC 61557-9; IEC 61557-15; IEC 61326-2-4; UL 61010-1

Product certifications

CE; DNV-GL; EAC; UL; cULus

Environmental characteristic

Exposure to damp heat not in service conforming to IEC 60068-2-30; Exposure to damp heat in service conforming to IEC 60068-2-56; Salt mist conforming to IEC 60068-2-52; Long-term storage class 1K22 conforming to IEC 60721-3-1; Transport class 2K11 conforming to IEC 60721-3-2; Stationary use at weather protected locations class 3K24 conforming to IEC 60721-3-3

Mechanical robustness

Long-term storage class 1M11 conforming to IEC 60721-3-1; Transport class 2M4 conforming to IEC 60721-3-2; Stationary use class 3M11 conforming to IEC 60721-3-3

Number of Units in Package 1

1

Number of Units in Package 2

8

Country of origin

IN

Warranty (in months)

18

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

100–440 V

Rated control supply voltage AC 60 Hz

100–440 V

Rated control supply voltage DC

100–440 V

Voltage type for actuating

AC

With detachable clamps

Yes

Function

For mixed system

Rated voltage

0–480 V

Rated frequency

45–440 Hz

Line capacity

150 µF

Response value impedance 1

0.2–200 kOhm

Indication of insulation value

Yes

Error registration possible

Yes

Number of contacts as change-over contact

1

HS Code

9030.33
