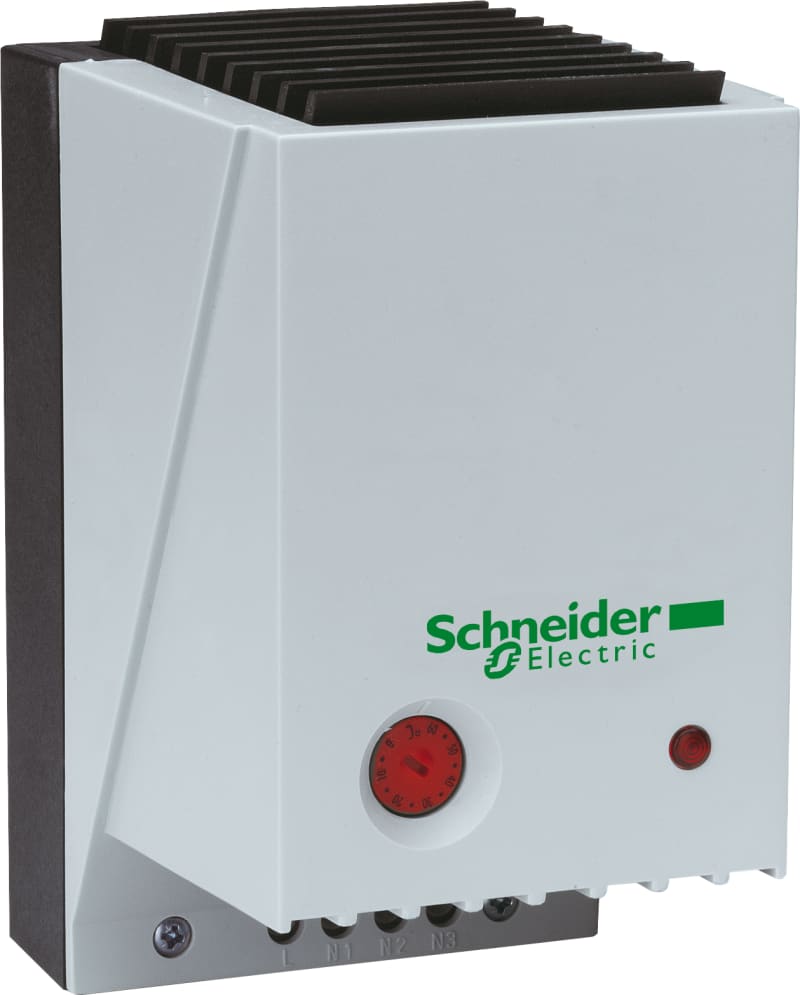

Schneider Electric ClimaSys PTC heating resistance 350-550W, 120V insulate thermoventilator NSYCRP1W120VTVC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCRP1W120VTVC HEATING ELEMENT 350-550w 120V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCRP1W120VTVC
- EAN / GTIN
- 3606480152375
- Sales unit
- pcs
- Voltage
- 120 V
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater with fan and thermostat
- Power range
- 400...550 W
- Input voltage
- 120 V AC 50/60 Hz
- Electrical connection
- 2 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- Temperature setting range
- 0…60 °C
- IP degree of protection
- IP20
- Product certifications
- UL; VDE
- Height
- 220 mm
- Width
- 150 mm
- Depth
- 150 mm
- Condition of use
- Electrical protection is needed; Heaters must be installed with a thermal controller; Air sealed enclosure
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 80
- Country of origin
- FR
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- Yes
- With fan
- Yes
- Degree of protection (IP)
- IP20
- Rated power
- 550 W
- Operating voltage AC 50 Hz
- 120 V
- Operating voltage AC 60 Hz
- 120 V
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152375
- SAP 1000470033
- Code 8579529
