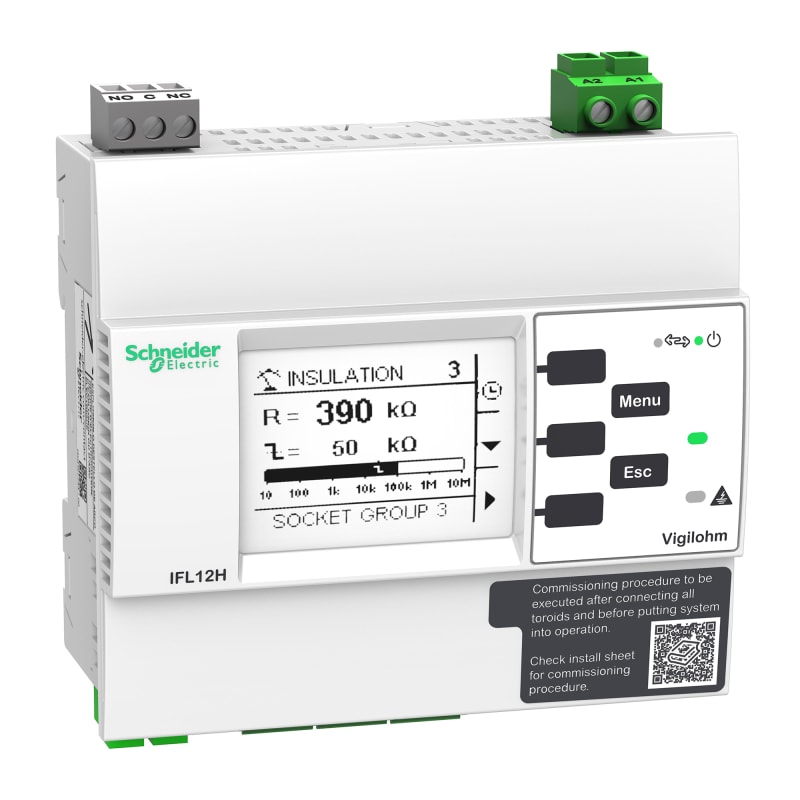

Vigilohm 12CH. Locator Modbus HOSP.

Schneider Electric IMDIFL12H Vigilohm locator for sykehus 12 channels, 110-440VAC auxiliary voltage, Modbus.

Manufacturer part number (MPN)

IMDIFL12H

EAN / GTIN

3606489504854

Sales unit

pcs

Package quantity

8 pcs

Range

Vigilohm

Device short name

IFL12H

Product or component type

Insulation fault locator

Earthing system

IT

Application

Group II medical premise; Healthcare

Network capacitance

Lightly capacitive

Type of network

1P + N

Network rated voltage

0…230 V - DC; 0…230 V - AC at 45...65 Hz

Number of channels

12

Alarm threshold setting

Alarm: 50...200 kOhm

Type of measurement

Network insulation resistance, range: 200 Ohm...250 kOhm, accuracy: +/- 15 %

Accuracy

+/- 15 %

Channel alarm threshold setting

Alarm threshold: settable per feeder

Configurable filtering time

5 s

Response time

1 s 1/5th of set filtering time

Power quality analysis

Transient capture

Monitoring function

Detection of toroids connection automatic; Detection of toroids connection manual mode; Detection of IM400 injection current permanent

Self-test

Remote test; Manual; Auto test at start and every 5h

Overvoltage category

III

IP degree of protection

Case: IP20; Front face: IP54

Material

Thermoplastic

Type of installation

Indoor

Operating altitude

<= 3000 m

Relative humidity

5…92 %

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…85 °C

Pollution degree

2

Mounting mode

Clip-on (DIN rail); Flush-mounted (panel)

Mounting position

Horizontal; Vertical

Connections - terminals

Power supply: removable screw terminal block 0.2…2.5 mm²; Output relay: removable screw terminal block 0.2…2.5 mm²; Toroids inputs: removable screw terminal block 0.2…1.5 mm²; Communication: removable screw terminal block 0.2…2.5 mm²; Voltage inputs: removable screw terminal block 0.2…2.5 mm²

Product weight

0.28 kg

Cut-out dimensions

92 x 104 mm

Height

110 mm

Width

108 mm

Depth

59 mm

Display type

LCD display

Information displayed

Resistance value

User language

French; German; Italian; Portuguese; Russian; Spanish; English; Chinese

Local signalling

Yellow indicator light: insulation fault; Yellow flashing indicator light: communication; Green/red indicator light: product status; Green indicator light: satisfactory insulation; Yellow flashing indicator light: transient fault

Signal contacts composition

1 C/O standard or fail-safe

Signalling circuit voltage

250 V - AC at 6 A; 48 V - DC at 1 A

Communication port protocol

Modbus RS485

Fault event log

Alarm logs

[Us] rated supply voltage

110...230 V AC 50/60 Hz tolerance: +/- 15 %; 125...250 V DC tolerance: +/- 15 %

Power consumption in VA

25 VA

Power consumption in W

10 W

Overcurrent protection

1 A

Standards

IEC 61010-1; IEC 60364-7-710; IEC 61326-2-4; IEC 61557-9; IEC 61557-15; UL 61010-1

Product certifications

DNV-GL; EAC; CE; UL; cULus

Environmental characteristic

Exposure to damp heat not in service conforming to IEC 60068-2-30; Exposure to damp heat in service conforming to IEC 60068-2-56; Salt mist conforming to IEC 60068-2-52; Long-term storage class 1K22 conforming to IEC 60721-3-1; Transport class 2K11 conforming to IEC 60721-3-2; Stationary use at weather protected locations class 3K24 conforming to IEC 60721-3-3

Mechanical robustness

Long-term storage class 1M11 conforming to IEC 60721-3-1; Transport class 2M4 conforming to IEC 60721-3-2; Stationary use class 3M11 conforming to IEC 60721-3-3

Number of Units in Package 1

1

Number of Units in Package 2

8

Warranty (in months)

18

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

110–230 V

Rated control supply voltage AC 60 Hz

110–230 V

Rated control supply voltage DC

125–250 V

Voltage type for actuating

AC

With detachable clamps

Yes

Function

For mixed system

Rated voltage

0–230 V

Rated frequency

45–65 Hz

Response value impedance 1

50–200 kOhm

Indication of insulation value

Yes

Error registration possible

Yes

Number of contacts as change-over contact

1

Country of origin

India

HS Code

9030.33
