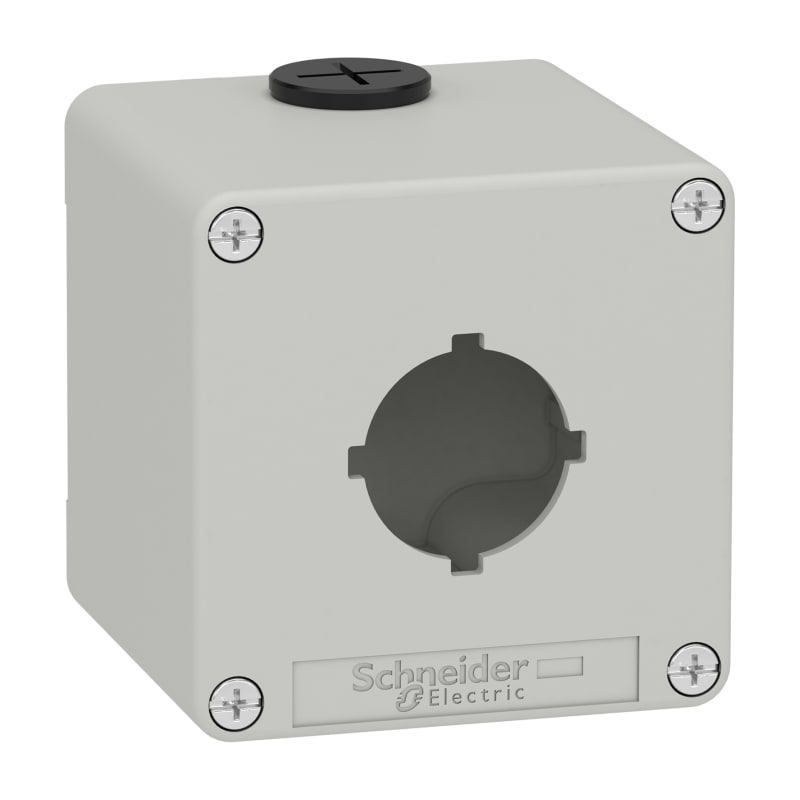

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 1 cut-out 30mm with notches, 80 x 80 x 77, UL cULus XAPD1601

Schneider Electric XAPD1601 Push-Button Station empty in light grey metal with 1 x Ø30 mm hole and 2 x M20 cable glands 80 x 80 x 77 mm.

Manufacturer part number (MPN)

XAPD1601

EAN / GTIN

3389110001051

Sales unit

pcs

Package quantity

12 pcs

Diameter

30 mm

Range of product

Harmony XAP

Product or component type

Die-cast empty control station

Device short name

XAPD

Product destination

For Ø 30 mm control and signalling units

Product front plate size

80 x 80 mm

Usable depth

74.5 mm

Number of cut-out

1 cut-out

Colour of base of enclosure

Grey (RAL 7035)

Colour of cover

Grey (RAL 7035)

Material

Die cast zinc

Sale per indivisible quantity

1

IP degree of protection

IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Number of vertical rows

1

Number of horizontal rows

1

Cut-out dimensions

Ø 30 mm

Control station type

Metal

Cable entry

2 x cable gland conforming to ISO

Thread type

M20 x 1.5

CAD overall width

80 mm

CAD overall height

80 mm

CAD overall depth

77 mm

Product weight

0.605 kg

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 61140

Degree of protection

UL type 4 conforming to UL 50 E; UL type 4X conforming to UL 50 E

IK degree of protection

IK07 conforming to IEC 62262

Resistance to chemical agents

Special treatment can be obtained on request

Product certifications

UL; cULus; EAC

Number of Units in Package 1

1

Number of Units in Package 2

12

Country of origin

MA

Warranty (in months)

18

Width

80 mm

Height

80 mm

Depth

77 mm

Diameter openings

30.5 mm

Number of command positions

1

Colour housing cover

Grey

Housing material

Zinc

Construction type housing

Surface mounted housing

HS Code

7907.00

• EAN 3389110001051
• SAP 1200565683
• Code 82952810
