Motor mekanisme ARA iID 2P

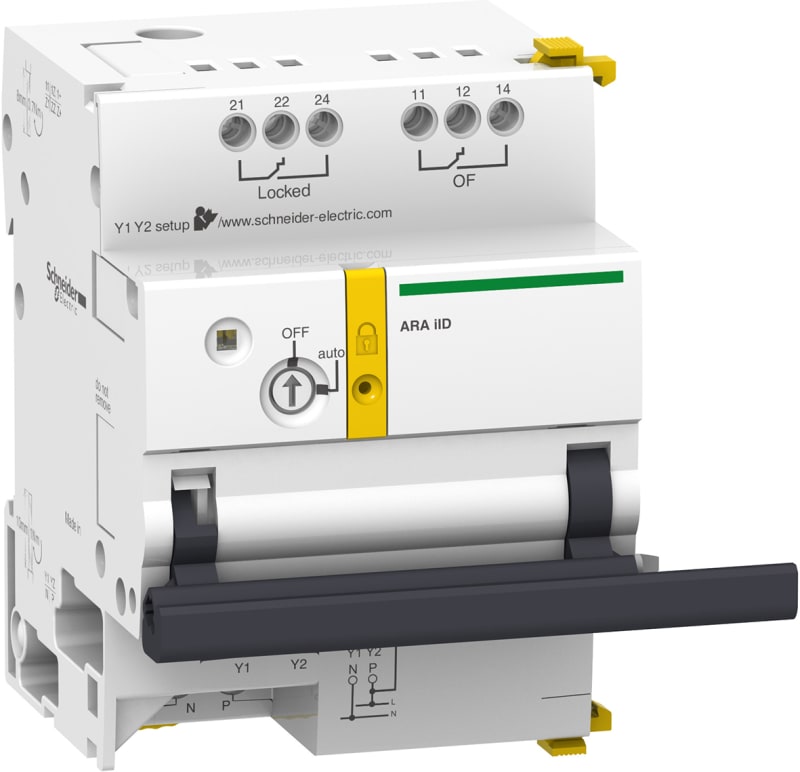

Schneider Electric A9C70342 Motor mekanisme ARA for iID 2P.

Manufacturer part number (MPN)

A9C70342

EAN / GTIN

3606480098024

Sales unit

pcs

Package quantity

14 pcs

Number of poles

2P

range of product

Acti9

Product or component type

Automatic recloser auxiliary

Device short name

ARA iID

Signal contacts composition

2 OF volt-free contacts

Signalling circuit voltage

24 V 10 mA AC/DC; 230 V 1 A AC

Control type

Inhibition of automatism maintained 230 V AC 50/60 Hz; Ultimate reclosing impulse 230 V AC 50/60 Hz

Input current

5 mA

Impulse duration

>= 200 ms control circuit

Response time

< 500 ms

[Us] rated supply voltage

230 V AC 50/60 Hz

Power consumption in W

2 W

[Ui] rated insulation voltage

400 V

[Uimp] rated impulse withstand voltage

6 kV

Value of setting

Program 1: 15 reclosing attemps, long fixed cycle

Local signalling

Flashing orange LED: not operational; Flashing green LED: normal operation; Flashing red LED: reclosing cycle in progress; Fixed red LED: automatic recloser locked

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

NO

9 mm pitches

7

Height

93 mm

Width

63 mm

Depth

75.5 mm

Product weight

440 g

Colour

White

Electrical durability

5000 cycles

Provision for padlocking

Padlockable

Wire stripping length

Power supply: 10 mm for bottom connection; Input: 10 mm for bottom connection; Output: 8 mm for top connection

Tightening torque

Power supply: 1 N.m; Input: 1 N.m; Output: 0.7 N.m

Range compatibility

Acti9 iID residual current circuit breaker (RCCB)

Product compatibility

2P iID

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947

Overvoltage category

II

Tropicalisation

2

Relative humidity

93 % at 40 °C

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

14

Warranty (in months)

18

Function

Remote turn-on switch

Voltage type

AC

Rated voltage

230 V

Installed at the factory

No

Width in number of modular spacings

3.5

Rated switch current

1 A

Device fitting

Earth leakage circuit breaker

Additional equipment

Remote turn-on switch

Voltage type for actuating

AC

Number of contacts as normally closed contact

2

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Suitable for max. current main contact unit

100 A

Country of origin

Spain

HS Code

8537.10

• EAN 3606480098024
• SAP 1000520379
• Code 8635587
